Product Specifications
| Main Specifications | Unit | MKC7132×40/2L | MKC7163×60/2L |
| Size of table working surface (W×L) | mm | 320×4000 | 630×6000 |
| Max.size of workpiece to be ground (W×L×H) | mm | 320×4000×400 | 630×6000×400 |
| Longitudinal movement stroke of workpiece | mm | 300～4250 | 300～6250 |
| Distance spindle centre to table | mm | 225～625 | |
| Table longitudinal moving speed (Stepless) | m/min | 3～28 | |
| Max.Allowable weight of workpiece | kg | 2000 | 4000 |
| Motor power of grinding-head | KW | 11 | |
| Wheel size (0.D×W×1.D) | mm | φ450×50(~75)×φ203 | |
| Wheel speed | r/min | 1460 | |
| Vertical movement distance | mm | 410 | |
| Vertical rapid lifting speed | mm/min | 300 | |
| Min.vertical feed | mm | 0.005 | |
| Lateral movement distance | mm | 360 | 670 |
| Lateral feed Continuous Intermittent | m/min mm | 0.1～2 1～15 | |
| Electrical equipment total capacity | kVA | 25 | 35 |
| Overall dimensions (L×W×H) | mm | 11000×2900×2200 | 16500×3200×2200 |
| Workpiece thickness | mm | 0.005/300 | |
| Surface roughness | μm | ≤Ra0.08 | |
| NW | kg | 11000 | 17500 |
Machine Features
1: Adopting the column moving structure type, with stable machine accuracy
2: The spindle adopts liquid hydrostatic bearing, with good rigidity and high rotary accuracy
3: Electrical control adopts Siemens 808DA digital control system (Taiwan New Generation and Fanuc systems are optional)
4: It can be equipped with additional diamond roller on the table to improve the efficiency of grinding wheel forming and dressing.

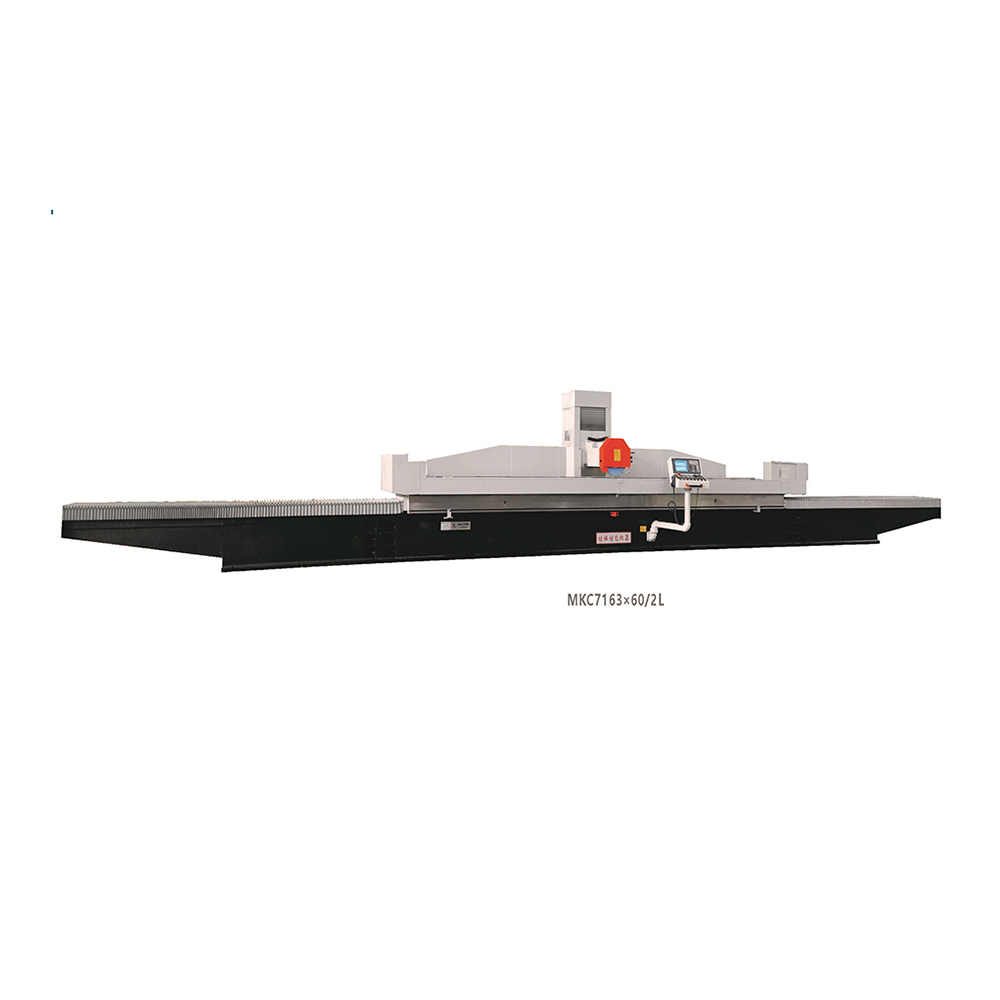

Products Pictures
