Product Specifications
| Main Specifications | Unit | MKC7132/2 MKC7132/3 | MKC7140/2 MKC7140/3 | |
| Size oftable working surface(W×L) | mm | 320×1000 | 400×1000 | |
| Max.size of workpiece to be ground (W×L×H) | mm | 320×1000×400 | 400×1000×400 | |
| Longitudinal movement stroke of workpiece | mm | 100～1150 | ||
| Distance spindle centre to table | mm | 200～610 | ||
| Table longitudinal movingspeed (Stepless) | m/min | 3~25(MKC71**12) | ||
| Max.Allowable weight of workpiece | kg | 500 | 624 | |
| Motor power | KW | 7.5 | ||
| Wheel size (0.D×W×1.D) | mm | φ400×50×φ203 | ||
| Wheel speed | r/min | 1460 | ||
| Vertical movement distance | mm | 410 | ||
| Vertical rapid liftingspeed | mm/min | 300 | ||
| Min.vertical feed | mn | 0.005 | ||
| Lateral movement distance | mm | 360 | 430 | |
| Lateral feed Continuous Intermittent | m/min mm | 0.1～2 1～15 | ||
| Electrical equipmenttotal capacity | kVA | 14 | ||
| Overall dimensions(L×W×H) | mm | 5200×2100×2450 | ||
| Working Accuracy | Workpiece thickness | mm | 0.005/300 | |
| Surface roughness | um | ≤Ra0.8 | ||
| N.W | kg | 4500 | 4800 | |

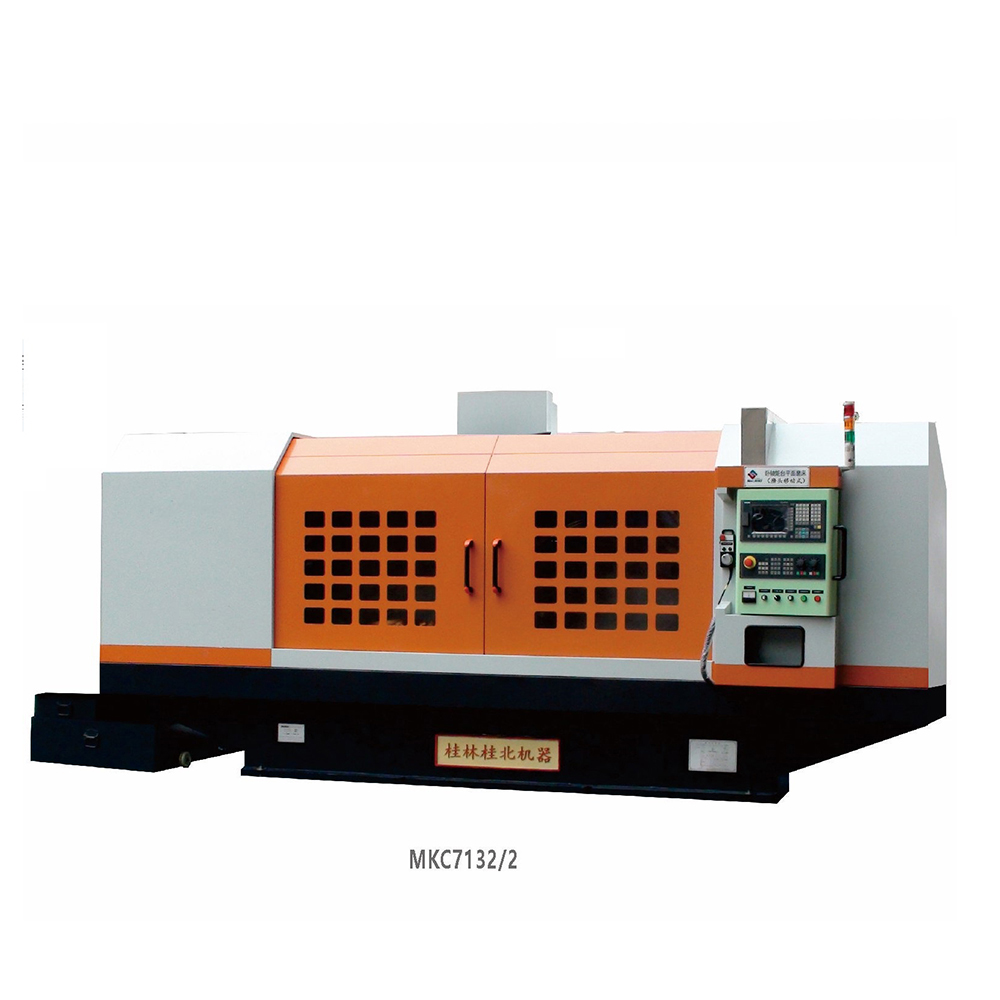

Products Pictures
Side-mounted grinding head
With diamond roller dresser
Fully enclosed guard
