Product Specifications
| Main Specifications | unit | MK7132/L | MK7140/L | MK7140×60/L | MK7150x12/L | MK7150x16/L |
| Size of working table (W×L) | mm | 320×1000 | 400×1000 | 400×6000 | 500×1250 | 500×1600 |
| Max.sizeof workpiece to be ground (W×L×H) | mm | 320×1000×400 | 400×1000×400 | 400×6000×400 | 500×1250×400 | 500×1600×400 |
| Longitudinal stroke of table | mm | 300~1100 | 300~6150 | 300~1350 | 300~1700 | |
| Distance spindlecentre to table | mm | 200-600 | 225~625 | 200~-600 | 225~625 | |
| Table Max.table load capacity (Including electromagnetic chuck) | kg | 500 | 624 | 3750 | 805 | 1200 |
| Grinding wheel motor power | kW | 9 | 11 | 9 | 11 | |
| Wheel size (0.D×WxI.D) | mm | φ400×50×φ203 | φ450×50×φ203 | φ400×50×φ203 | φ450×50×φ203 | |
| Wheel speed | r/min | 1460 | ||||
| Equalthicknessoftheworkpiece | mm | 300:0.005 | ||||
| Surface roughness of the workpiece | μm | Ra0.63 | ||||
| Electrical equipmenttotal capacity | kVA | 20 | 35 | 20 | 25 | |
| Overalldimensions(LxWxH) | mm | 3000×2900×2200 | 15500×2900×2200 | 3600×3200×2200 | 5020×3200×2200 | |
| NW | Kg | 3750 | 4000 | 15700 | 4700 | 5300 |
Machine Features
1: Column moving structure layout with good accuracy maintenance.
2: The vertical lift of the grinding head and the lateral movement of the column adopt the two-axis linkage CNC system, which can realize automatic grinding cycles as well as manual operation with the electronic handwheel.
3: The vertical feed and lateral movement are driven by AC servo motors with precision ball screws along their respective guideways for sensitive feeding and high positioning accuracy and repeat positioning accuracy.
4: The bed and table guideway adopt continuous automatic lubrication, and the column and its moving base guideway and ball screw, etc. are programmed to achieve intermittent lubrication, effectively preventing oil loss and strain.
5: The grinding head spindle adopts integral internal column and external tapered slide bearing, with strong structural rigidity and high load capacity, good workpiece grinding surface quality and easy maintenance.
6: Adopting external hydraulic station, the oil temperature can be controlled, saving oil and environmental protection, and the machine tool has good thermal stability.
7: The CNC system can be selected from Siemens, Fanuc, Taiwan New Generation, GuangDu, etc.

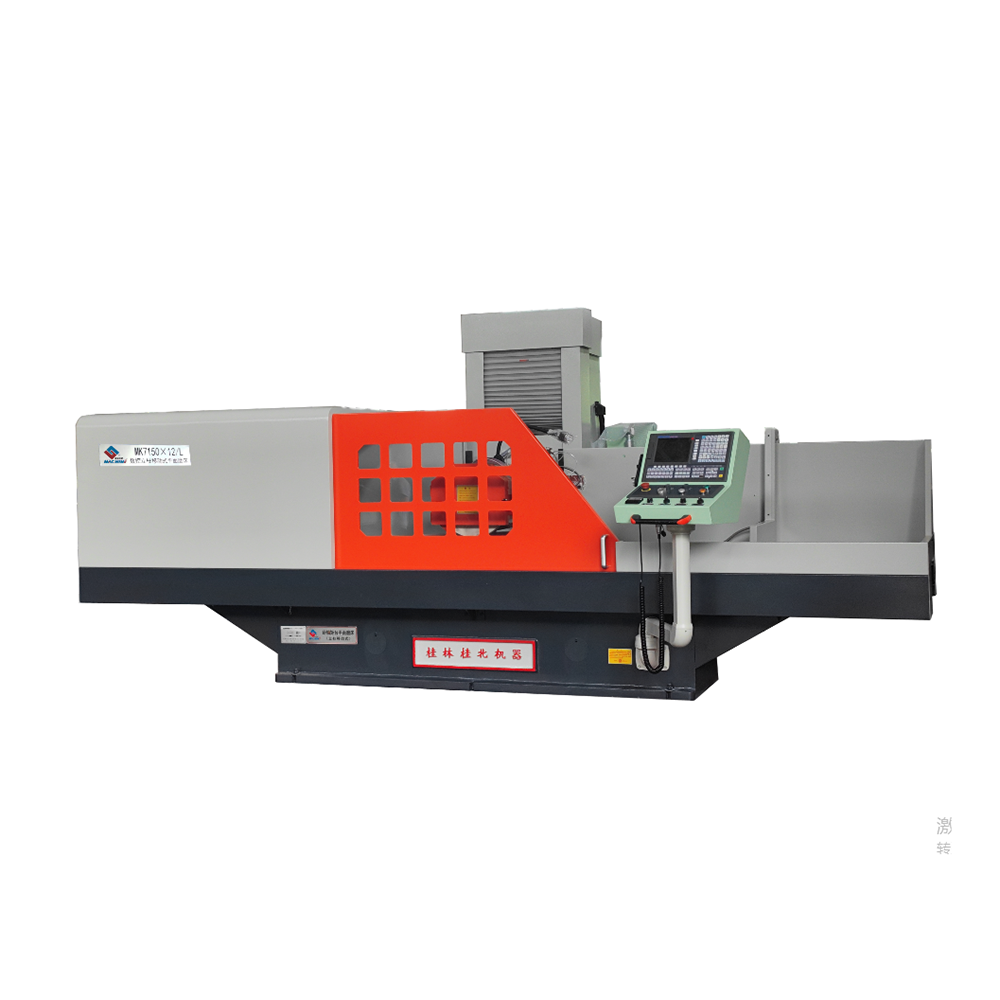

Products Pictures
Product Specifications
| Main Specifications | unit | MK7132/L | MK7140/L | MK7140×60/L | MK7150x12/L | MK7150x16/L |
| Size of working table (W×L) | mm | 320×1000 | 400×1000 | 400×6000 | 500×1250 | 500×1600 |
| Max.sizeof workpiece to be ground (W×L×H) | mm | 320×1000×400 | 400×1000×400 | 400×6000×400 | 500×1250×400 | 500×1600×400 |
| Longitudinal stroke of table | mm | 300~1100 | 300~6150 | 300~1350 | 300~1700 | |
| Distance spindlecentre to table | mm | 200-600 | 225~625 | 200~-600 | 225~625 | |
| Table Max.table load capacity (Including electromagnetic chuck) | kg | 500 | 624 | 3750 | 805 | 1200 |
| Grinding wheel motor power | kW | 9 | 11 | 9 | 11 | |
| Wheel size (0.D×WxI.D) | mm | φ400×50×φ203 | φ450×50×φ203 | φ400×50×φ203 | φ450×50×φ203 | |
| Wheel speed | r/min | 1460 | ||||
| Equalthicknessoftheworkpiece | mm | 300:0.005 | ||||
| Surface roughness of the workpiece | μm | Ra0.63 | ||||
| Electrical equipmenttotal capacity | kVA | 20 | 35 | 20 | 25 | |
| Overalldimensions(LxWxH) | mm | 3000×2900×2200 | 15500×2900×2200 | 3600×3200×2200 | 5020×3200×2200 | |
| NW | Kg | 3750 | 4000 | 15700 | 4700 | 5300 |
Machine Features
1: Column moving structure layout with good accuracy maintenance.
2: The vertical lift of the grinding head and the lateral movement of the column adopt the two-axis linkage CNC system, which can realize automatic grinding cycles as well as manual operation with the electronic handwheel.
3: The vertical feed and lateral movement are driven by AC servo motors with precision ball screws along their respective guideways for sensitive feeding and high positioning accuracy and repeat positioning accuracy.
4: The bed and table guideway adopt continuous automatic lubrication, and the column and its moving base guideway and ball screw, etc. are programmed to achieve intermittent lubrication, effectively preventing oil loss and strain.
5: The grinding head spindle adopts integral internal column and external tapered slide bearing, with strong structural rigidity and high load capacity, good workpiece grinding surface quality and easy maintenance.
6: Adopting external hydraulic station, the oil temperature can be controlled, saving oil and environmental protection, and the machine tool has good thermal stability.
7: The CNC system can be selected from Siemens, Fanuc, Taiwan New Generation, GuangDu, etc.
Products Pictures
