Product Specifications
| Main Specifications | unit | MKL⁷ 132×8 | MKL7140 | MKL7150×12 |
| Size ofworking table(W×L) | mm | 320×800 | 400×1000 | 500×1250 |
| Max.size of workpiece to be ground (W×L×H) | mm | 320×800×500 | 400×1000×500 | 500×1250×500 |
| Table longitudinal moving speed Setting unit | m/min mm | 0.02～15 0.001 | ||
| Max.Allowable weight of workpiece(Including eletromagnetic chuck) | kg | 500 | 780 | 1225 |
| Table longitudinal travel (axis-X) | mm | 850 | 1050 | 1350 |
| Distance from spindle center to table (axis-Y) | mm | 200～700 | ||
| Column transverse travel (axis-Z) | mm | 360 | 430 | 530 |
| Speed of wheel head vertical movement Setting unit | m/min mm | 0.01～2 0.001 | ||
| Speed of column travel movement Setting unit | m/min mm | 0.01~3 0.001 | ||
| Wheel size (0.D×W×l.D) | mm | φ500×(35～100)×φ203 | ||
| Electrical equipment total capacity | kVA | 35 | ||
| Power of spindle motor | KW | 22 | ||
| Power of roller motor | KW | 2.2 | ||
| Force grinding Vlongitudinal straightness and contour of shape surface | mm/ | 0.01/100,±5 | ||
| Surface roughness | μm | Ra0.63 | ||
| Overalldimensions (L×W×H) | mm | 4200×2300×2500 | 4400×2300×2500 | 4600×2400×2750 |
| N.W | kg | 5800 | 6000 | 7000 |

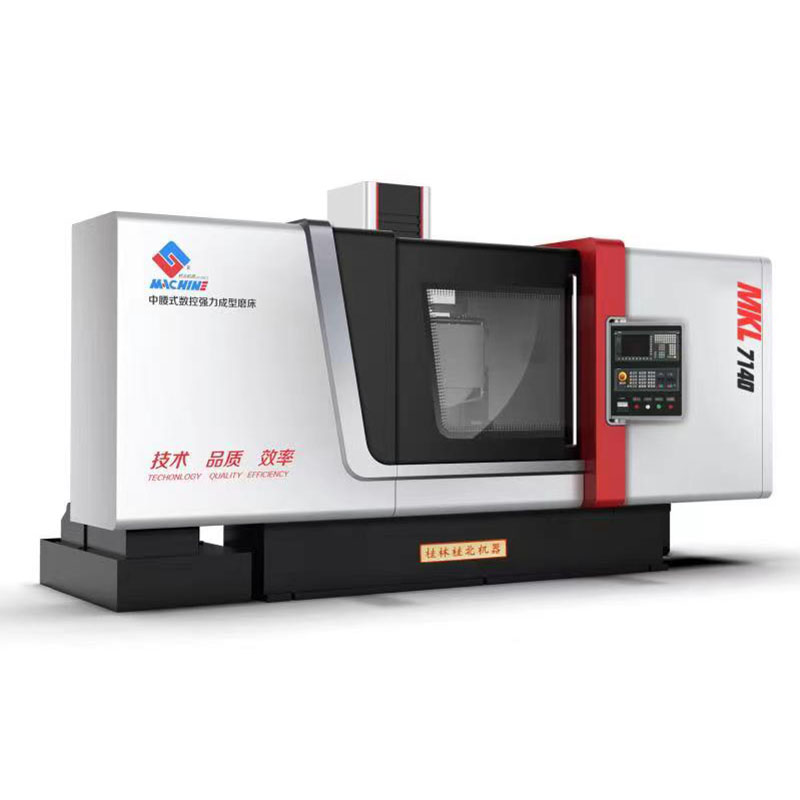

Products Pictures
