Product Specifications
| Main Specifications | Unit | GM-KM3025 |
| Max size of workpiece to be ground | mm | 2500×2500×400mm |
| Worktable surface | mm | 2500×3000 |
| Rotary table Worktable surface | mm | 1600×1600 |
| Maximum longitudinaltavel of worktable | mm | 3500 |
| Distance betweengantry columns | mm | 3000 |
| Horizontal grindng wheel center to table distance | mm | 200-1100 |
| Distance fromend face ofvertical grindng head spindle O Degree to working table surface | mm | 0-800 |
| Longitudinal movement speed | my/min | 5~25 |
| Max table load weight (Including eletromagnetic chuck) | kg | 15000 |
| Motor powerof hortontal grindng head | kW | 15 |
| Size of horiuontal grindng head(0.D×W×LD) | mm | φ500×75×φ203 |
| Vertical movement dstance of the horiaontal grindng head | mm | 1050 |
| Vertical fast moving speed of the horizontal grindng head | mmymin | 400 |
| Minvertical feed of the horizontalgrinding head | mm | 0.005 |
| Horizontal movement distance of the horizontal grinding head | mm | 1300 |
| Horizontal movement speed of the horiaontal ginding head | mmymin | 250~2400 |
| Horizontal intermittent feed of the horizontal grindng head | mm | 1-35 |
| vertcal grindng head | mm | 1-15 |
| Equvalent thidness of machined workpiece | mm | 0.006/1000 |
| Verticality of upper plane to any side | mm | 0.015/300 |
| Verticality of ary two right-angled sides | mm | 0.03/1000 |
| Surface roughness | um | Ra 0.63 |
| Total capacity of electrical equipment | KWA | 80 |
| Overall dimensions | mm | 10000×7000×5800 |
| NW | kg | 55000 |
Machine Features
1: The machine is equipped with fully closed-loop control CNC rotary table, fully automatic side and plane grinding, and can grind five sides (one horizontal side and the other side) in one clamping, with automatic workpiece correction and automatic tool setting function, and high working efficiency.
2: The bed and table are equipped with double V-sliding guideway, which provides good guidance and smooth operation of the machine.
3: The transverse guide of grinding head adopts steel inlay guide structure with special process, which is suitable for heavy load cutting and has good precision maintenance. The machine is equipped with Siemens 828D CNC system as standard.

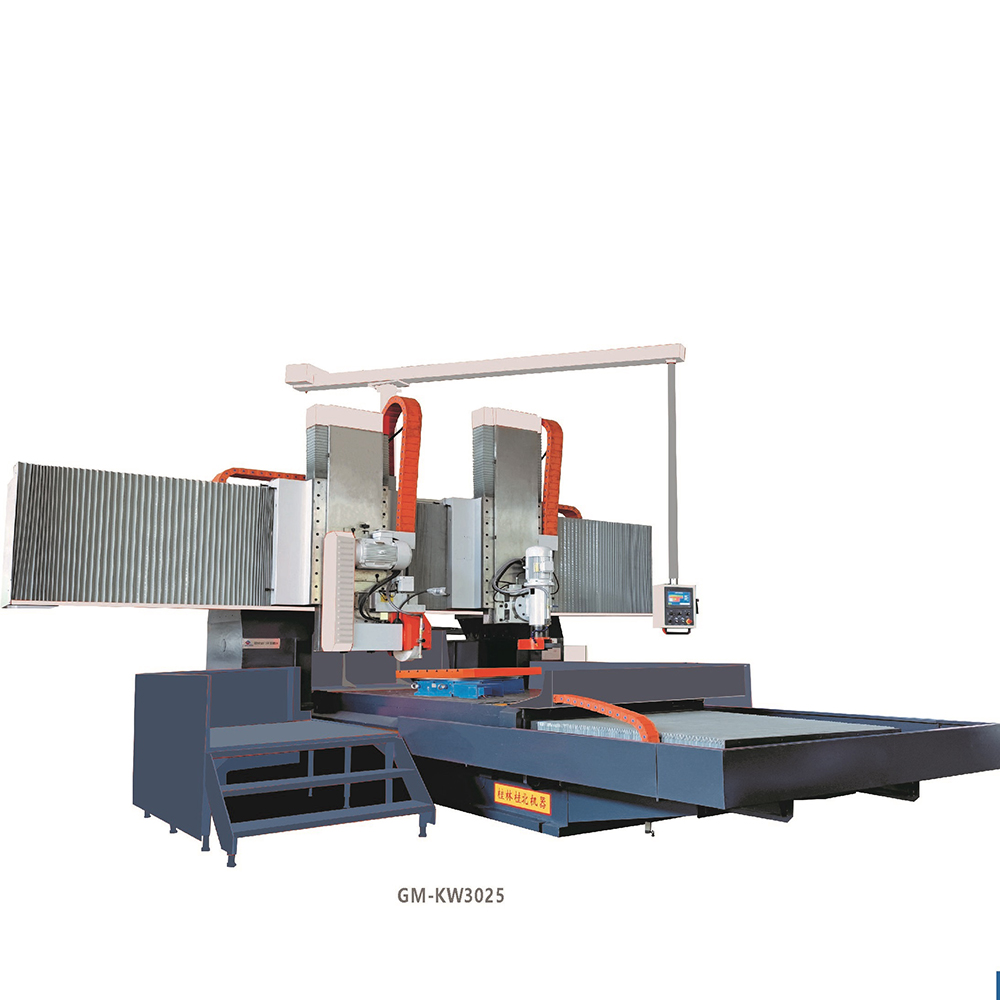

Products Pictures
