Product Specifications

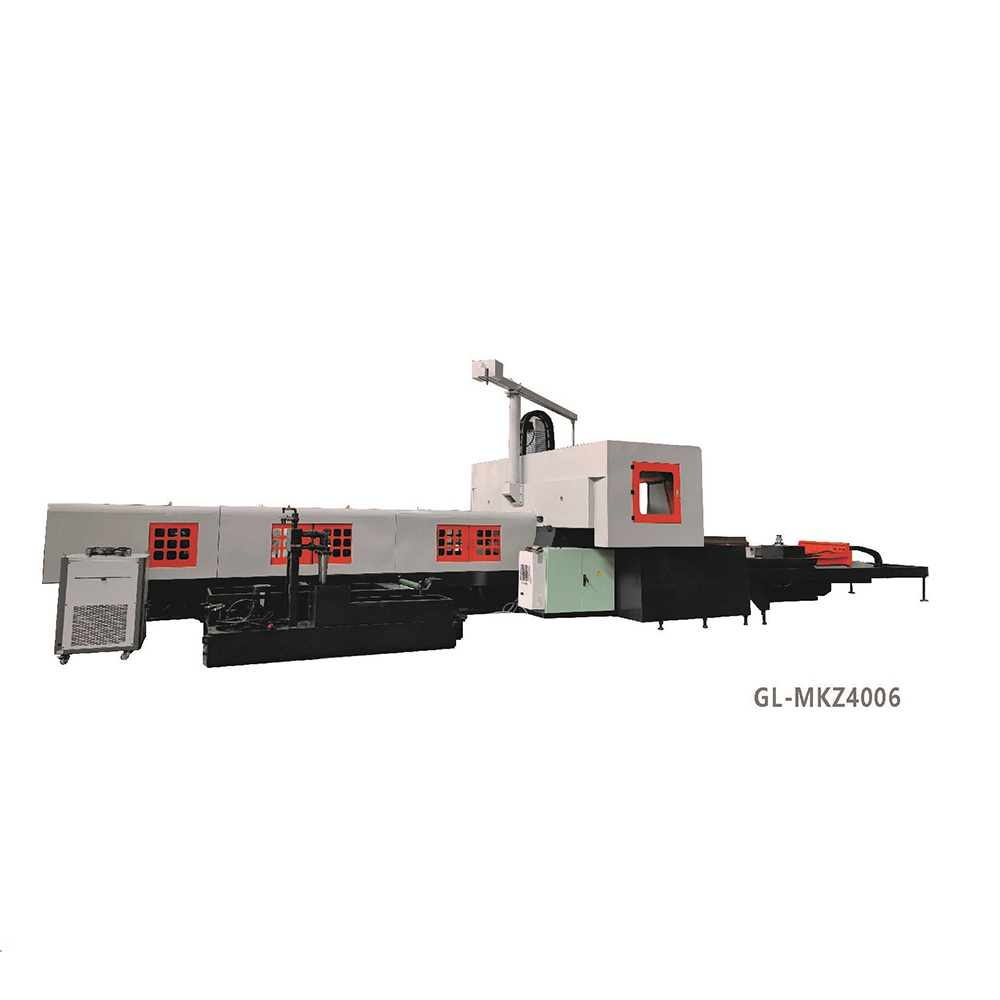

| Main Specifications | Unit | GL-MKZ4006 | GL-MKZ6006 |
| Work surface(L×W) | mm | 4000×600 | 6000×600 |
| Distance between column | mm | 1200 | |
| Speed of table | m/min | 1~20(Stepless) | |
| Size of be ground of vertical grinding head(W×L) | mm | (15~80)×4000 | (15~80)×6000 |
| Size of be ground of auxiliary grinding head(W×L×H) | mm | 600×4000×600 | 600×6000×600 |
| Surface roughness of workpieces | μm | Ra0.32 | |
| The parallelism of the facing twosides of the orbit arc | mm | 0.006/4000 | 0.009/6000 |
| Vertical grinding head | |||
| Lateral movement distance | mm | 600 | |
| Grinding wheel size(0.D×Wxl.D) | mm | φ600×(20~80)×φ203 | |
| Grinding wheellinear velocity | m/s | 35 | |
| Grinding head motor power | kW | (2×)15 | |
| Vertical grinding wheel dresser motor power | kW | 3.5 | |
| Auxiliary grinding head | |||
| Lateral movement distance | mm | 600 | |
| Vertical movement distance | mm | 600 | |
| Grinding wheel size(0.D×W×1.D) | mm | φ200×40×φ75 | |
| Grinding wheel rotation speed | r/min | 2900 | |
| Grinding head motor power | kW | 4 | |
| Max .load weight (Including tooling) | kg | 4000 | 5000 |
| Machine tool appearance(L×W×H) | mm | 13000×4200×3660 | 17000×4200×3660 |
| Netweight | kg | 22000kg | 34000kg |
Machine Features
1: Gantry fixed-beam structure with double V structure of bed guide, high precision and stability.
2: Equipped with a double vertical grinding head and an auxiliary grinding head. Automatic centralized lubrication of the bed guide.
3: Technology, precision, quality and efficiency.
