Product Specifications
| Specifications | Figures |
| Machine Type | Plastic Shredder |
| Production Capacity (kg/h) | 300 - 500 kg/h |
| Voltage | 380v |
| Core Components | Bearing, Motor, PLC, Engine |
| Dimension(L*W*H) | 1500*700*1750mm |
| Power (kW) | 3 |
| Usage | Waste Plastic Crusher |
Products Introduction

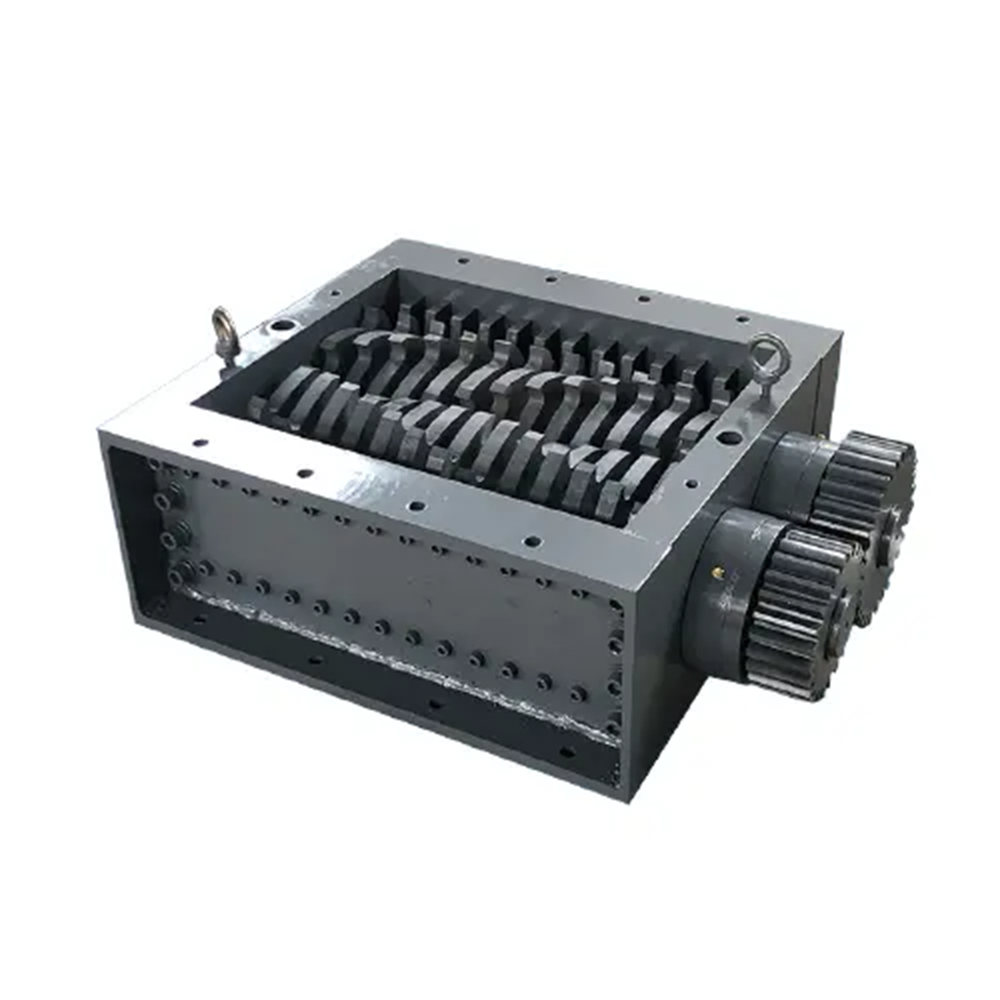

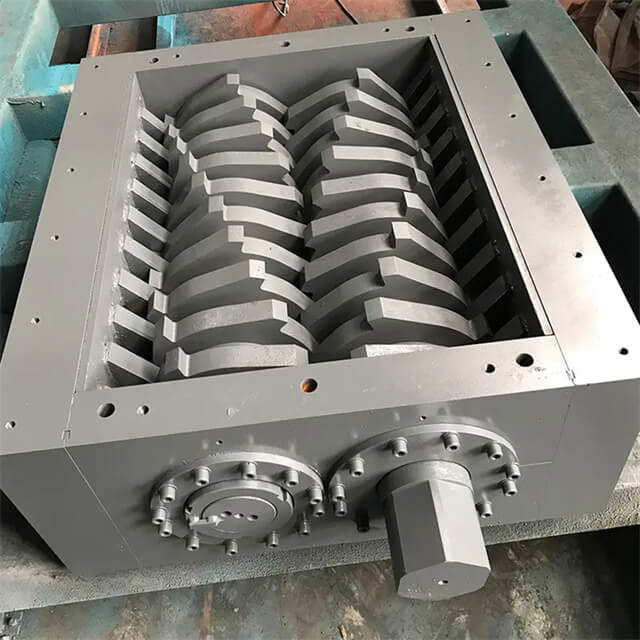

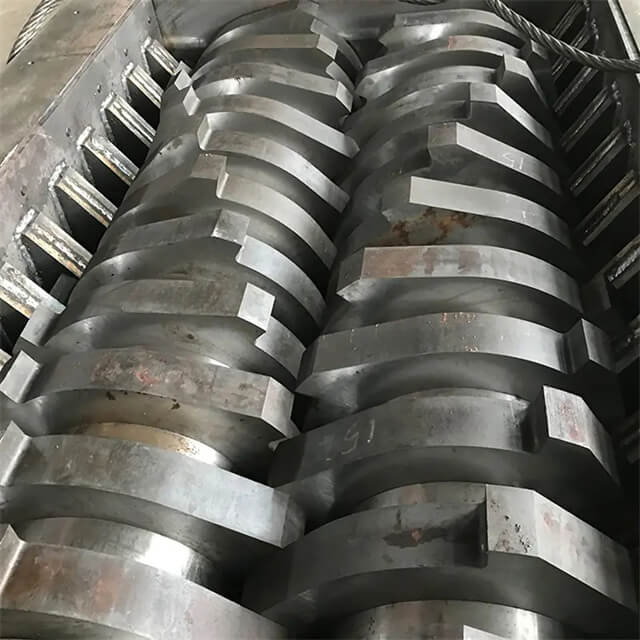

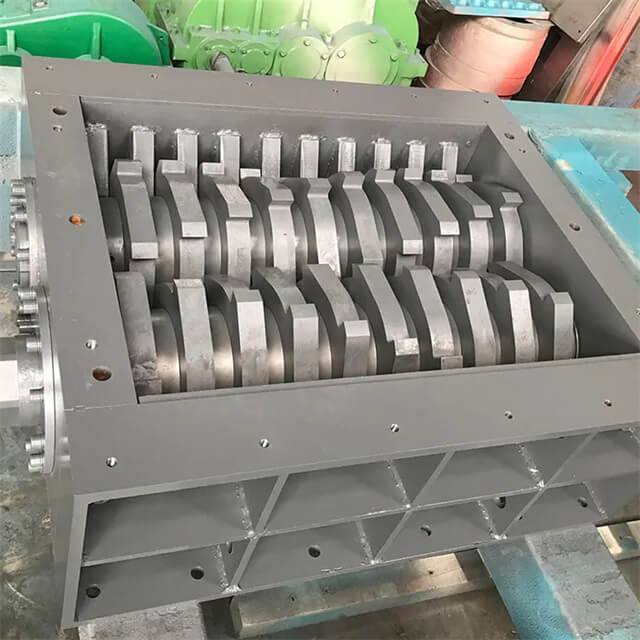

The shredding chassis is the most important component of a shredder and the core of the entire machine. The shredded chassis mainly includes metal plates welded with reinforced steel bars, bearings, bearing seats, shredder blades, bushings, blade shafts, fixed blades, etc.
Products Features
1: The vulnerable parts of the entire machine are included in the chassis.
2: The quality of vulnerable parts directly determines the effectiveness and service life of a machine in shredding materials, and plays a decisive role in the quality of a shredder.

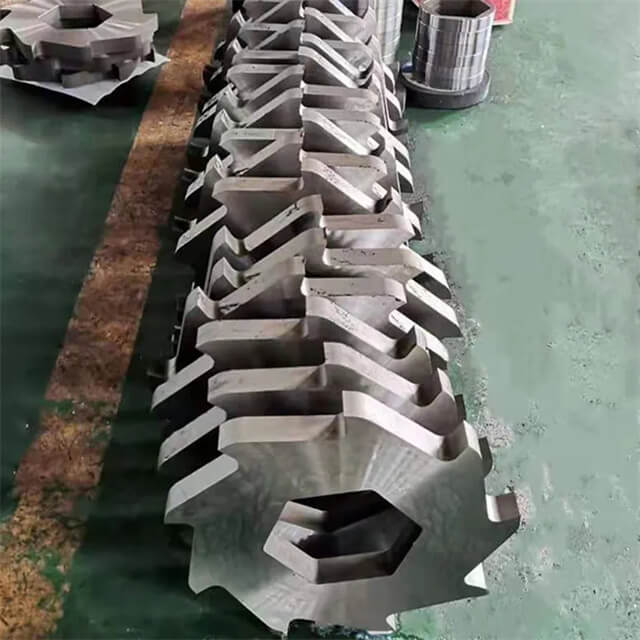

3: Our company produces shredder chassis and cutting tools made of high-quality special steel such as lD, D2, SKDll, H13 Crl2Moy, 6CrW2si 9Crsi, etc.
4: The bearings are all made of authentic shredder spindles. lo ensure the quality of the shredder case and even the overall shredder.
Products Pictures
