Plastic Bottle Film Bag Shredding Machine

This small shredder is driven by a hardened gear reducer, and The blade is made of high. strength alloy steel, which has the characteristics of strong wear resistance and high strength. Differential operation between shafts, with functions of tearing, squeezing, biting, etc. lt issuitable for the treatment of various household garbage, and the output size is about 10 mm. lthas the advantages of large output, low power and low noise. The size of the machine and theoutput size can be customized according to the materials crushed by the customer.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Specifications	Figures
Machine Type	Plastic Shredder
Production Capacity (kg/h)	50 - 100 kg/h
Core Components	Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Voltage	220V
Dimension(LWH)	600330600mm
Power (kW)	1.1
Speed	10-20rpm
Cutting chamber	150*200mm
Knife size	120*10mm
Knife quantity	15pcs
Knife material	9CrSi
Shaft diameter	40mm
Shaft material	45# steel
Controller	PLC(auto reverse)
Applicable Industries	Recycled Industry

Products Features

1: Alloy Tools: Strong impact resistance, the metal crusher blades do not break.

2: Overload Protection: Equipped with overload protection to prevent machine damage caused by overload.

3: Blade Material: Blades made of hard alloy steel, high wear resistance, and high strength.

4: Frame Construction: Strong frame structure, the main frame is made of rectangular tube construction, providing greater strength and stability.

5: Bearings: Uses SKF bearings, which can withstand greater impact forces.

6: Crushing Chamber: The crushing chamber is riveted from high-strength steel plates, making it easy to dismantle, with a longer service life and greater strength.

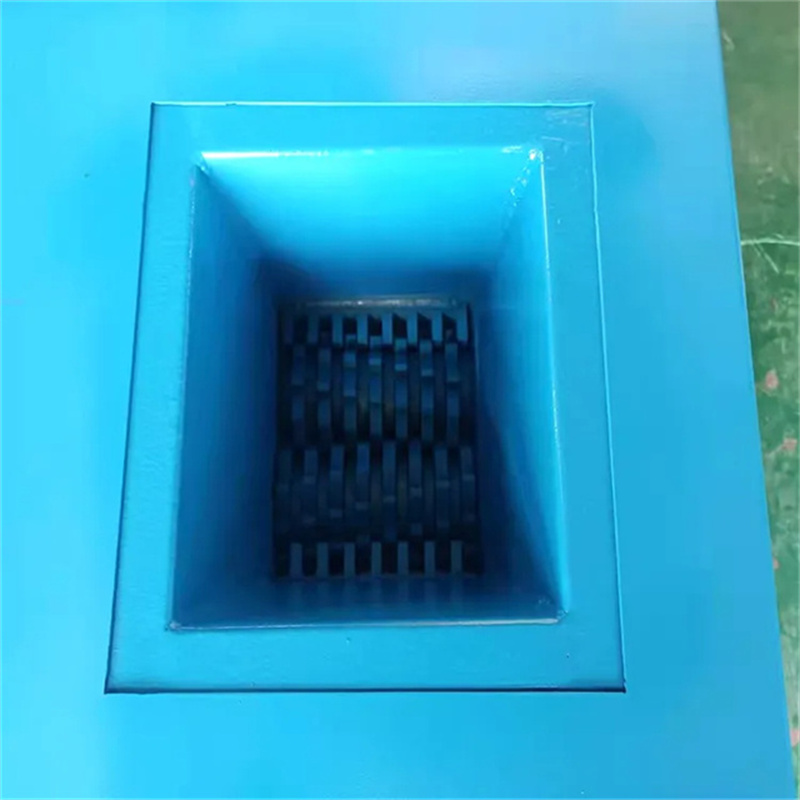

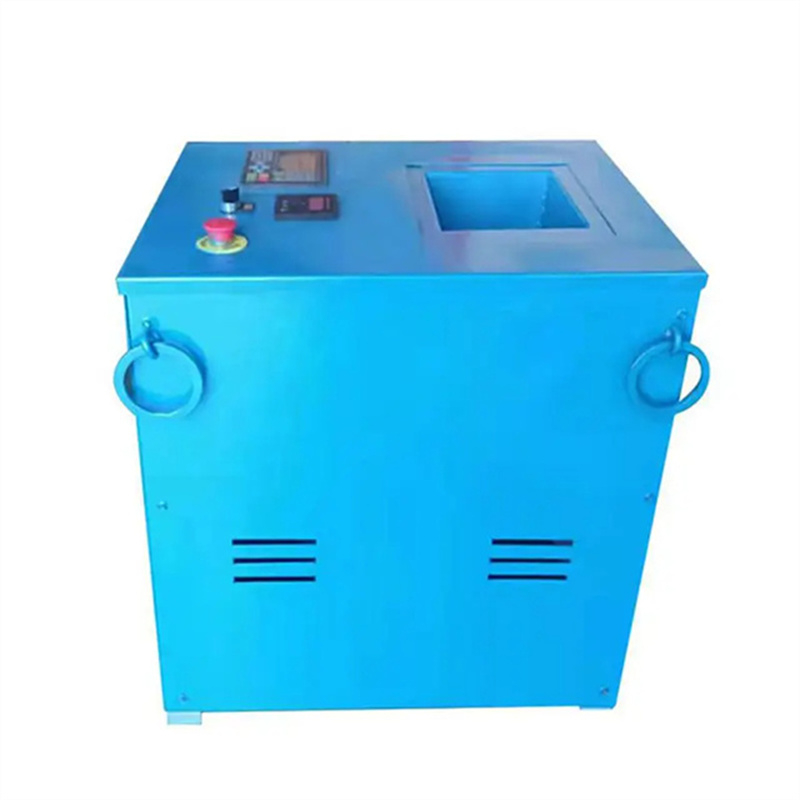

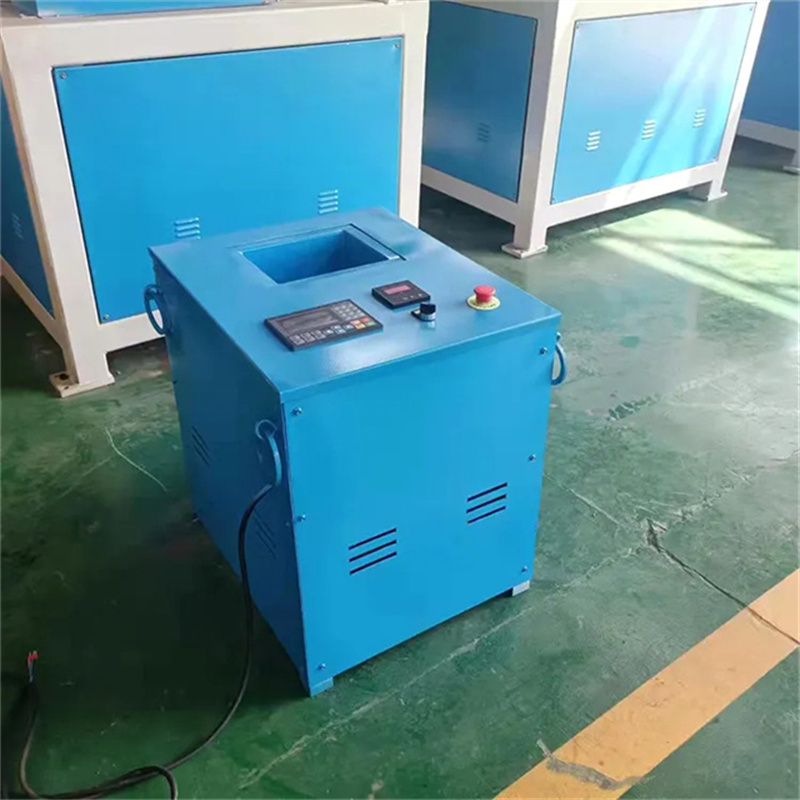

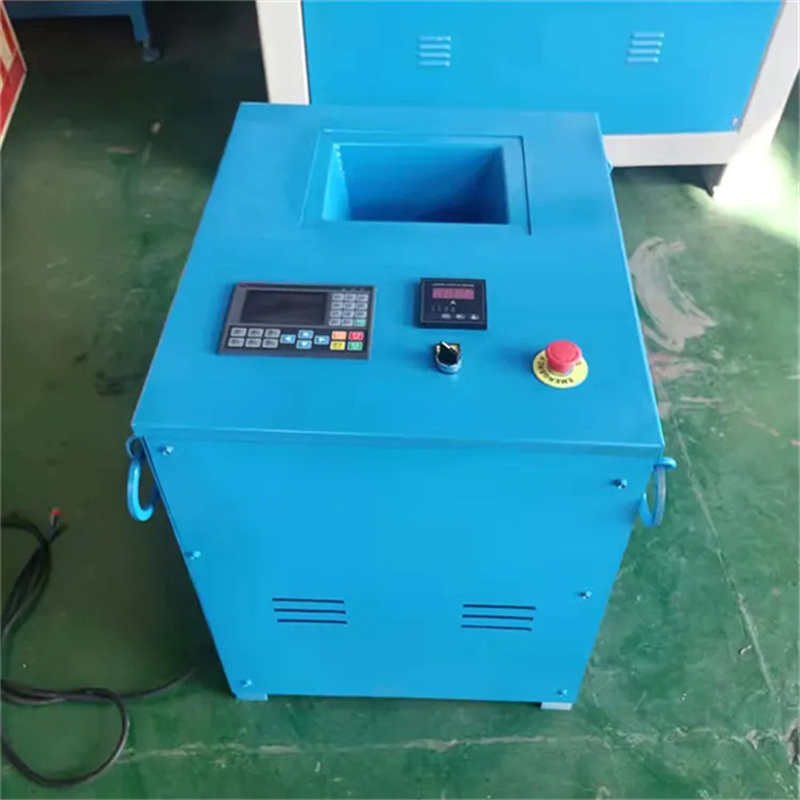

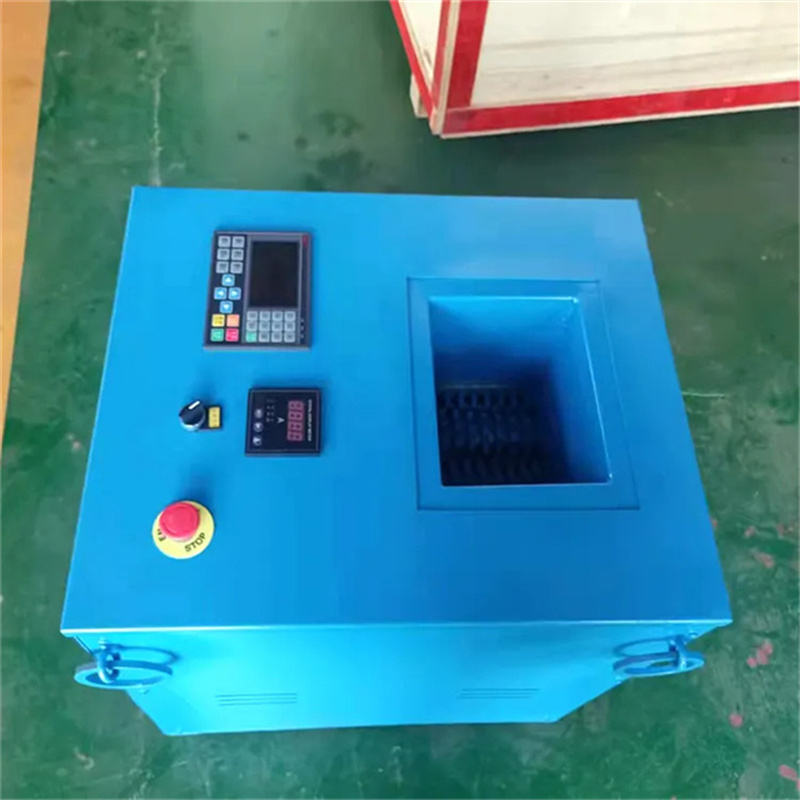

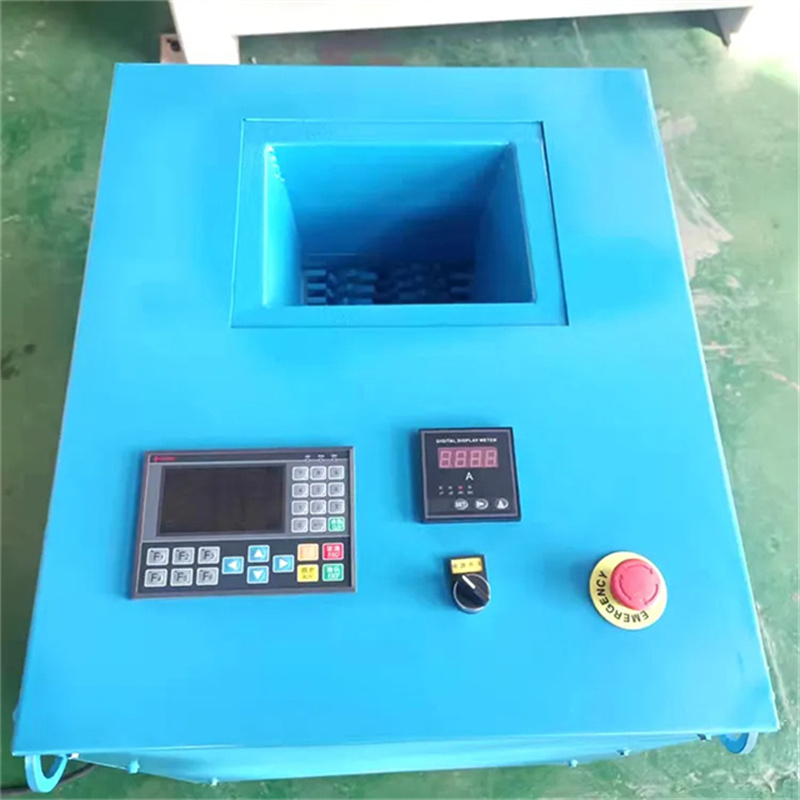

Products Pictures
