Product Specifications
| Specifications | Figures |
| Machine Type | Plastic double Shaft Shredder |
| Production Capacity (kg/h) | 100 - 1000 kg/h |
| Core Components | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox |
| Voltage | 380V/415V/220V |
| Power | 74KW |
| Cutting chamber | 1600*800mm |
| Knife material | 9CrSi |
| Shaft material | 45#steel |
| Knife quantity | 64pcs |
| Controller | PLC (auto reverse) |
| Knife size | 400*25mm |
| Applicable Industries | Waste Plastic Crusher |
Products Features
1: Shredder main body: The machine uses high quality steel welding to eliminate stresstreatment,overall machining, to confirm the machine stability in a long time.
2: Rotary kinfe/ Fixed knife: Rotary knife uses special alloy steel, forging blank, precisionmachining, heat treatment and multiple freezing heat treatment technology, the toughness andhardness can be can be used repeatedly, to confirm cutting performance and service life. Thefixed knife the patent hook type installation, optimize the tool replacement function, make theblades maintenance and replacement more efficient.
3: Bearing And Seal: The bearing seat adopts detachable combination, can quickly remove therotary knife, fixed knife, bearings and other parts ,easy to maintain and replace the blades. Thespecial sealing structure can effectively prevent the contact between the broken material andgrease, shred liquid products can also protect the bearings and gears.
4: Blades And shafts: Use the high strengh and heavy special steel, to provide a powerfuldriving force for cutting.

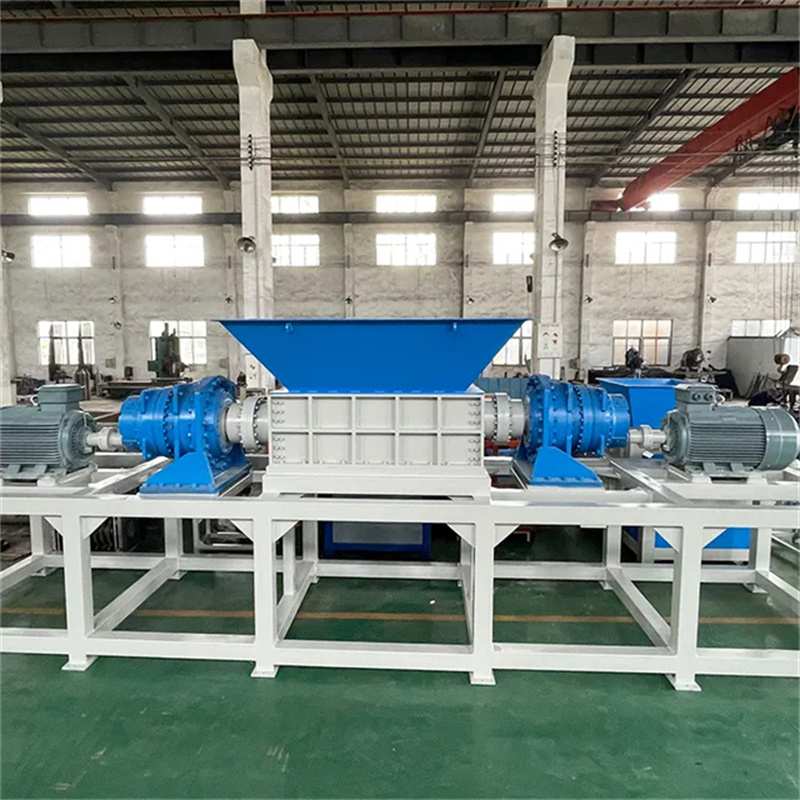

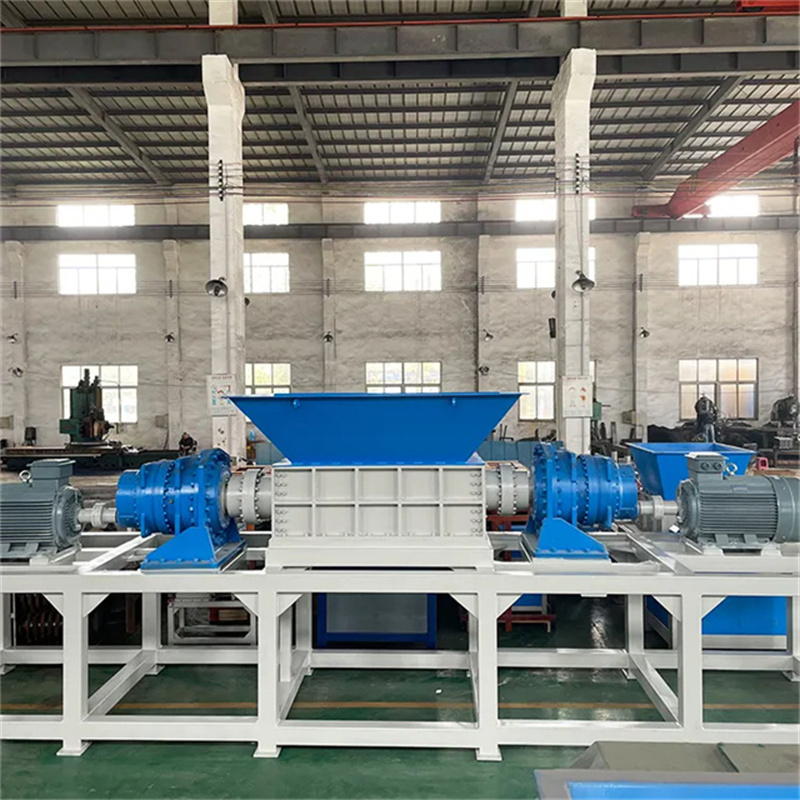

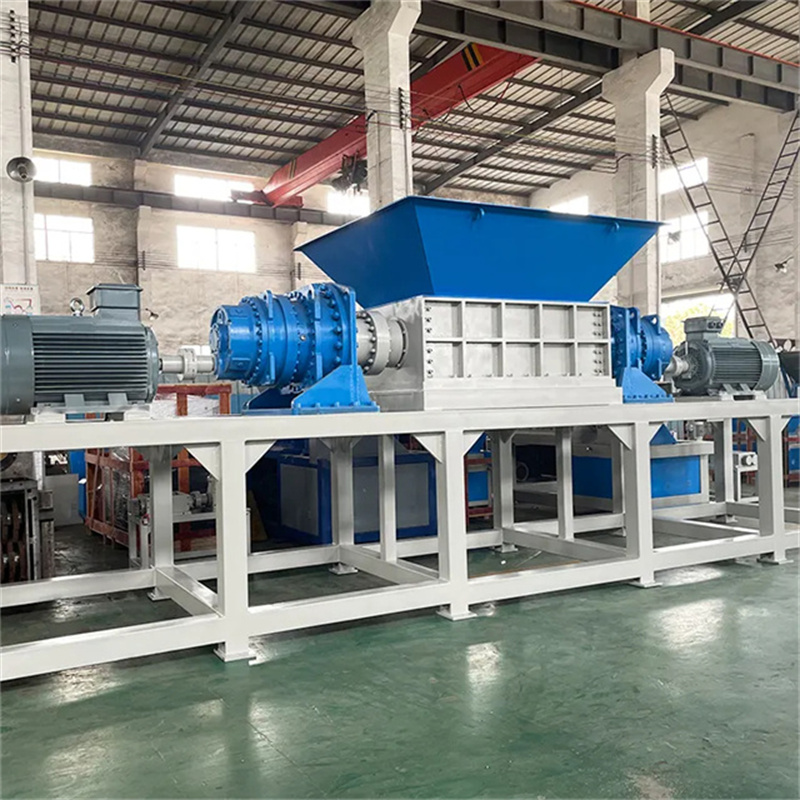

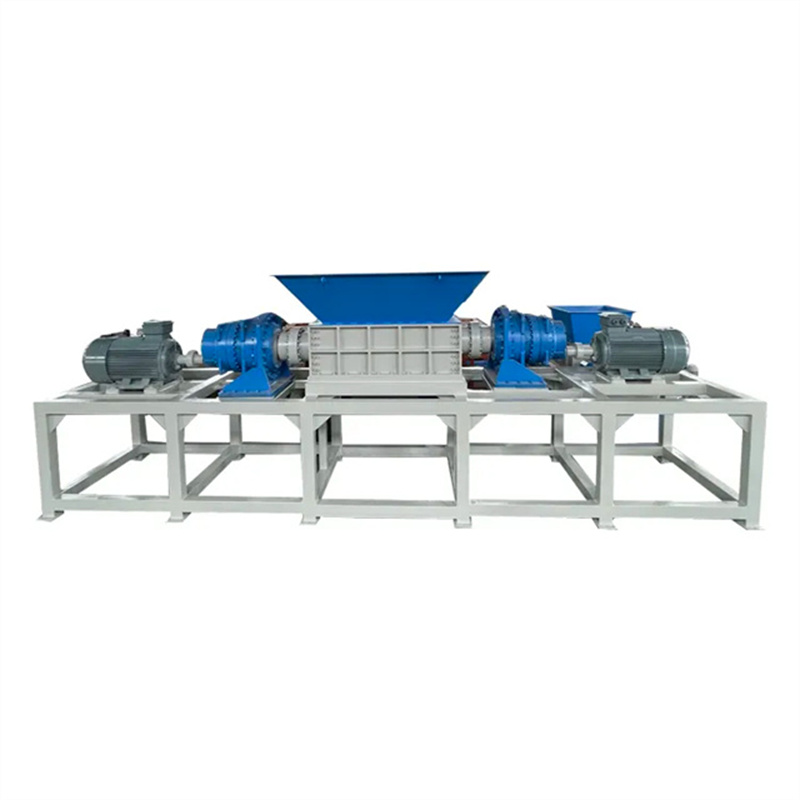

Products Pictures
