Recycling Scrap Shredder Plastic Crusher

This small shredder is driven by a hard-tooth surface gear reducer and features blades made of high-strength alloy steel, which are highly wear-resistant and strong. It operates with differential speeds between shafts, enabling tearing, squeezing, and compacting functions. It is suitable for the refinement processing of various household wastes, with an output size of about 10 millimeters. It offers high production capacity, low power consumption, and low noise. The size of the machine and the granularity of the output can be designed according to the materials customers need to shred.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Specifications	Figures
Machine Type	Plastic Shredder
Production Capacity (kg/h)	100 - 300 kg/h
Core Components	Bearing, Motor, Pump, Gear, PLC, etc.
Voltage	380V/415V/220V
Cutting chamber	9CrSi/D2/SKD-11
Knife quantity	40pcs
Knife size	160*10mm
Knife material	9CrSi
Shaft diameter	50mm
Shaft material	45# steel
Controller	PLC (auto reverse)
Applicable Industries	Various industries

Products Features

1: Alloy Tools: Strong impact resistance, the metal crusher blades do not break.

2: Overload Protection: Equipped with overload protection to prevent machine damage caused by overload.

3: Blade Material: Blades made of hard alloy steel, high wear resistance, and high strength.

4: Frame Construction: Strong frame structure, the main frame is made of rectangular tube construction, providing greater strength and stability.

5: Bearings: Uses SKF bearings, which can withstand greater impact forces.

6: Crushing Chamber: The crushing chamber is riveted from high-strength steel plates, making it easy to dismantle, with a longer service life and greater strength.

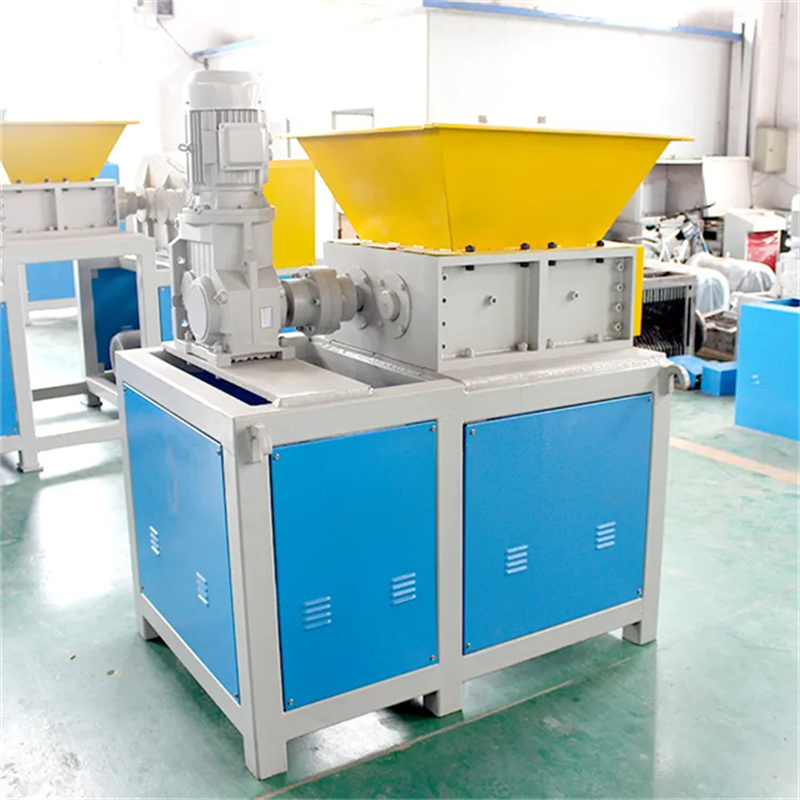

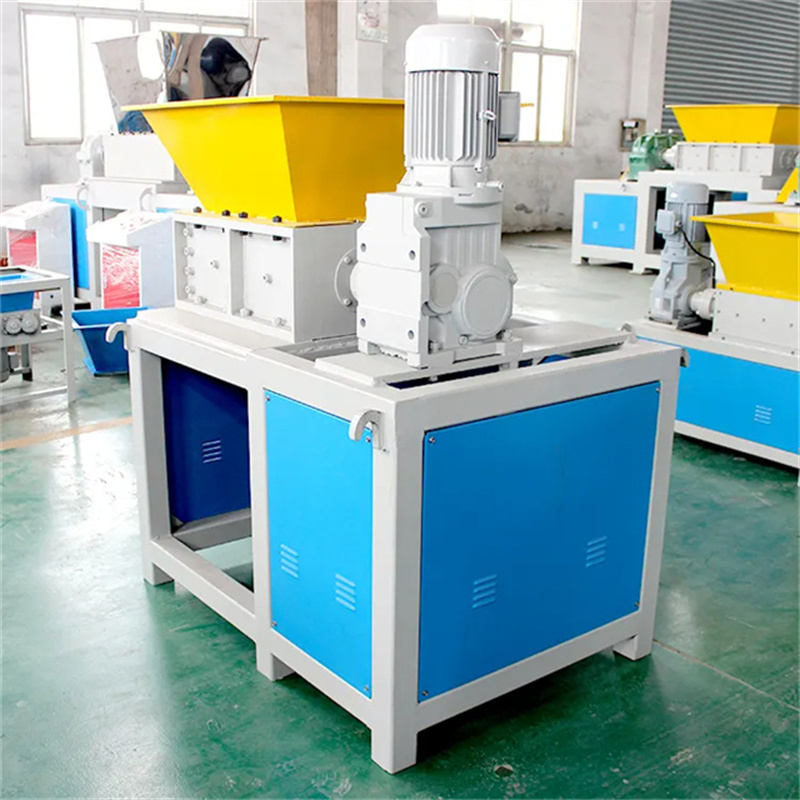

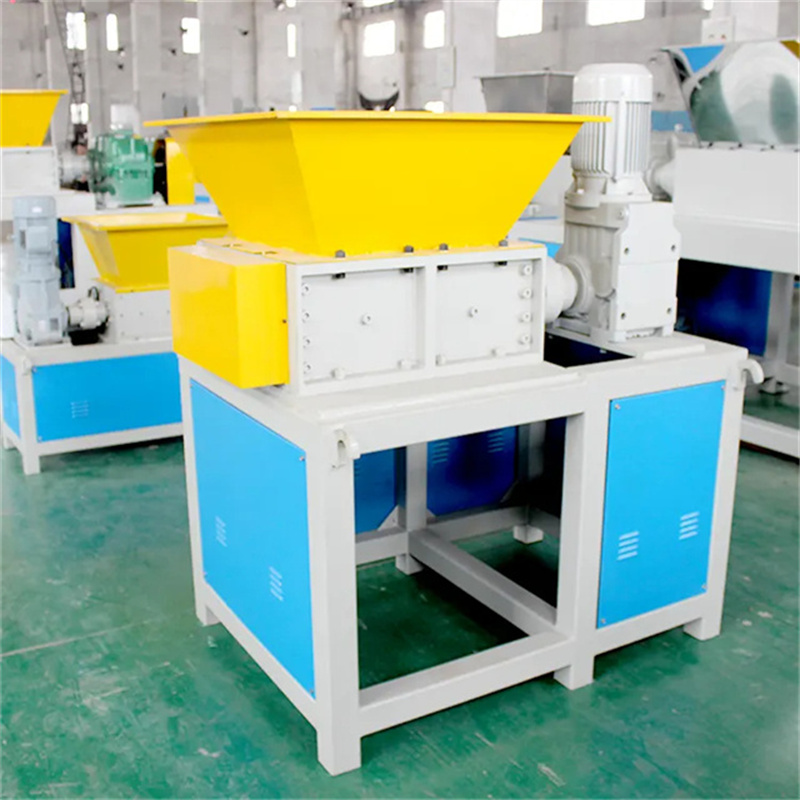

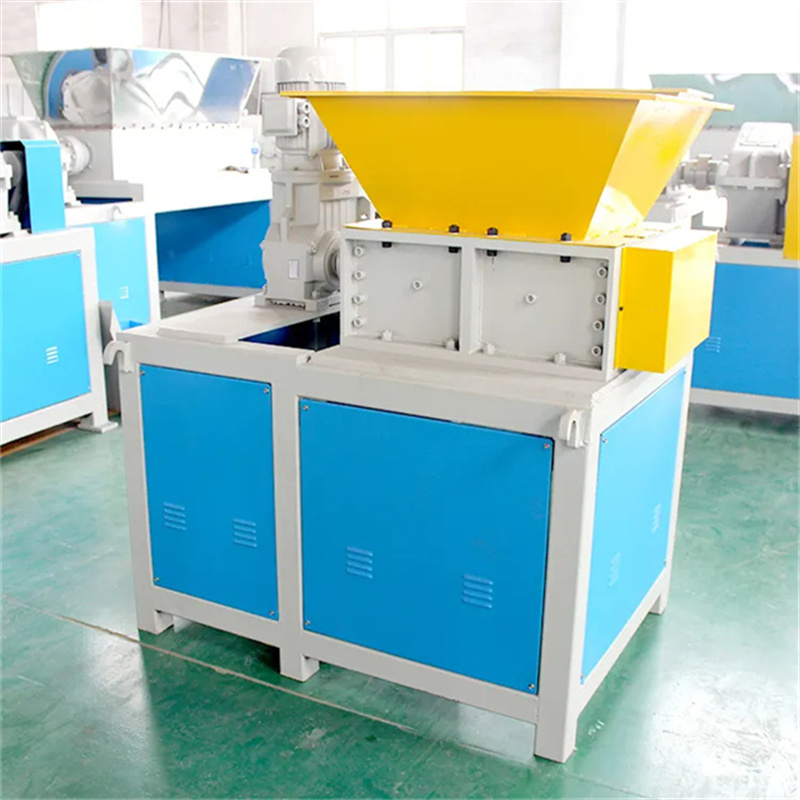

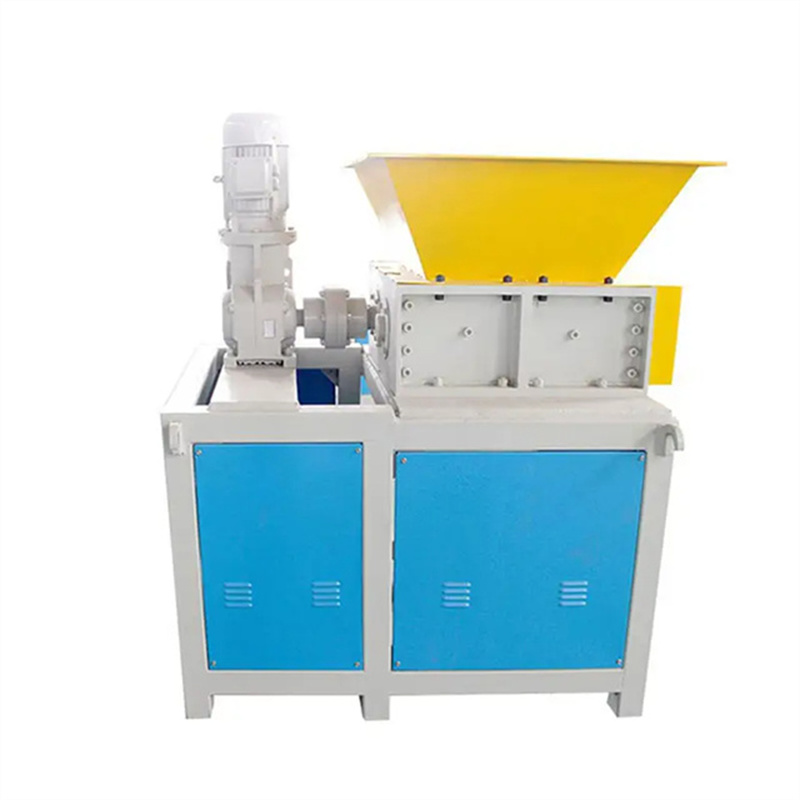

Products Pictures

Main-03
