Plastic Double Shaft Shredder

This small shredder is driven by a hard-tooth surface gear reducer and features blades made of high-strength alloy steel, which are highly wear-resistant and strong. It operates with differential speeds between shafts, enabling tearing, squeezing, and compacting functions. It is suitable for the refinement processing of various household wastes, with an output size of about 10 millimeters. It offers high production capacity, low power consumption, and low noise. The size of the machine and the granularity of the output can be designed according to the materials customers need to shred.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Specifications	Figures
Machine Type	Plastic Double Shaft Shredder
Production Capacity (kg/h)	1000 - 25000 kg/h
Core Components	Bearing, Motor, Pump, Gear, PLC, etc.
Voltage	380V/415V/220V
Blades material	9CrSi/D2/SKD-11
Knife quantity	33pcs
Function	Broken Waste
Knife thickness	15mm - 60mm or customized
Knife diameter	120mm - 160mm or customized

Products Features：

1: Alloy Tools: Strong impact resistance, the metal crusher blades do not break.

2: Overload Protection: Equipped with overload protection to prevent machine damage caused by overload.

3: Blade Material: Blades made of hard alloy steel, high wear resistance, and high strength.

4: Frame Construction: Strong frame structure, the main frame is made of rectangular tube construction, providing greater strength and stability.

5: Bearings: Uses SKF bearings, which can withstand greater impact forces.

6: Crushing Chamber: The crushing chamber is riveted from high-strength steel plates, making it easy to dismantle, with a longer service life and greater strength.

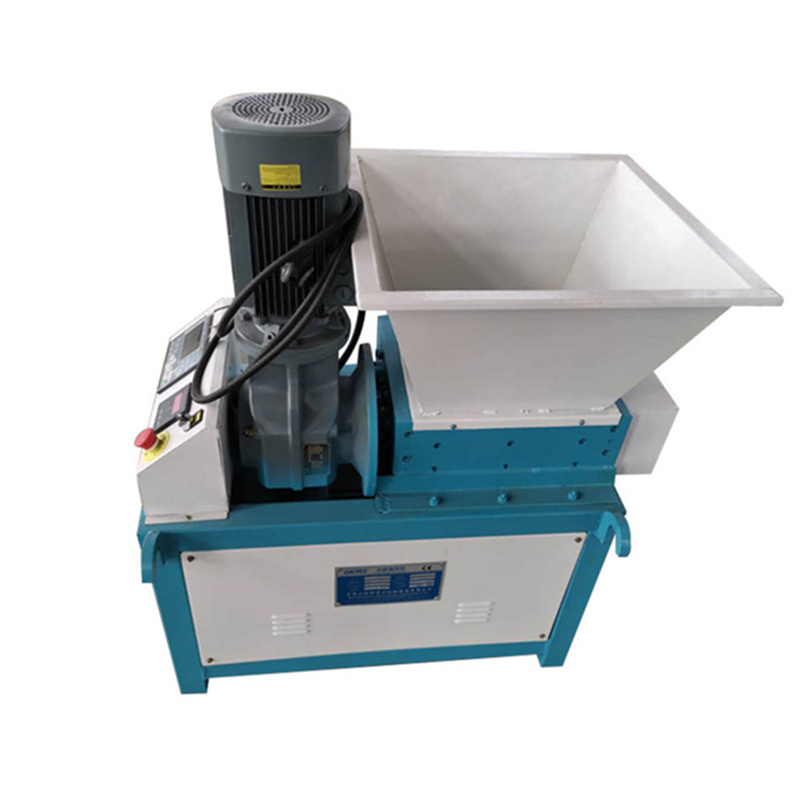

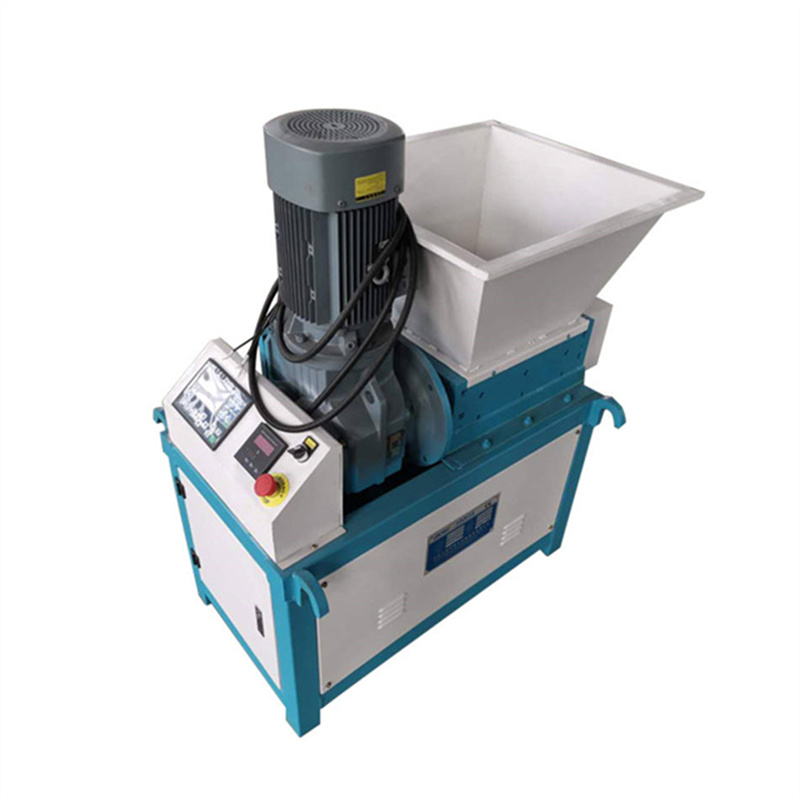

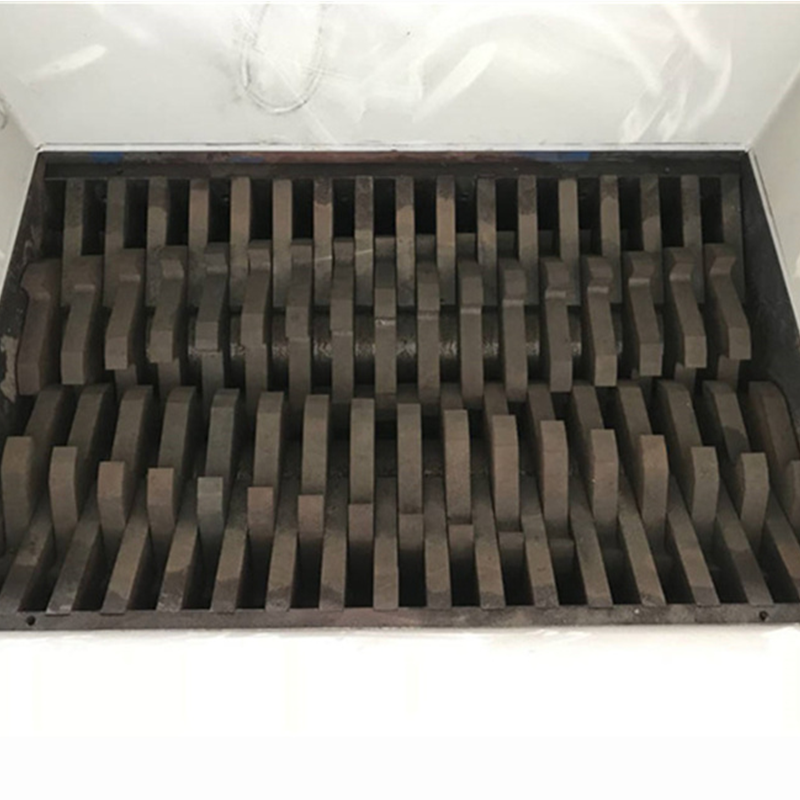

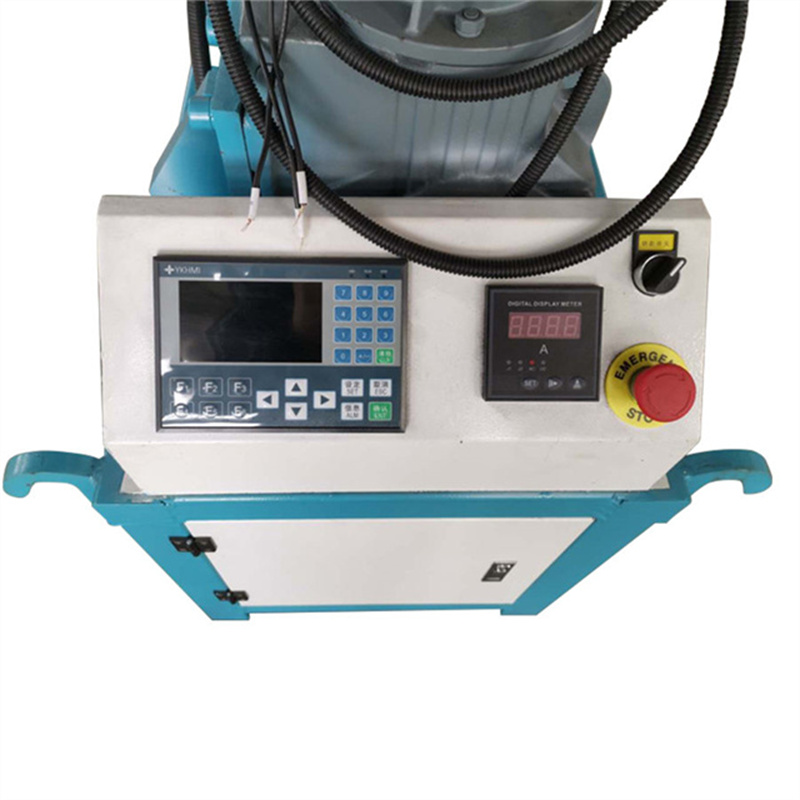

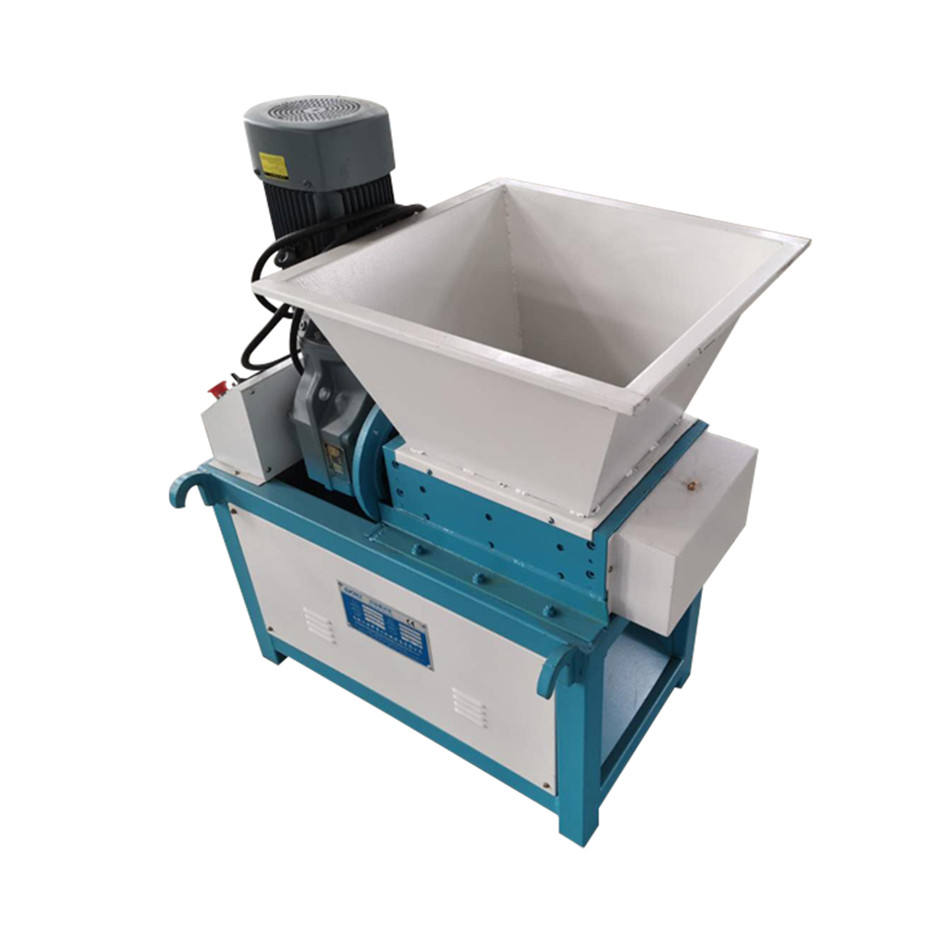

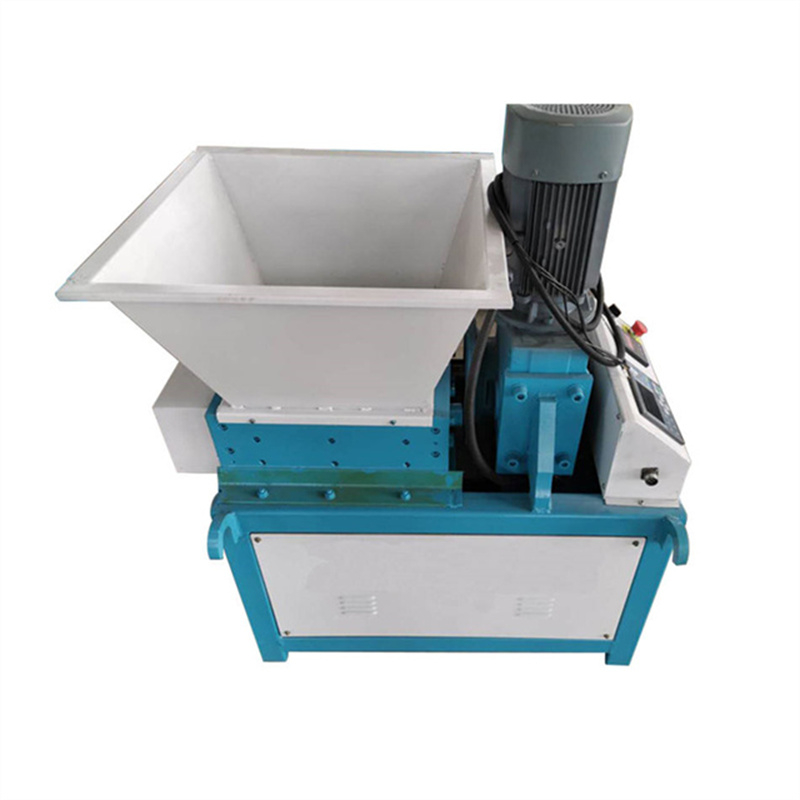

Products Pictures

Main-03
