Product Specifications
| Main Specifications | Unit | MB7170x12 | MB7170x16 | MB7170x20 |
| Size of working table (W×L) | mm | 700×1250 | 700×1600 | 700×2000 |
| Max.size of workpiece to be ground (W×L×H) | mm | 700×1250×500 | 700×1600×500 | 700×2000×500 |
| Table longitudinal travel(Hydraulic) | mm | 300～1350 | 300～1700 | 300~2100 |
| Max.Allowable weightofworkpiece (Including eletromagnetic chuck) | kg | 1126 | 1440 | 1800 |
| Wheel size (0.D×W×1.D) | mm | φ400×50×φ203 | ||
| Electrical equipment total capacity | kVA | 21 | ||
| Grinding wheel motor Rotational speed | kW r/min | 11 1440 | ||
| Equal thickness of the workpiece | kVA | 300:0.008 | ||
| Surface roughness of the workpiece | μm | Ra0.63 | ||
| Overal dimensions(L×W×H) | mm | 3600×2300×2500 | 5200×2300×2500 | 5600×2300×2500 |
| Packing dimensions (L×W×H) | cm | 390×235×280 | 477×235×280 | 517×235×280 |
| NW | kg | 6100 | 7000 | 7400 |
Machine Features
1: Dual axis programmable digital instrument display
2: Lateral ball screw auxiliary drive
3: Proportional valve external oil station

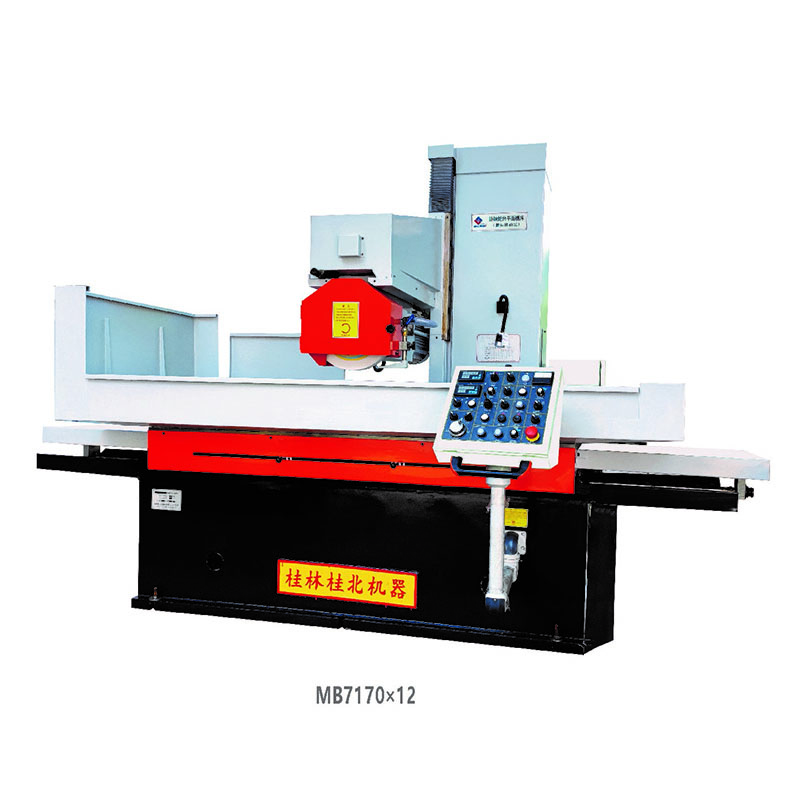

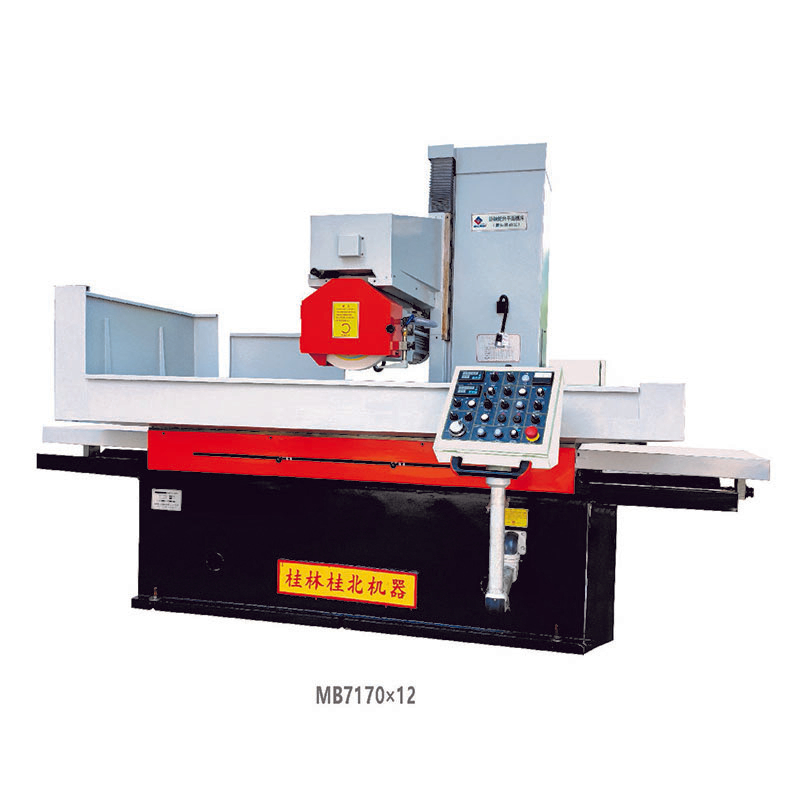

Products Pictures
