Fully Automatic Electromagnetic Knife Grinding Machine

Our Fully Automatic Electromagnetic Knife Grinder delivers robust, high-precision grinding for a variety of industrial needs. Featuring advanced turbine and electromagnetic technologies, it offers stability and precision for the most demanding tasks. Built with high-quality carbon steel and designed for ease of use, it's an indispensable tool for industries that require reliable, precise cutting tools.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

Machine Model	1600 Style	2300 Style	3200 Style
Tool Table Area	1600*180MM	2300*180mm	15702180mm
Grinding Wheel Size	20011032MM	20011032mm	20011032mm
Table Reciprocating Speed	8M/MIN	8m/min	8m/min
Tool Table Adjustable Angle	±90°	±90°	±90°
Grinding Head Adjustable Angle	±90°	±90°	±90°
Total Machine Power	4.0KW+0.75KW+0.75KW+90W	4.0KW+0.75KW+0.75KW+90W	4.0KW+0.75KW+0.75KW+90W
Grinding Accuracy	≤0.04MM/M	≤0.05mm/m	≤0.06mm/m
Machine Weight	1600KG	2100kg	3000kg
Dimensions	300010001450MM	370010001350mm	460010001350mm

Products Features

1: This knife grinder series is made from high-quality carbon steel with a durable gantry-type structure. It features an adjustable grinding head and precisely scraped guide rails to extend the machine's lifespan. An aviation turbine reduction system and a rack-and-pinion mechanism ensure stable operation.

2: Ideal for sharpening straight-edged blades in rotary peeling machines, paper cutters, shearing machines, and more, this grinder is crucial for industries like printing, papermaking, woodworking, and metalworking.

3: The machine's automation makes it highly efficient and easy to use, perfect for large enterprises and professional sharpening services. It is designed to polish and sharpen a variety of straight-edged tools and flat workpieces, including those used in rubber cutting and traditional Chinese medicine. The model also includes an electromagnetic suction cup for enhanced convenience and precision.

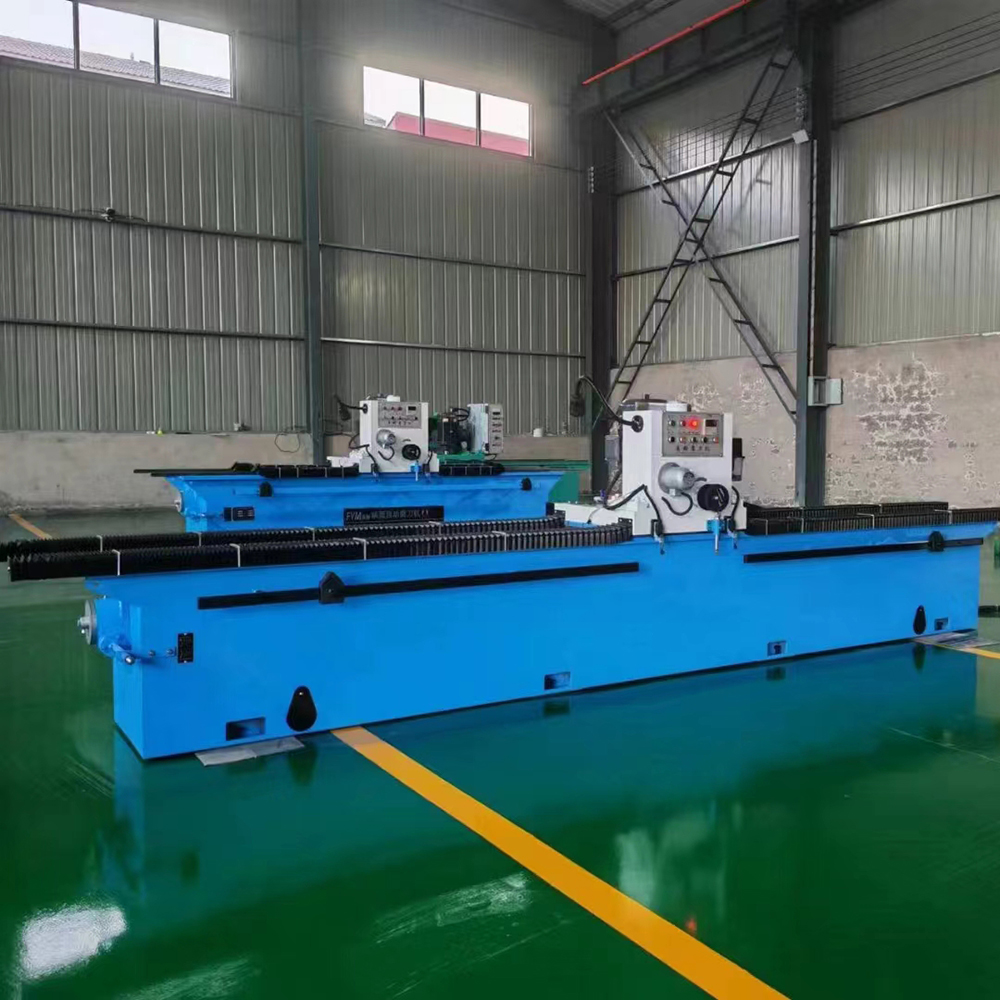

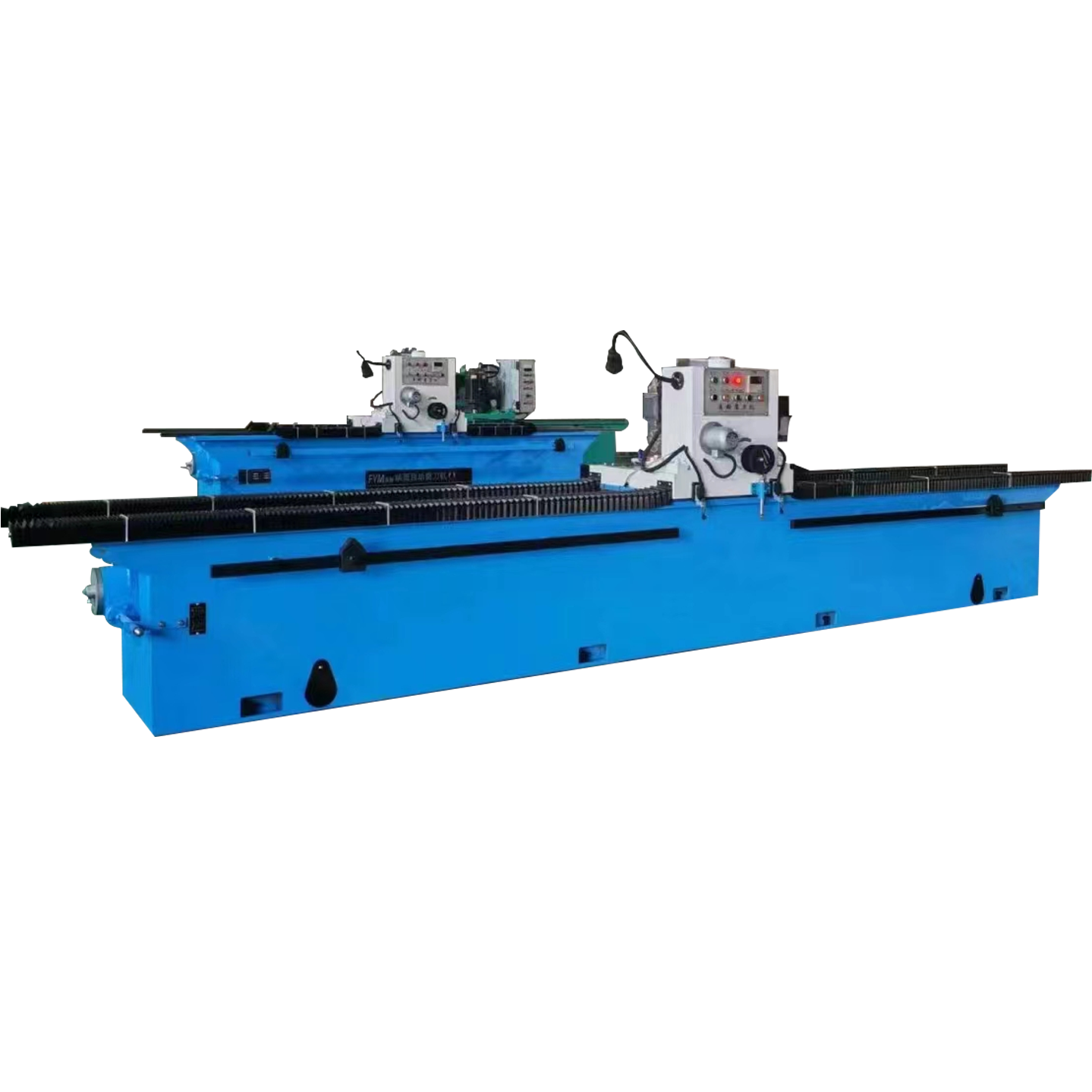

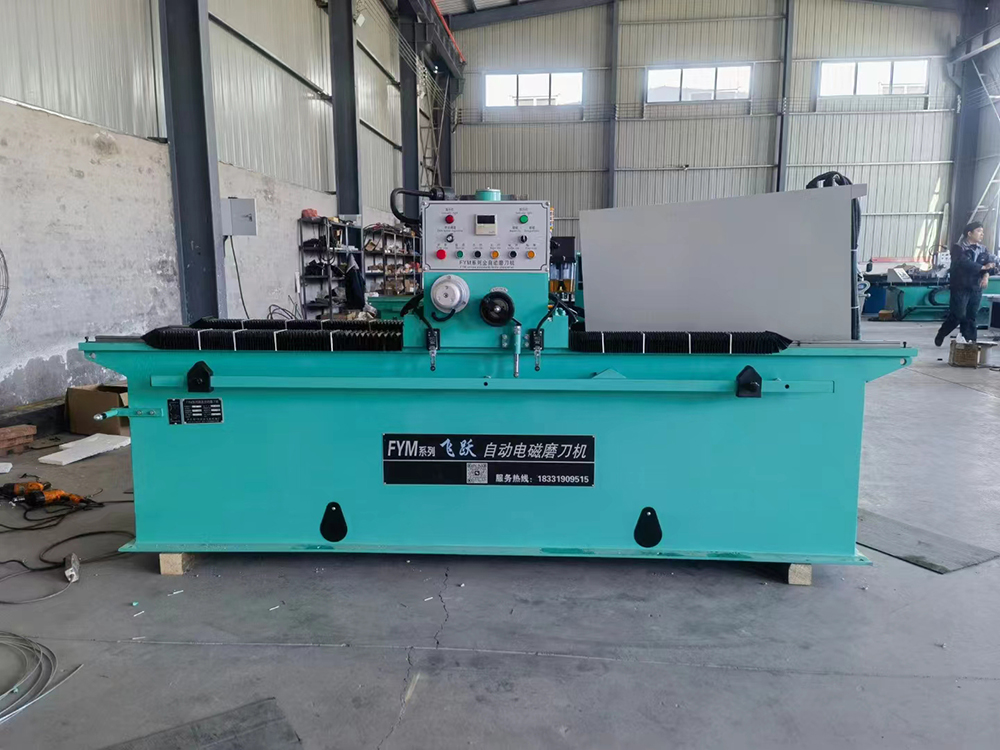

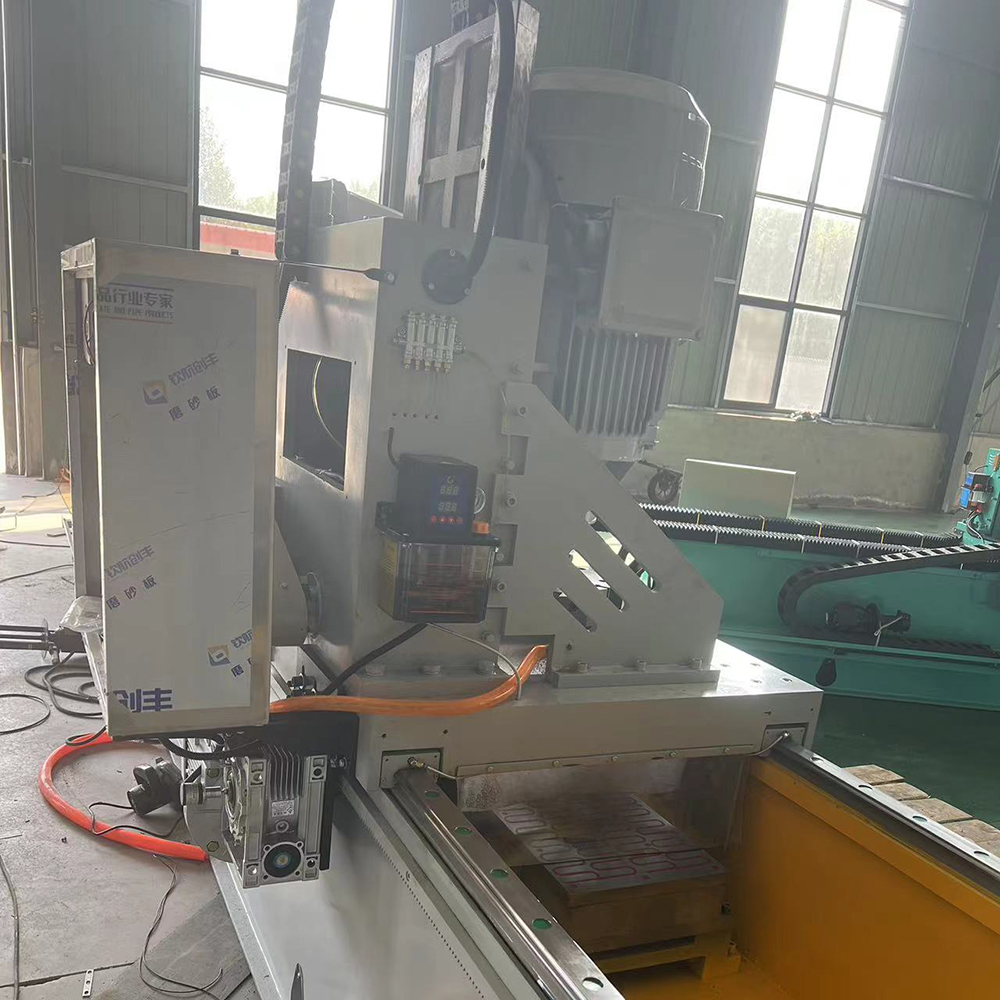

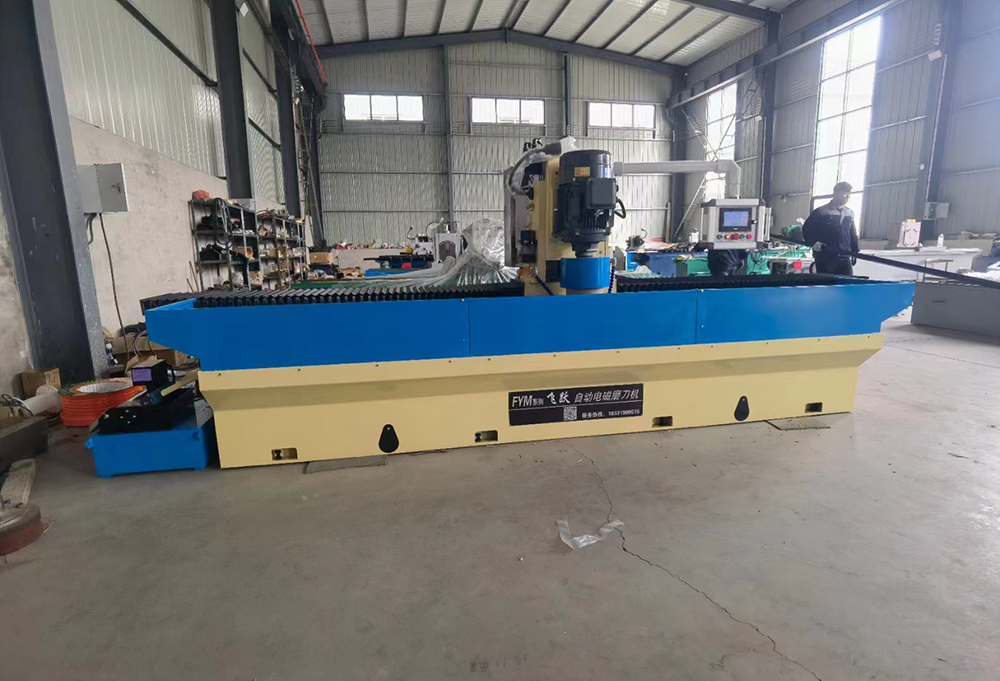

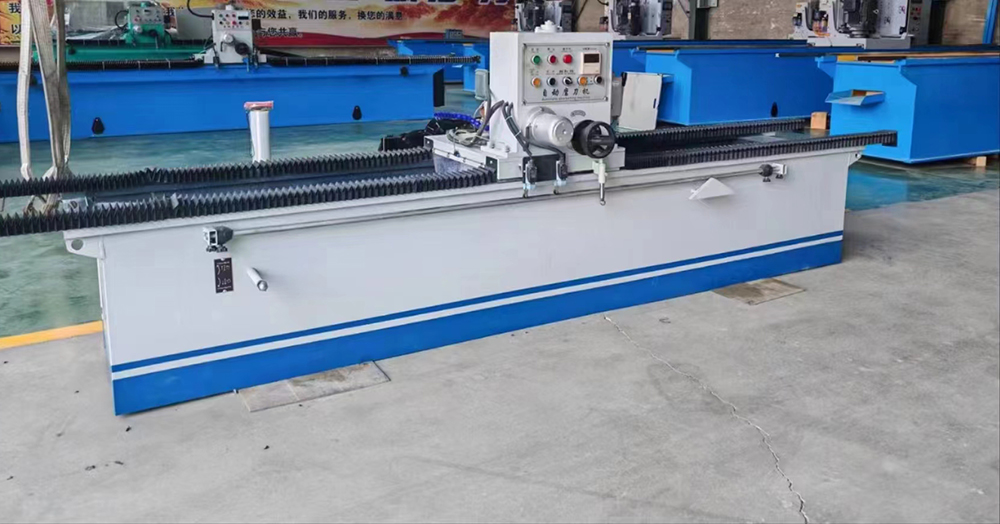

Products Pictures
