| Specification | unit | B2-2008 | |
| Maximum rotary diameter | mm | Φ240 | |
| Center height | mm | 180 | |
| Maximum weight between centers | kg | 30 | |
| Grinding wheel (max) | Outer diameter x width x inner diameter | mm | Φ500×B×Φ203 |
| Linear speed | mm/sec | 45 | |
| Grinding wheel holder | Minimum feed | mm | 0.001 |
| Worktable | Type | Double Worktable | |
| Headstock | Clamp | Hydraulic clamping | |
| Rotation speed | r/min | 30-300(Infinitely variable speed control) | |
| Total power of machine motor | kw | 7 | |
| Net weight | kg | 2100 | |
Products Features
1:Special Hydraulic Clamping Fixture: The headstock is equipped with a specialized fixture that hydraulically clamps the workpiece, ensuring stability during the grinding process.
2:High-Precision Grinding Spindle System: The grinding spindle adopts a sleeve-type hydrostatic bearing system, offering high rotational accuracy and rigidity for consistent grinding quality.
3:Plastic-Coated Guideways: The guideways feature plastic-coated technology for enhanced vibration absorption and wear resistance, improving the machine's stability during low-speed operations.
4:Ergonomic and Compact Design: The machine's layout is ergonomic, with centralized controls and an aesthetically pleasing appearance, ensuring ease of operation and high safety standards.
5:Stable Hydraulic Drive System: The hydraulic system uses a screw pump, ensuring smooth operation with minimal noise, improving the working environment.
Applications

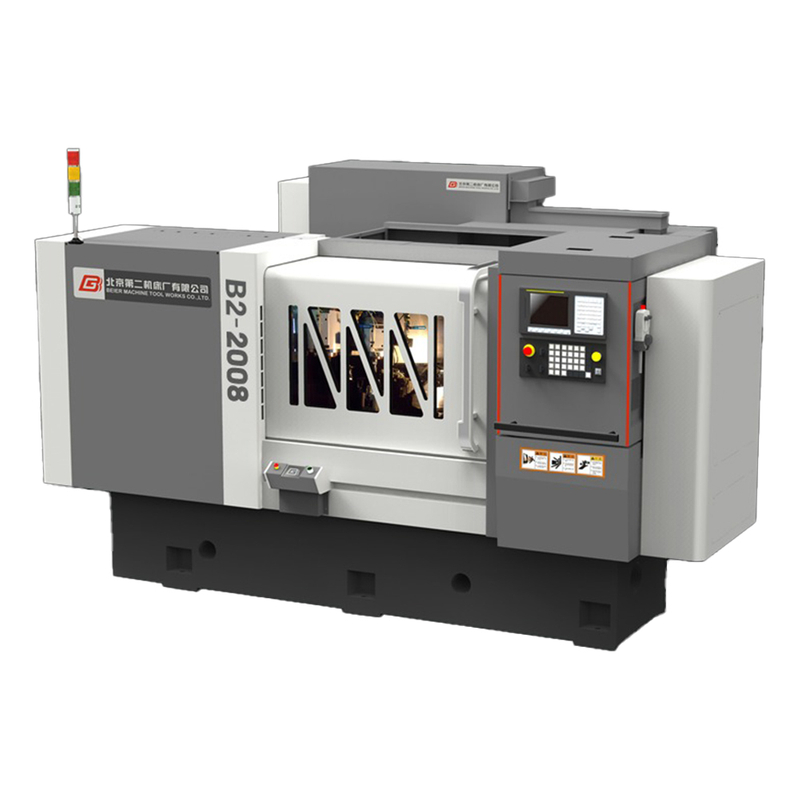

The B2-2008 Eccentric Shaft Cylindrical Grinding Machine is widely used for precision machining of small eccentric shaft parts, such as those found in compressors and engines. It is particularly suited for mass production scenarios where high accuracy and stability are required, offering users an efficient and precise grinding solution.
Products Pictures
