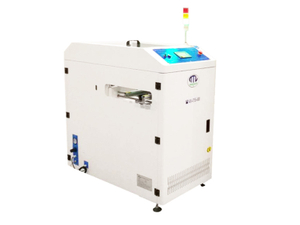

Automated Loading for Enhanced Efficiency

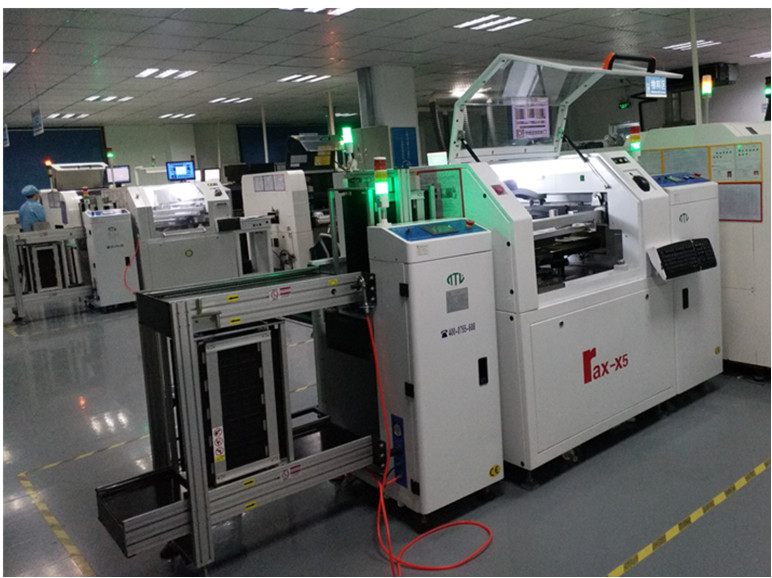

This board machine is specifically designed for automated loading in front of various SMT equipment such as automatic solder paste printers, dispensing machines, laser marking machines, and inkjet printers. By enabling full - automation and seamless integration with these machines, it significantly reduces the need for manual labor, which can lead to cost - savings and improved productivity.
Intuitive Control System
It is equipped with a PLC + human - machine touch - screen control system. This setup allows for easy digital input of various parameters. Whether it's setting the pushing time, adjusting the stepping pushing speed, or specifying the number of boards to be fed, operators can do so with great convenience.
Adjustable Pushing Force
The board machine offers the option of either a pneumatic cylinder or a motor for pushing the boards. The standard pneumatic cylinder pushing mechanism can adjust the pushing force, and for those with special requirements, a motor - driven pushing option is available upon pre - order. This adjustable pushing force feature can be set according to the thickness of the PCB, preventing damage to the PCB due to deformed material baskets.
High - Performance Lifting Mechanism
The lifting part of the machine uses an imported ball screw. This component provides several advantages, including high - speed operation, low noise during operation, high precision, and long - lasting durability, ensuring smooth and reliable vertical movement of the boards.
Practical Structure Design

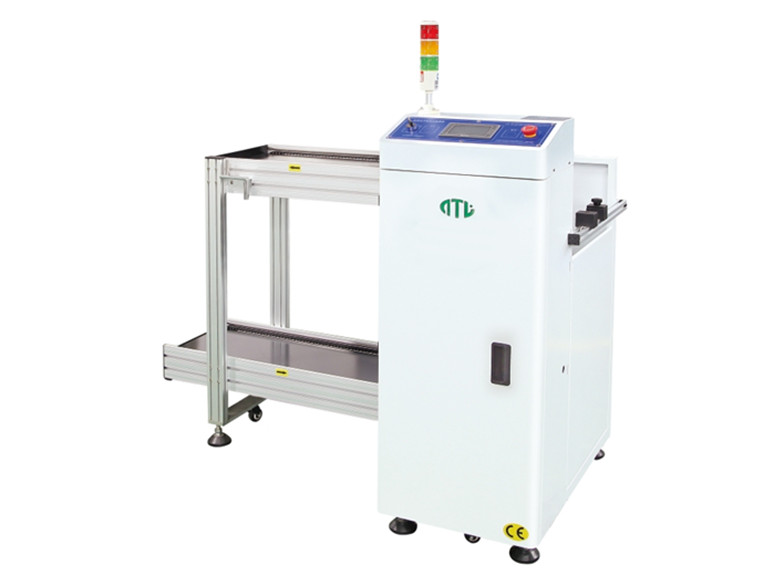

Structurally, the machine consists of two main parts: a lifting mechanism and a material basket standby track.

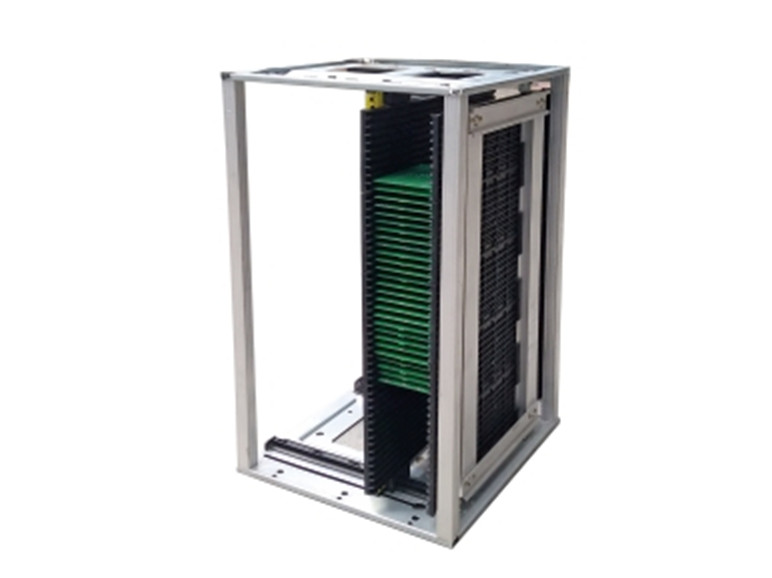

The standby track for incoming baskets can hold at least 1 basket (50 boards) according to customer requirements, while the standby track for outgoing empty baskets can store 2 empty baskets. Additionally, there is 1 basket in the lifting working area. This design allows for continuous operation for extended periods without frequent manual intervention, enabling long - term automated board feeding to subsequent machines.
| Model | NLT - 810 (General - Purpose) | NLT - 810 - L | NLT - 810 - XL | NLT - 810 - XL + 1 |
|---|---|---|---|---|
| Dimensions (L×W×H, excluding warning light height) | 1280×776×1200(mm) | 1480×856×1200(mm) | 1750×954×1200(mm) | 1750×1024×1200(mm) |
| Applicable PCB Size | 5050～L350W250(mm) | 5050～L460W330(mm) | 5050～L530W390(mm) | 5050～L530W460(mm) |
| PCB Transfer Direction | L→R or R→L | L→R or R→L | L→R or R→L | L→R or R→L |
| PCB Transfer Height | 900±20MM | 900±20MM | 900±20MM | 900±20MM |
| Transfer Speed | ＞10 pieces/min | ＞10 pieces/min | ＞8 pieces/min | ＞8 pieces/min |
| Applicable Material Basket Size | 355320563MM | 460400563MM | 535460570MM | 535530570MM |
| Power Supply | 1P AC220V 50/60HZ, 0.25KW | 1P AC220V 50/60HZ, 0.25KW | 1P AC220V 50/60HZ, 0.35KW | 1P AC220V 50/60HZ, 0.35KW |
| Standby Basket Quantity | 2 full baskets waiting to be loaded on the lower layer + 1 empty basket waiting to be unloaded on the upper layer+ 1 basket in the lifting working area | 2 full baskets waiting to be loaded on the lower layer + 1 empty basket waiting to be unloaded on the upper layer+ 1 basket in the lifting working area | 2 full baskets waiting to be loaded on the lower layer + 1 empty basket waiting to be unloaded on the upper layer+ 1 basket in the lifting working area | 2 full baskets waiting to be loaded on the lower layer + 1 empty basket waiting to be unloaded on the upper layer+ 1 basket in the lifting working area |
| Control Method | PLC + Touch Screen | PLC + Touch Screen | PLC + Touch Screen | PLC + Touch Screen |
| Communication Interface | SMEMA | SMEMA | SMEMA | SMEMA |
| Weight | Approx.210Kg |
