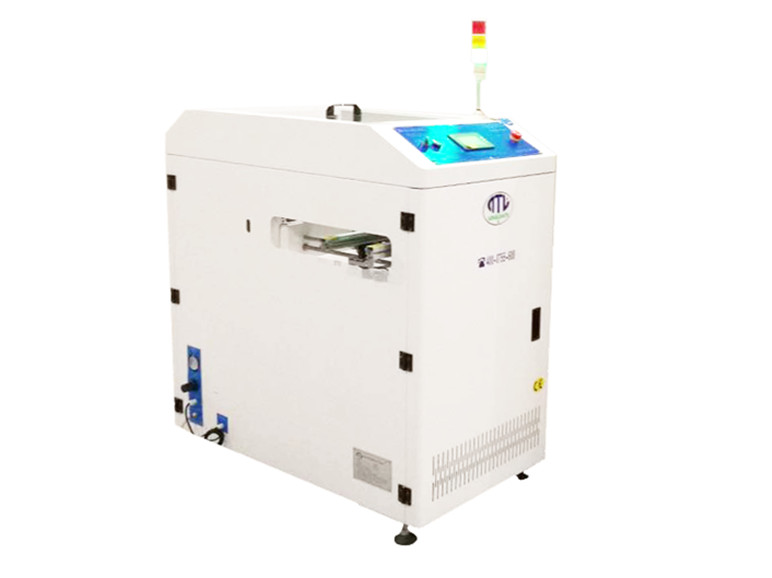

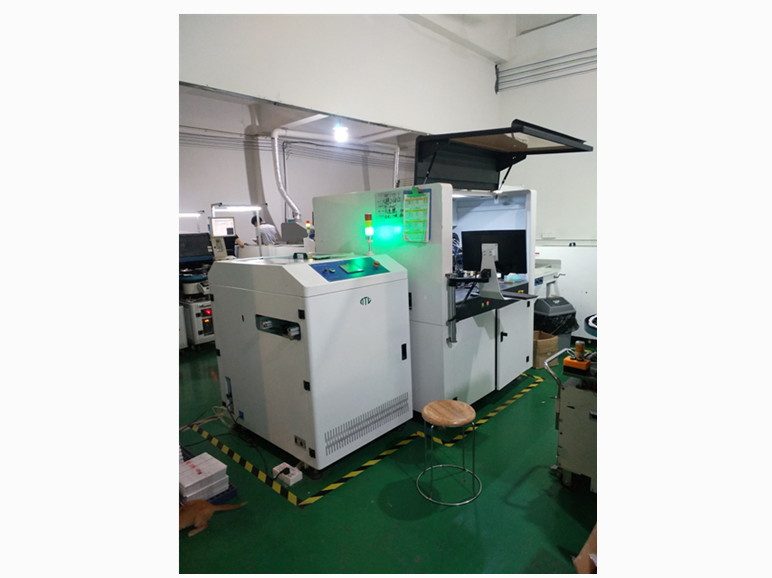

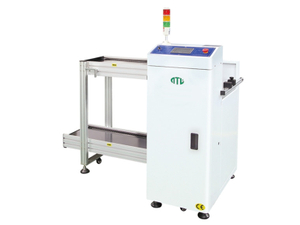

System Composition: The machine is composed of four main systems: a lifting platform, a vacuum board - sucking system, a translation drive system, and a track transfer system. This integrated structure enables smooth and efficient board - loading operations.
Operating Process: The working process involves the lifting platform supplying the boards. Then, the vacuum system sucks the board, moves it to the track through translation, turns off the vacuum, and releases the board. This cycle repeats continuously.
Special Function: When handling double - sided boards, it can be switched to a through - feed mode, similar to the function of a station, which provides flexibility in production.
Customizable Design: It can be customized according to different PCB sizes and specific user requirements, making it suitable for a wide range of applications.
Versatile Compatibility: It is applicable to various SMT, DIP, or assembly production lines for automatic board - loading, enhancing production line efficiency.
High - Quality Components: The machine uses pneumatic components from internationally renowned brands. It can convert compressed air directly into vacuum for use without the need for an additional vacuum machine, reducing equipment complexity and cost.
Stable Control System: It is equipped with a high - performance PLC control system. This system ensures stable operation and has strong anti - electromagnetic interference capabilities, making the machine reliable in different production environments.
User - Friendly Interface: The human - machine interface allows for easy operation. It enables convenient parameter setting, such as transportation delay, counting, and debugging stroke. Additionally, the working status can be monitored through IO, providing real - time information to operators.
Reliable Power Supply: The use of a Taiwan - Mingwei DC switching power supply for independent power supply to photoelectric sensors and stepper motors improves the overall stability of the equipment, ensuring accurate and consistent operation.
Durable Structure: The machine frame is made of δ2MM cold - rolled steel plate through laser processing, CNC stamping, carbon dioxide arc welding, plastic spraying, and fine assembly processes. This construction results in a robust and durable structure.
Standard Communication Interface: It is equipped with an SMEMA standard signal interface as standard, enabling seamless online automated connection with other equipment and facilitating the integration of the entire production line.
| Model | NLT - 810 - XP (Conventional) | NLT - 810 - XPL | NLT - 810 - XP - XL | NLT - 810 - XP - LED |
|---|---|---|---|---|
| Dimensions (L×W×H, excluding warning light height) | 600×900×1250(mm) | 750×1206×1250(mm) | 950×1206×1250(mm) | 1500×1206×1250(mm) |
| Applicable PCB Size | 5050～L350W300(mm) | 5050～L500W460(mm) | 5050～L700W460(mm) | 5050～L1200W460(mm) |
| PCB Transfer Direction | L→R or R→L | L→R or R→L | L→R or R→L | L→R or R→L |
| PCB Transfer Height | 900±20MM | 900±20MM | 900±20MM | 900±20MM |
| Transfer Speed | ＞8 pieces/min | ＞8 pieces/min | ＞7 pieces/min | ＞5 pieces/min |
| Air Source Pressure | 4 - 8KG | 6 - 8KG | 6 - 8KG | 6 - 8KG |
| Power Supply | 1P AC220V 50/60HZ | 1P AC220V 50/60HZ | 1P AC220V 50/60HZ | 1P AC220V 50/60HZ |
| Control Method | PLC + Touch Screen | PLC + Touch Screen | PLC + Touch Screen | PLC + Touch Screen |
| Communication Interface | SMEMA | SMEMA | SMEMA | SMEMA |
| Weight | Approx.140Kg | Approx.170Kg | Ap |
