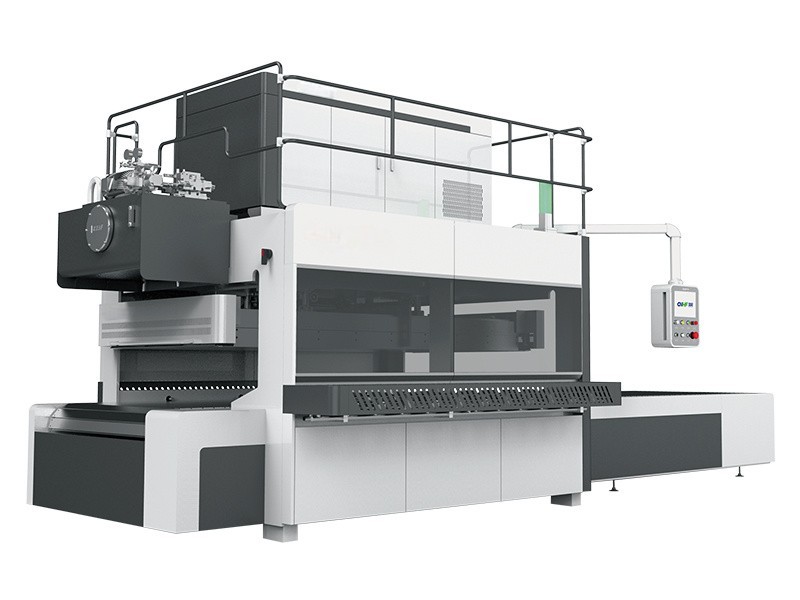

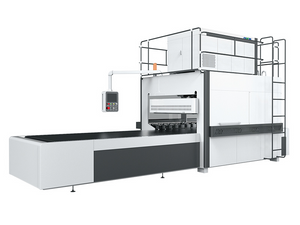

(Push Type)High Frequency Flat Lift Splicing Machine

The High - Frequency Planar Vertical - Lift Push - Type Panel Joining Machine is a cutting - edge piece of equipment in the woodworking machinery industry. It offers a range of features that set it apart from traditional panel joining machines, making it a highly efficient and reliable choice for various wood - joining applications.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

Superior Planarity: The upper - pressing platform of this machine uses a vertical - lift mechanism with a synchronous device. This design ensures far better planarity compared to ordinary high - frequency planar panel joining machines. As a result, the material yield rate is significantly increased, which is a major advantage in cost - effective production.
Rapid Shaping: It enables quick shaping of joined panels. With a short cycle time of 2 - 3 minutes per panel, it can efficiently handle a large volume of work. In winter, its performance is particularly outstanding, with a much higher efficiency compared to common panel joining machines.
Easy Operation: The machine is designed for user - friendliness. It comes with either a button - type or touch - screen human - machine interface (configurable according to needs). The touch - screen configuration, in particular, features comprehensive software functions, a friendly interface, and automatic heating - current adjustment. It also supports system upgrades and remote operation, making it convenient for operators to control the machine.
Automated Feeding: It has an automatic feeding and discharging system. The discharging is done through stainless - steel rollers, which ensures smooth material handling, reduces manual labor, and improves production efficiency.
High - Quality Construction: The machine's frame is manufactured using a five - face machining center, ensuring high - precision and durable construction. The high - frequency part is equipped with a separate cabinet, which not only makes maintenance and repair safer and more convenient but also enhances the overall reliability of the machine.

Technical Specifications

Model	CGPB - 45PZ	CGPB - 58PZ	CGPB - 48PZ	CGPB - 80PZ	CGPB - 90PZ	CGPB - 110PZ
Workbench Size (mm)	2500x1300	2500x1300	3200x1300	4200x1300	5000x1300	6000x1300
Joining Thickness (mm)	8 - 50	8 - 80	8 - 50	10 - 80	10 - 50	8 - 50
Upper Pressure (t)	20	20	20	30	40	50
Back Pressure (t)	25	38	28	50	50	60
Overall Dimensions (mm) (L)x(W)x(H)	8700x4400x2300	8700x4400x2300	10200x4400x2300	13200x4400x2300	15600x4400x2400	18200x5200x2400
Weight (t)	6.3	6.5	7.5	9.5	12	15
Feeding Mode	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic

Application Scope

This machine is widely applicable in the woodworking industry. It can be used for finger - jointing lumber, solid - wood edge - banding, edge - banding for door frames and jambs, assembling door - frame moldings, and joining door - core panels. Its versatility makes it an essential tool for wood - processing enterprises aiming to produce high - quality wooden products.
