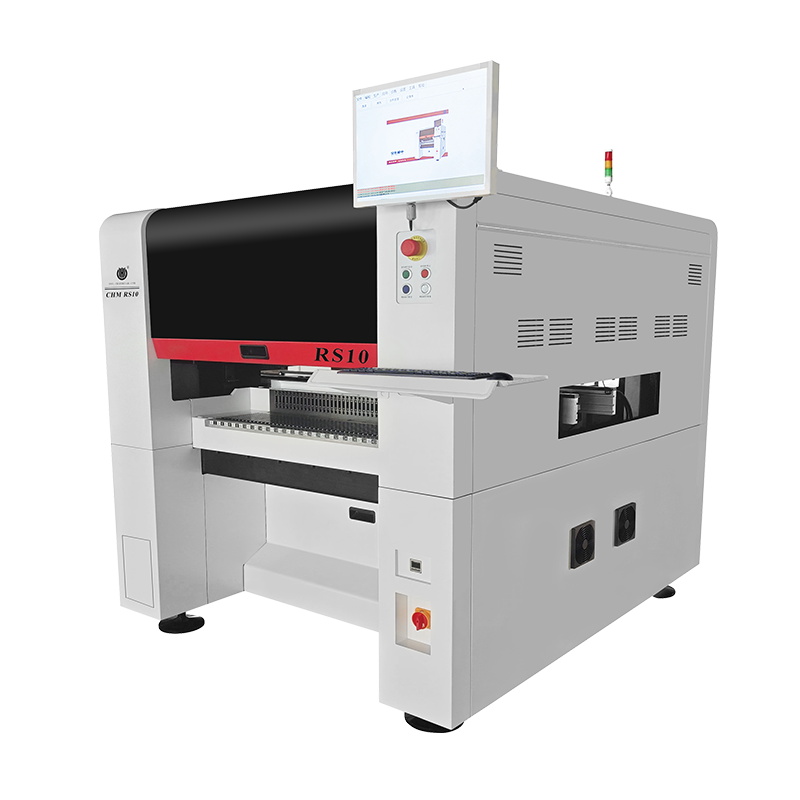

Maximum speed: 45000CPH (under the best conditions of our company)
Mounting accuracy: (xy) ± 0.035mm CPK>1.0
Mounting range: It can ensure stable and high-precision mounting of minimum 01005 and large-sized components
Optional: Blue light scanning lens mounting 1.2m PCB mounting production
Y-axis dual linear motor drive
Y-axis dual linear motor, silent guide rail.
Support CPK
Process capability indicators ensure high-quality SMT production.
Large size component identification (easy to pick up, identify, and accurately mount)
When it exceeds the recognition area of the IC camera, it supports segmentation recognition and automatically forms a complete device image
ANC (automatic nozzle replacement)
Automatic nozzle allocation and nozzle replacement. When used in general, it can reduce the number of installation cycles and improve production efficiency.
Automatic thermal compensation correction system
Regularly monitor the accuracy and automatically adjust compensation to ensure the stability of equipment installation.
| Parameter | Details |
|---|
| External Dimensions | 1600mm(L) × 1688mm(W) × 1560mm(H) |
| Weight | 1930kg |
| Power Supply | AC380V(50Hz, Three - phase), Power 4.5kw |
| Air Source | 0.5MPa - 0.7MPa |
| Vacuum Generation | Built - in Vacuum Pump |
| Number of Mounting Heads | 10 |
| Mounting Speed | 45000CPH (Under Company's Optimal Conditions) |
| Mounting Precision | (xy)±0.035mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Types | Resistors, Capacitors, Resistor Arrays, Cylindrical Diodes, Aluminum Capacitors, SOT, SOP, QFP, QFN, BGA, etc. |
| Component Range | Imperial 0201 to 36mmX36mm, and Super - large Component Mounting |
| PCB Thickness | 0.6mm - 3.5mm |
| PCB Dimensions | 600mm(length)×400mm(width) (Standard); 1200mm(length)×400mm(width) (Optional) |
| PCB Conveyance | 3 - stage Track Automatic Conveyance, PCB Support Device |
| Nozzle Change | Automatic Change (31 - hole Nozzle Magazine) |
| Control System | Built - in Industrial Computer (Running Windows 7), with Display, Keyboard, Mouse |
| Drive System | X - axis Driven by Servo Motor (Y - axis Driven by Dual Linear Motors) |
| Transmission System | X, Y - axis Using THK Ground Lead Screws and THK Silent Linear Guides |
| Feeding System | 100 NXT 8mm Standard Feeder Installation Positions (Can Install IC Trays and Vibration Feeders) |
| Vision System | 10 Flying Cameras (Applicable Component Size: 16mm×16mm)
1 IC Camera (Applicable Component Size: 36mm×36mm, Supports Large - component Segmentation Recognition Function)
2 Mark Cameras |
