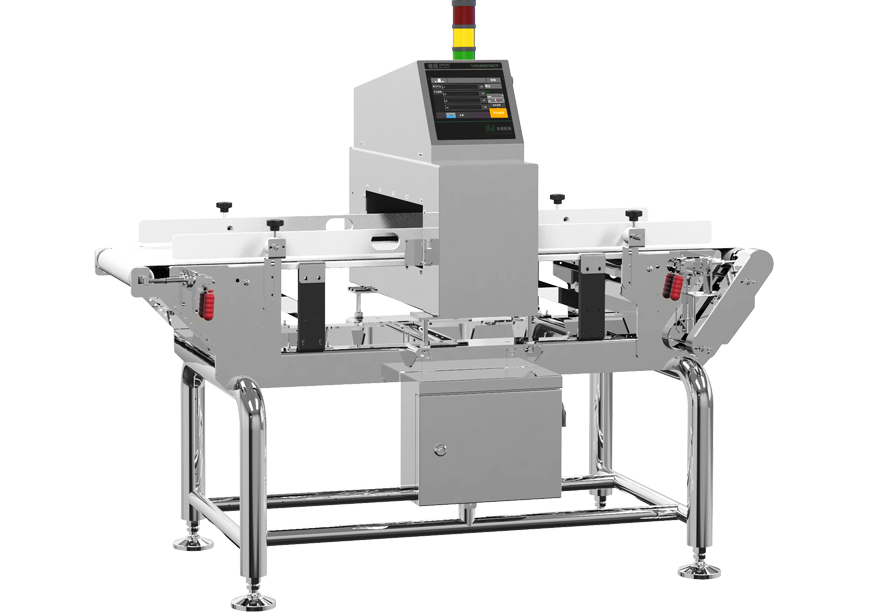

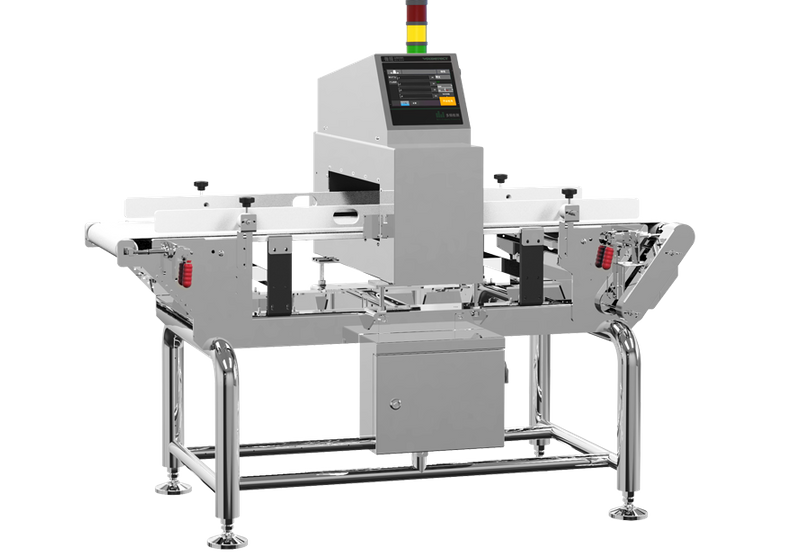

Standard Metal Detector

Key Features

1. Versatile Metal Detection: It is capable of detecting a wide range of metal foreign objects, such as iron, stainless - steel, copper, aluminum, and tin. This comprehensive detection ability ensures that products are thoroughly screened for potential metal contaminants, safeguarding product quality.

2. Customizable Sizing: Different models are available to meet diverse requirements. For example, in the model VMD - C2508, the effective detection width is 25 cm and the effective detection height is 8 cm. The extensive range of models with varying effective detection widths (from 25 cm to 110 cm) and heights allows users to select the most suitable detector according to their specific product dimensions.

3. Intelligent Operation: The detector features fully automatic learning, eliminating the need for manual phase setting. This simplifies the operation process and reduces the possibility of human - error during setup.

4. Multi - frequency and Working Modes: With a frequency range of 4 frequencies from 50K to 800K and multiple working modes (including dry, wet, saline, and aluminized film modes), it can adapt to different product characteristics and production environments. This adaptability ensures accurate metal detection under various conditions.

5. Ample Product Recipe Storage: It can store up to 200 groups of product recipes. This feature enables quick and easy switching between different product detection settings, improving production efficiency.

6. User - friendly Interface: Equipped with a 7 - inch touch - screen for human - machine interaction and an embedded RTOS operating system, the detector offers an intuitive and convenient operation experience. Operators can easily access functions, view detection results, and adjust settings.

7. Adjustable Conveyor Speed: The conveyor speed can be adjusted via software, ranging from 5 to 60 meters per minute. This flexibility allows for seamless integration with different production lines, ensuring smooth product flow during the detection process.

8. Flexible Alarm and Sorting Options: It provides multiple alarm methods, including audible and visual alarms, alarm - triggered machine stoppage, and an optional automatic sorting system. This ensures that when metal impurities are detected, appropriate actions can be taken promptly to isolate defective products.

9. High - Quality Construction: The conveyor belt surface height is 800±50mm, and the belt material can be selected as food - grade PU or chain plate. The entire machine is made of 304 stainless - steel, ensuring durability and resistance to corrosion. Additionally, it has excellent dust - proof and waterproof performance, with an IP66 rating for the whole machine and an IP67 rating for the motor.

10. Rich External Interfaces: It offers a variety of external interfaces, such as USB, network port, RS232 serial port, RS485, and optional 4G remote connection and support for unmanned production lines. This enables easy data transfer, remote monitoring, and integration with other production - related equipment.

Technical Specifications
