| Specification | Unit | TPX6111B | TPX6111B/2 | TPX6111B/3 | TPX6111B/3 |
| Boring spindle diameter | mm | 110 | 110 | 110 | 110 |
| Spindle taper | / | Morse No6 (ISO 7:24 No50) | (ISO 7:24 No50) | (ISO 7:24 No50) | ISO 7:24 No50 |
| Maximum spindle torque | N.m | 1225 | 1225 | 1225 | 1250 |
| Maximum turntable torque | N.m | 1960 | 1960 | 1960 | 1960 |
| Maximum spindle axial resistance | N | 12250 | 12250 | 12250 | 12250 |
| Maximum spindle travel | mm | 600 | |||
| Spindle speed series | 22 | 22 | 22 | ||
| Spindle speed range | r/min | 8-1000 | 8-1000 | 8-1000 | 8-1100 |
| Travel of turntable slider | mm | 180 | 180 | 180 | 180 |
| Working area of worktable | mm | 1100×960 | 1100×960 | 1250×1100 | 1250×1100 |
| Maximum weight that worktable can bear | kg | 2500 | 2500 | 3000 | 3000 |
| Longitudinal | mm | 1000 | 1000 | 1400(Without rear column) | 1400(Without rear column) |
| Lateral | mm | 900 | 1250 | 1600 | 1600 |
| Spindle, spindle box, worktable longitudinal and lateral speed | mm/min | 2500 | 2500 | 2500 | 2500 |
| Feed range of spindle, spindle box, worktable per spindle revolution | mm/r | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 |
| Feed range of spindle, spindle box, worktable slider | 0.32-2500 | ||||
| Main motor power | kW | 7.5 | 7.5 | 7.5 | 15 |
| Machine tool dimensions (length × width × height) | mm | 4910*2454*2750 | 4910*2870*2750 | 5120*3380*3100 | 5120*3380*3100 |
| Machine tool weight | kg | 13000 | 14500 | 18000 | 18000 |
Products Features
1: High Precision Operations: The TP611 boring machine is equipped with a digital display system that ensures high precision and consistency in every operation, significantly improving machining accuracy and efficiency.
2: Multifunctional Machining: This machine can perform various cutting operations such as drilling, reaming, boring, broaching, milling flat surfaces, counterboring, and threading, catering to different machining needs.
3: Powerful Radial Feeding Capability: The facing slide can feed radially, allowing for the boring of large holes, turning of outer circles, and grooving, making it widely applicable.
4: Stable Working Performance: The machine is robustly designed to handle large workpieces, maintaining stability and high efficiency during prolonged operations.

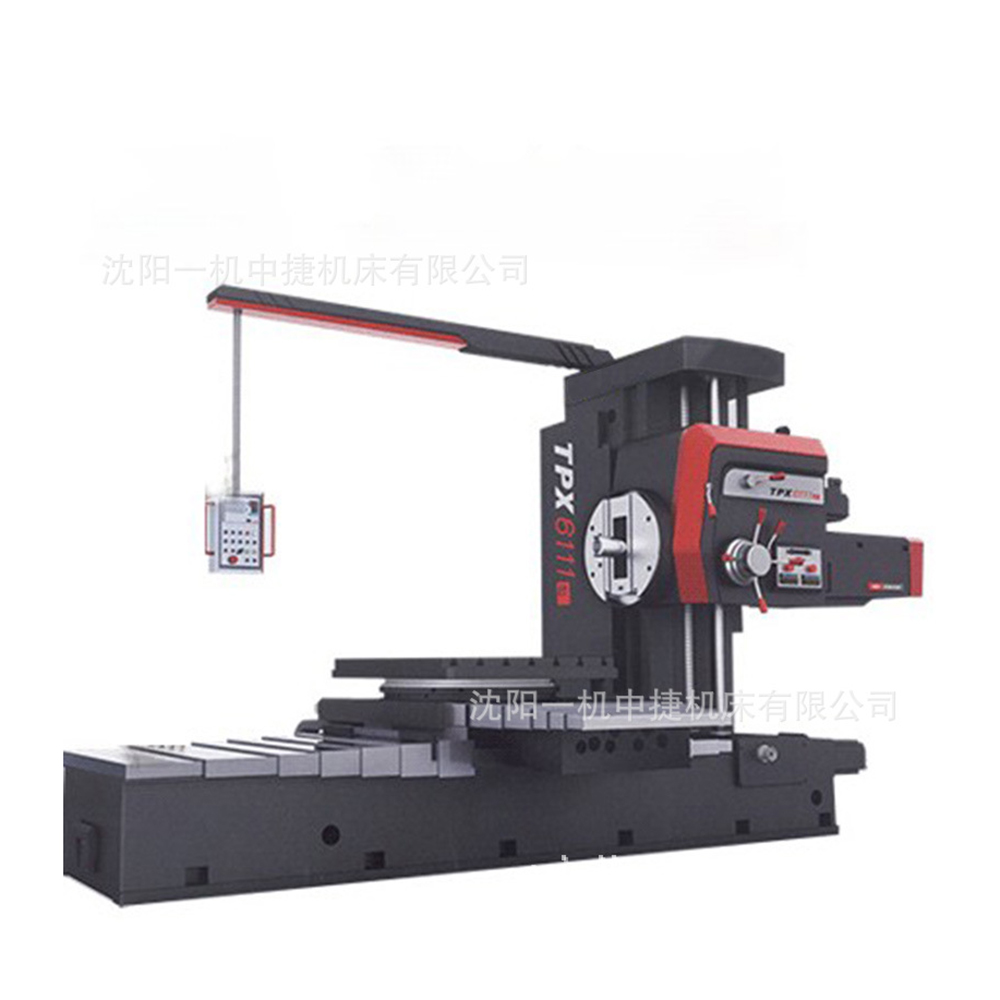

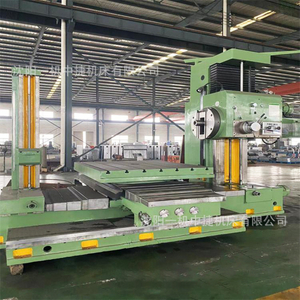

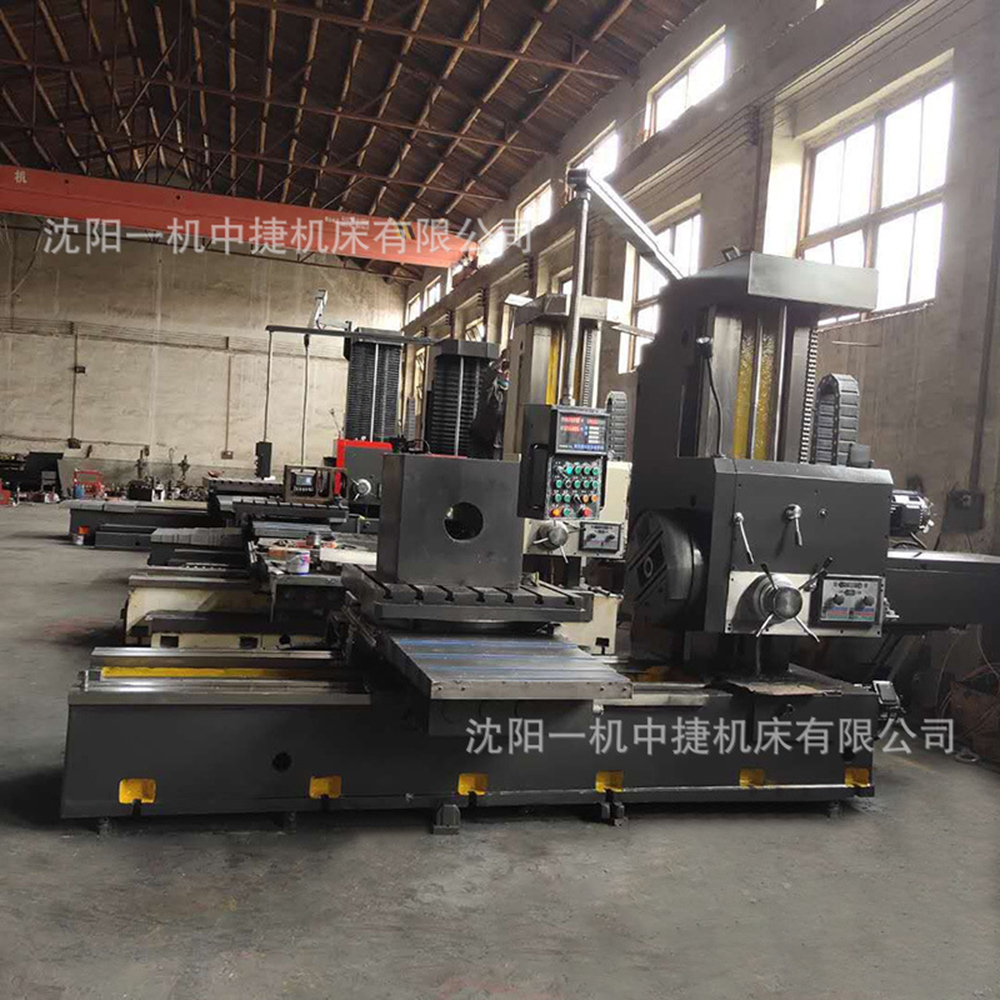

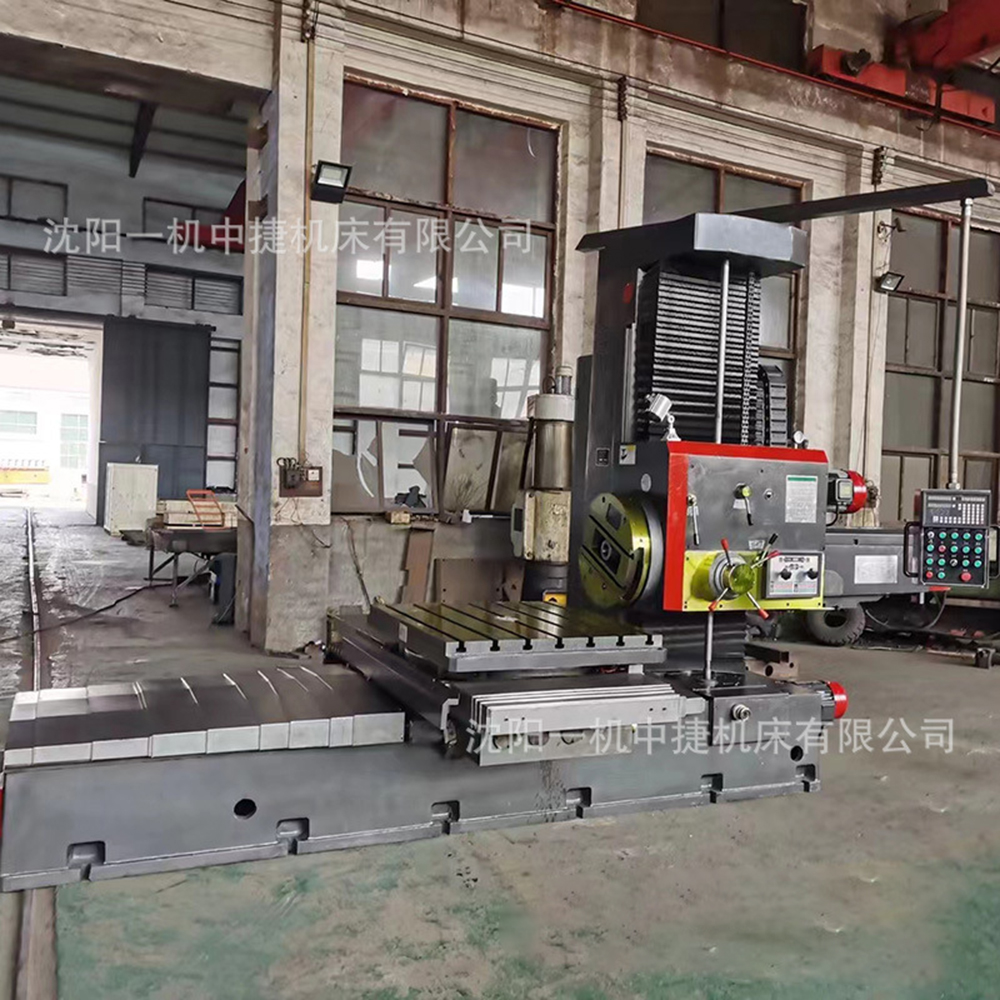

Products Pictures
