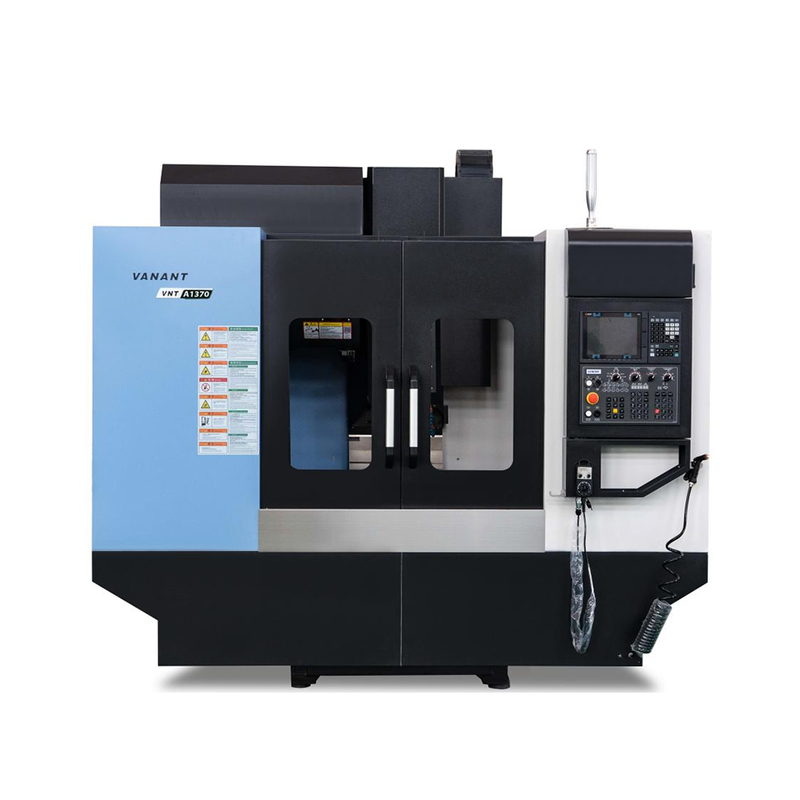

Front view of 3 axis vertical machining center for precision CNC machining
Front view of 3 axis vertical machining center for precision CNC machining Front view of 3 axis vertical machining center for precision CNC machining

loading

Vanant A1370 Vertical Machining Center

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The A1370 Vertical Machining Center features a wide-span structural design, offering excellent rigidity and stability for efficient machining of medium to large components, molds, and structural parts. Equipped with high-torque spindles, both belt-drive and direct-drive options are available. Various configurations meet diverse processing requirements, making it ideal for automotive parts, general machinery, and more.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:


1: Wide-span structure enhances machining stability

2: Belt-drive or direct-drive spindle options for diverse cutting needs

3: Supports center-through coolant and 4th axis extension for flexible processes

4: High rapid feedrate improves efficiency

5: Equipped with rigid tapping, automatic lubrication, and fast tool change


Technical Parameter


ItemUnitA1370
X-axis Travelmm1300
Y-axis Travelmm700
Z-axis Travelmm700
Table Sizemm1400×700
Table to Spindle Distancemm150×750
Spindle Speedrpm6000 / 8000 / 10000 / 12000 / 15000
Spindle Taper-BT40 / BT50
Rapid Feedrate (X/Y/Z)m/min24 / 24 / 24
Guideway Type (X/Y/Z)-X/Y/Z Box-type
Guideway Width (X/Y/Z)mm55 / 45 / 55
Ballscrew Diameter (X/Y/Z)mmX:Φ4012, Y:Φ4012, Z:Φ40*12
Ballscrew Lead (X/Y/Z)mm10月12日
Tool CapacityEA24
Tool Change Time (adjacent)sec1.8
Positioning Accuracymm±0.007
Repeatabilitymm±0.003
Machine Dimensions (L/W/H)mmAs actual
Machine WeightTApprox. 10
Controller-Mitsubishi M80B / FANUC 0i-MF-PLUS
