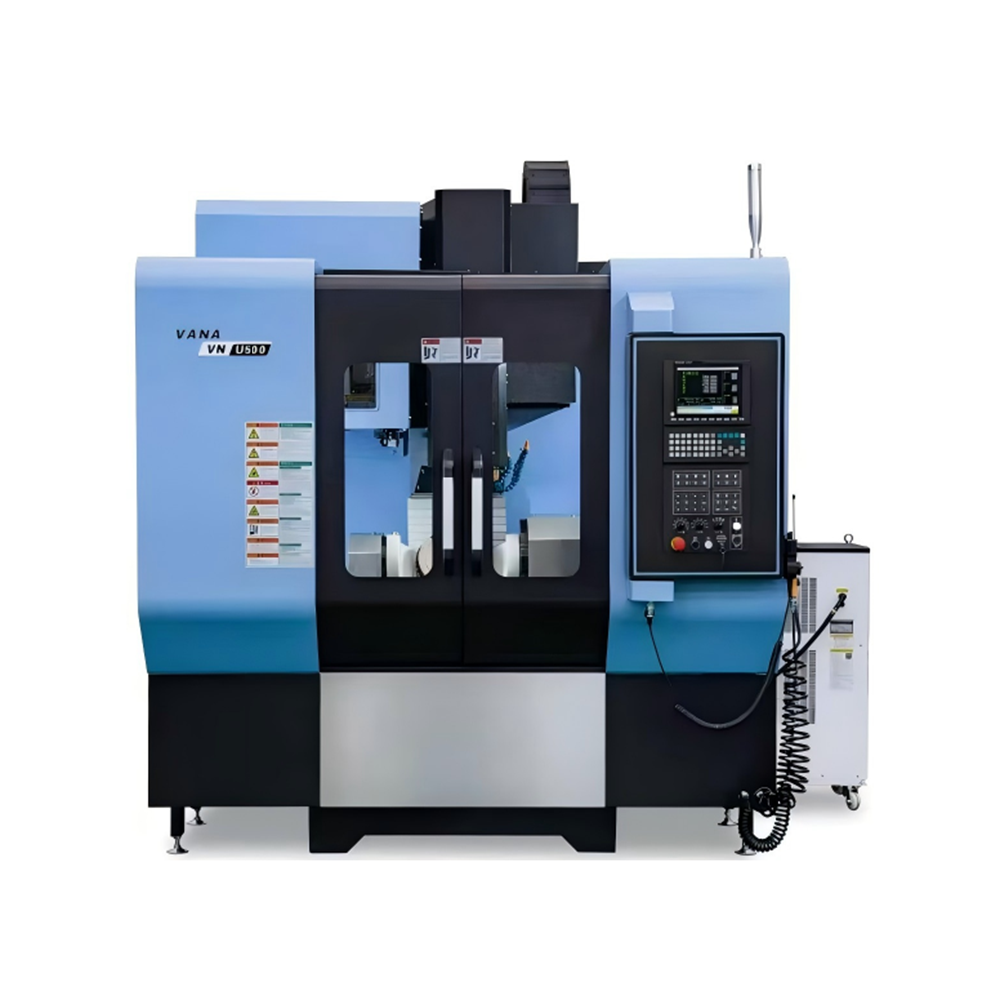

Vanant U500 Five-axis Machining Center

The U380/U500/U600 series 5-axis machining centers are designed for high-speed, high-precision, and wide-range cutting applications. Ideal for precision component manufacturing, their compact structure and flexible specifications meet various workpiece and machining needs, enhancing efficiency and stability.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: High-speed, high-precision structure design for complex parts machining.

2: Wide tilting and rotary table range to meet multi-face machining needs.

3: Various spindle speeds and taper options for diverse material applications.

4: Rich configurations ensure stable cutting performance and excellent rigidity.

5: Flexible NC controller options to adapt to diverse process requirements.

Standard Configuration:

HSK-A63 direct-drive spindle 15000rpm、Disc type 32 tools magazine、Automatic lubrication system、Ethernet communication、LED work light、Rigid tapping、Manual pulse generator

Optional Configuration：

Optional direct-drive spindle 12000rpm、Chain-type chip conveyor、Automatic tool measuring system

Technical Parameter

Item	Unit	U380	U500	U600
Table Diameter	mm	260	320	400
Table Distance	mm	400	500	590
Z-axis Travel	mm	330	550	550
Tilting Angle	°	-120°~+120°	-120°~+120°	-110°~+110°
Table to Spindle Distance	mm	55*385	10*560	10*600
Spindle Speed	rpm	12000/15000/18000/20000	Same	Same
Spindle Taper	-	BBT40 / HSK-A63	Same	Same
Tilting Accuracy	sec	±10′	±20′	±20′
Re-Tilting Accuracy	sec	±5′	±4′	±4′
Rotary Accuracy	sec	±10′	±20′	±20′
Re-Rotary Accuracy	sec	±5′	±4′	±4′
Table Load	kg	60	60	200/100
Ballscrew Diameter (X/Y/Z)	mm	X/Y:Φ2812，Z:Φ3212	X/Y/Z:Φ40*12	X/Y/Z:Φ40*12
Ballscrew Lead (X/Y/Z)	mm	10/12	10/12	10/12
Tools Capacity	EA	24	32	32
Tool Change Time (adjacent)	sec	1.8	1.8	1.8
Machine Dimension	mm	As actual	As actual	As actual
Machine Weight	T	Approx. 4	Approx. 6	Approx. 8
Controller	-	Syntec、LNC、Siemens	Syntec、LNC、Siemens	Syntec、LNC、Siemens
