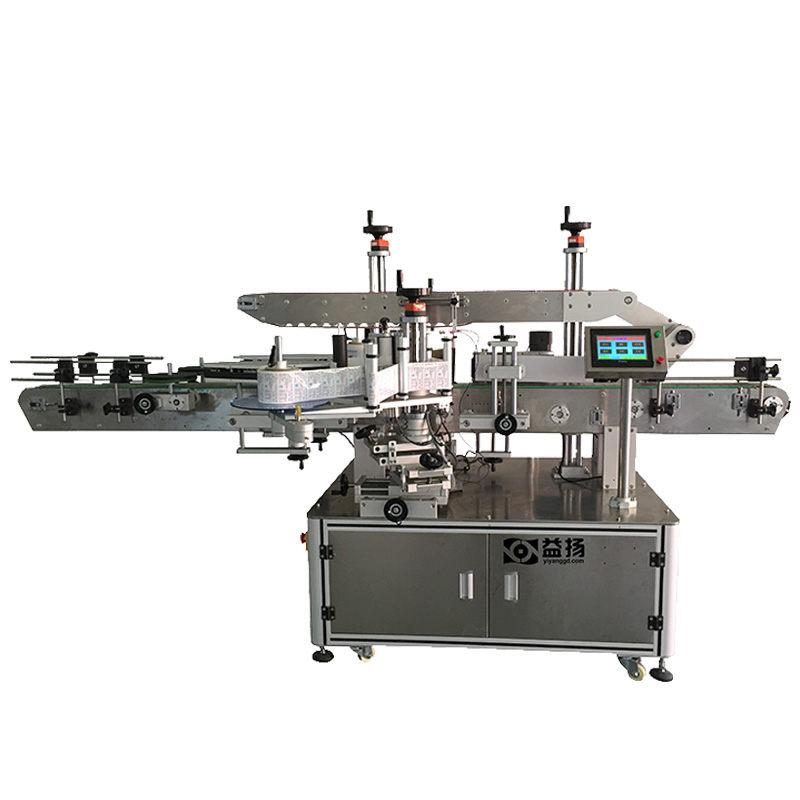

Versatile Labeling Capabilities: This machine can perform single - side, double - side, and circumferential labeling for a wide range of products. It is compatible with different types of labels, including dry glue labels, self - adhesive films, electronic supervision codes, and barcodes. This versatility makes it suitable for numerous labeling applications in multiple industries.
User - friendly Design:
It is equipped with a human - friendly touch - screen. The operation is straightforward, and the screen offers comprehensive functions. For example, it allows easy adjustment of labeling parameters such as label length, width, and speed.
The automatic bottle - separating mechanism is another highlight. Before guiding the bottles, it automatically adjusts the spacing between them, ensuring stable subsequent guiding, conveying, and labeling processes.
Precision and Stability:
The machine uses double - sided rigid plastic synchronous guiding chains. This design ensures the centering of bottles automatically, reducing the requirements for workers to place bottles and for the connection with the production line. It can be used for standalone production or integrated into a production line.
The elastic - pressure top - pressing mechanism guarantees smooth product conveyance. It effectively compensates for the height differences of products, ensuring consistent labeling quality.
With a labeling accuracy of ±1mm, the YT - 71300 is highly precise. It also features a dual - stage label - applying mechanism. The first stage ensures accurate label placement, and the second - stage extrusion - type label - applying effectively eliminates air bubbles and ensures that the label adheres tightly at both ends.
Reliable Control System: The high - precision electrical control system, composed of components like Panasonic PLC, Weinview touch - screen, Panasonic needle - shaped photoelectric sensors, and Leuze/Italian Tesa label sensors, enables the device to operate stably for 7 * 24 hours. It also has intelligent control functions such as automatic photoelectric tracking, which prevents label waste by not labeling when there is no product.
Optional Functions: It offers a variety of optional functions and components to meet different production requirements. These include thermal coding/inkjet coding, automatic loading and unloading, and additional labeling devices. These options can be customized according to specific customer needs.
Durable and Hygienic: The main materials of the machine are stainless steel and high - grade aluminum alloy. This construction not only makes the machine comply with GMP production standards but also ensures its overall structural strength and aesthetic appearance.
| Parameter | Details |
|---|---|
| Model | YT - 71300 |
| Labeling Accuracy | ±1mm |
| Applicable Label Length | 20mm - 220mm |
| Label Ejection Speed | 5 - 25m/min |
| Applicable Label Width | 20mm - 150mm |
| Labeling Speed | 30 - 150pcs/min |
| Applicable Product Length | 20mm - 250mm |
| Conveying Speed | 5 - 35m/min |
| Applicable Product Width | 30mm - 90mm |
| Weight | 370kg |
| Applicable Product Height | 60mm - 280mm |
| Power Supply | 220V 50HZ |
| Applicable Product Diameter | 40mm - 110mm |
| Power | 2KW |
| Applicable Label Roll Outer Diameter | Φ280mm |
| Conveyor Belt Direction | From left to right |
| Applicable Label Roll Inner Diameter | Φ76mm |
| Equipment Dimensions | 300014001600mm |
Applicable Labels: Dry glue labels, self - adhesive films, electronic supervision codes, barcodes, etc.
Applicable Products: Products that require labels to be attached to side planes, sides, large - arc surfaces, or circumferences. Examples include flat - shaped shampoo bottles, flat - shaped lubricant bottles, square - shaped mineral water bottles, and Jing wine bottles.
Application Industries: Widely used in industries such as printing, cosmetics, food, toys, daily chemicals, electronics, plastics, and pharmaceuticals.
