Product Specification
| Specification | unit | Z30100×31 | Z30125×40 |
| Maximum drilling diameter | mm | 100 | 125 |
| Distance from spindle centerline to column busbar | mm | 570-3150 | 600-4000 |
| Distance from spindle end face to base Worktable | mm | 750-2500 | 750-2500 |
| Spindle stroke | mm | 500 | 560 |
| Spindle taper hole (Morse) | 6# | Metrie80 | |
| Spindle speed range | r/min | 8-1000 | 6.3-800 |
| Number of spindle speed stages | 22 | 22 | |
| Spindle feed range | mm/r | 0.06-3.2 | 0.06-3.2 |
| Number of spindle feed steps | 16 | 16 | |
| Worktable size | mm | 800×1250 | 800×1250 |
| Spindle box horizontal travel distance | mm | 2580 | 3400 |
| Main motor power | kw | 15 | 18.5 |
| Machine weight | kg | 20000 | 28500 |
| Machine size (L×W×H) | mm | 4780×1630×4600 | 5910×2000×5120 |
Products Features
1:Extensive Working Range: The Z30100 is designed to handle particularly large workpieces, offering a broad workspace and flexibility.
2:Superior Precision: High-precision guides and positioning systems ensure accurate drill placements.
3:Efficient Operational Performance: Equipped with an advanced speed control system, allowing for adjustable drilling speeds to meet the requirements of various materials.
4:Heavy-Duty Structure: Robust machine structure designed to withstand high-load operations, ensuring stability and long-term durability.
5:Safety First Design: Comprehensive safety protection systems, including emergency stop features and protective guards, to ensure operational safety.
Applications
The Z30100 radial drilling machine plays an irreplaceable role in shipbuilding, large machinery manufacturing, mining equipment maintenance, and any industrial setting requiring intense drilling tasks. It is particularly suited for performing high-precision drilling on large steel structures or heavy mechanical components.

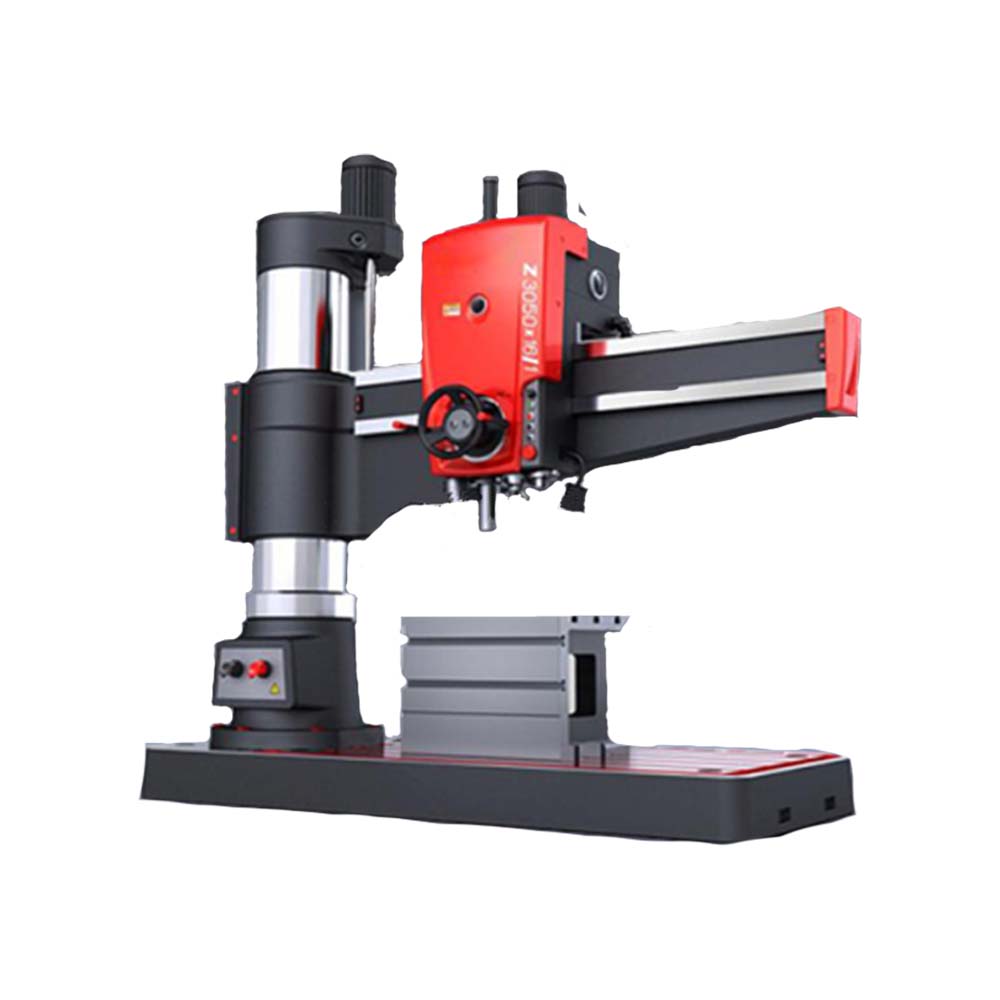

Products Pictures
