Product Specification
| Specification | unit | Z5163C | Z5180C |
| Maximum drilling diameter | mm | 63 | 80 |
| Maximum spindle feed resistance | N | 30000 | 30000 |
| Maximum spindle torque | N.m | 800 | 800 |
| Main motor power | kw | 5.5 | 5.5 |
| Main taper hole taper | NO | 5 | 6 |
| Spindle speed | r.p.m | 20-570(Grade9) | 20-570(Grade9) |
| Spindle feed per revolution | mm/rev | 0.11-0.78(Grade6) | 0.11-0.78(Grade6) |
| Spindle stroke | mm | 250 | 250 |
| Spindle box stroke | mm | 250 | 250 |
| Spindle span | mm | 375 | 375 |
| Worktable stroke (manual) | mm | 300 | 300 |
| Distance from spindle face to Worktable | mm | 50-850 | 50-850 |
| Worktable size | mm | 650×550 | 650×550 |
| Machine weight | kg | 2500/2800 | 2500/2800 |
| Overall dimensions | mm | 986×147×280 | 986×147×280 |
| Box size | mm | 1710×1130×2920 | 1710×1130×2920 |
Products Features
1:High Load Performance: This drill is particularly designed for heavy-duty operations, offering high durability and stability.
2:High-Precision Drilling: Provides very high drilling accuracy, suitable for precision engineering and quality manufacturing needs.
3:Adjustable Speed: Equipped with variable speed settings, allowing adjustment of drilling speed according to different materials and requirements.
4:Powerful Motor: A strong motor supports continuous operation, ensuring drilling efficiency and effectiveness.
5:Safety Assurance: Features an emergency stop button and other safety characteristics to ensure operator safety.
Applications
The Z5163/5180 series vertical drilling machine is extensively used in heavy industries such as mining, shipbuilding, large machinery processing, and the energy sector. It is particularly suitable for handling large, thick, or hard workpieces, ensuring high efficiency and quality in production.

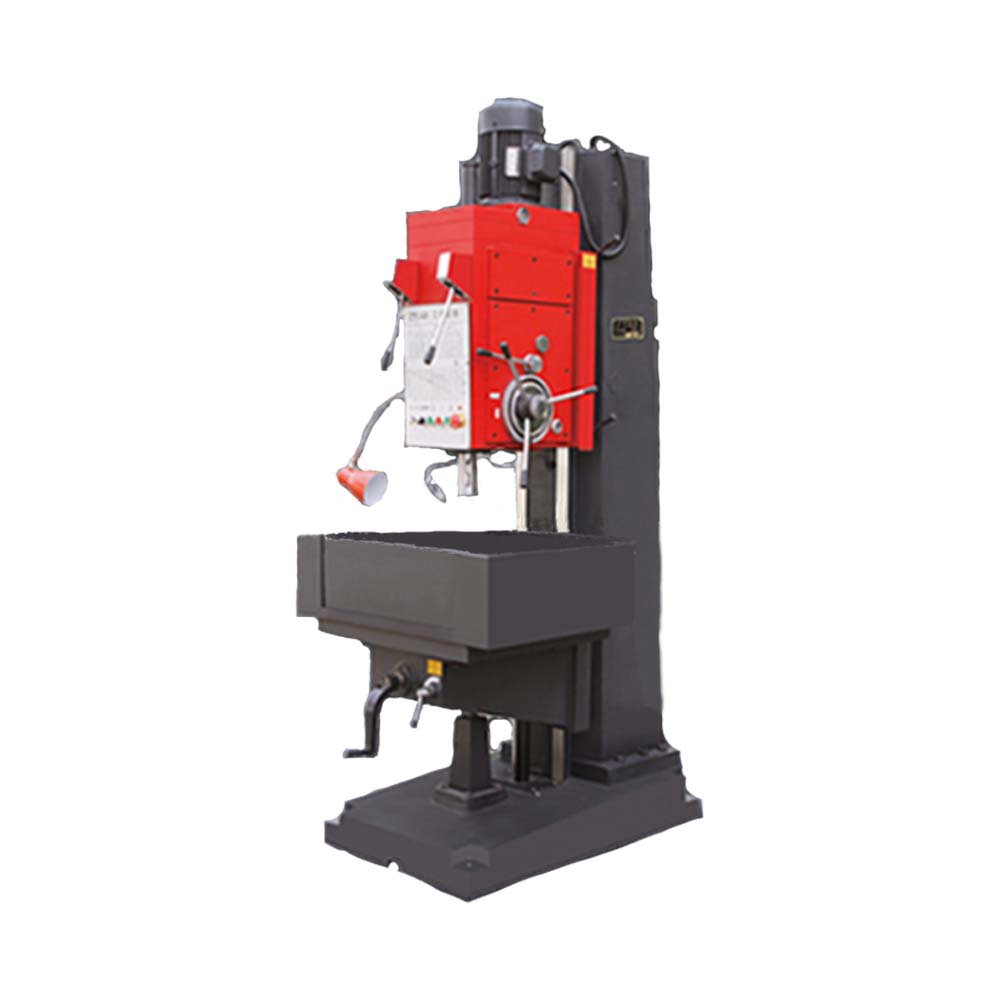

Products Pictures
