Products Specification
| Main Technical Parameters | ZK5140 | ZK5150 |
| Work Surface Size (mm) | 1000*545 | 1000*545 |
| Worktable Area (mm) | 850*400 | 850*400 |
| Maximum Drilling Diameter (mm) | φ40 | φ50 |
| T-Slot Width * Number of Slots (mm) | 18*3 | 18*3 |
| Spindle Taper | Morse4# | Morse5# |
| Spindle Speed/Number of Steps (r/min) | 31.5-1400/12 | 31.5-1400/12 |
| Main Motor Power (KW) | 3 | 3 |
| Moving Range (mm) | 850*400*240 | 850*400*240 |
| Spindle Box Travel (Manual) (mm) | 360 | 360 |
| Distance from Spindle Nose to Worktable (mm) | 100-700 | 100-700 |
| Distance from Spindle Centerline to Column Guideway (mm) | 335 | 335 |
| Rapid Traverse Speed X/Y/Z (m/min) | 15/15/1.1 | 15/15/1.1 |
| CNC System | KND System | KND System |
| Maximum Spindle Torque (N.m) | 350 | 350 |
| Maximum Feed Resistance (N) | 10000 | 12000 |
| Positioning Accuracy (mm) | ±0.025 | ±0.025 |
| Repeat Positioning Accuracy (mm) | ±0.015 | ±0.015 |
| Machine Weight (Gross/Net) (T) | 2.7/3.3 | 2.6/3.1 |
| Machine Dimensions (LWH) (mm) | 1880*1590*2360 | 1880*1590*2360 |
| Packing Box Dimensions (LWH) (mm) | 2360*2490*2580 | 2360*2490*2580 |
Products Features
1: High-Frequency Quenching Technology: The guide rails are treated with high-frequency quenching technology, which enhances the hardness and wear resistance of the guide rails, prolonging the equipment's service life and ensuring machining accuracy.
2: Robust Cast Iron Structure: The bed, column, worktable, and base are all made of HT250 cast iron structural components, providing exceptional rigidity and stability, capable of withstanding high-intensity machining tasks.
3: Advanced CNC System: Equipped with a high-performance CNC system, it achieves high-precision and high-efficiency automated machining, suitable for the precise machining of complex parts.
4: Multifunctional Worktable: The worktable is designed for flexible adjustment to meet various machining needs, enhancing machining efficiency and accuracy.

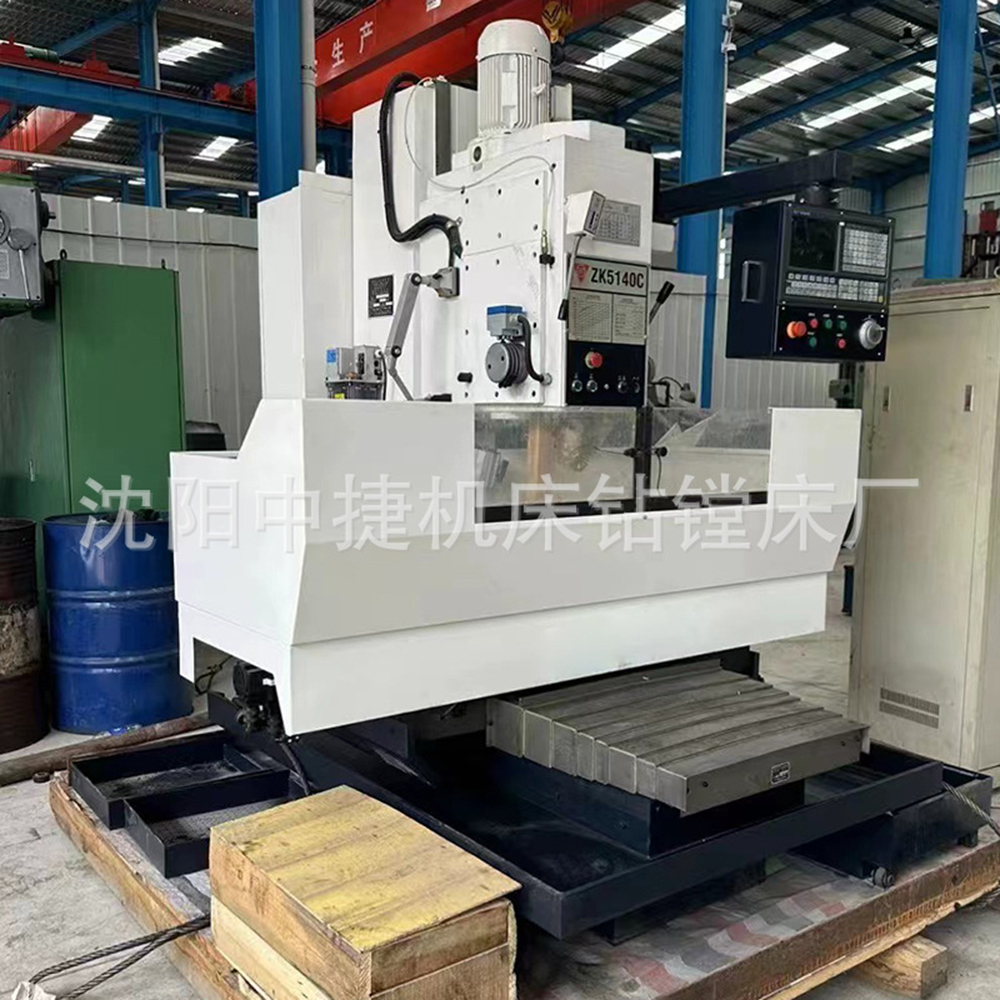

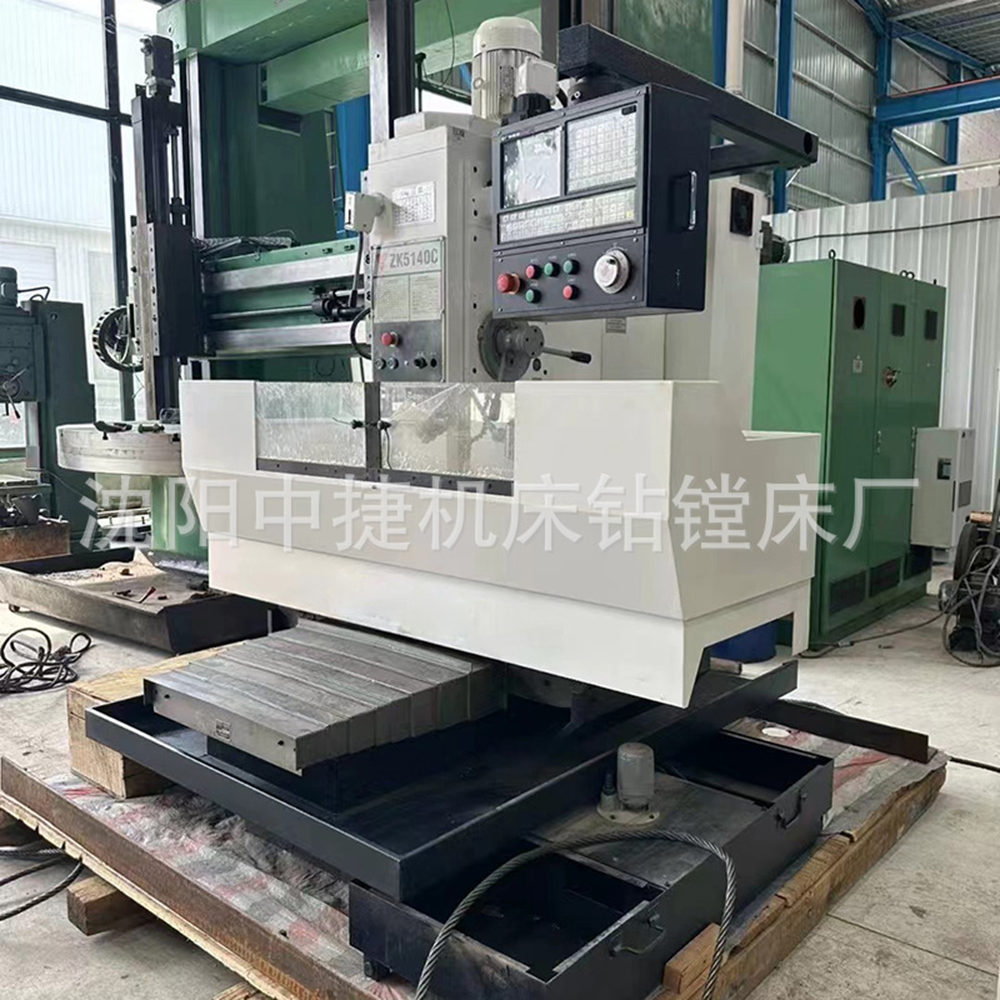

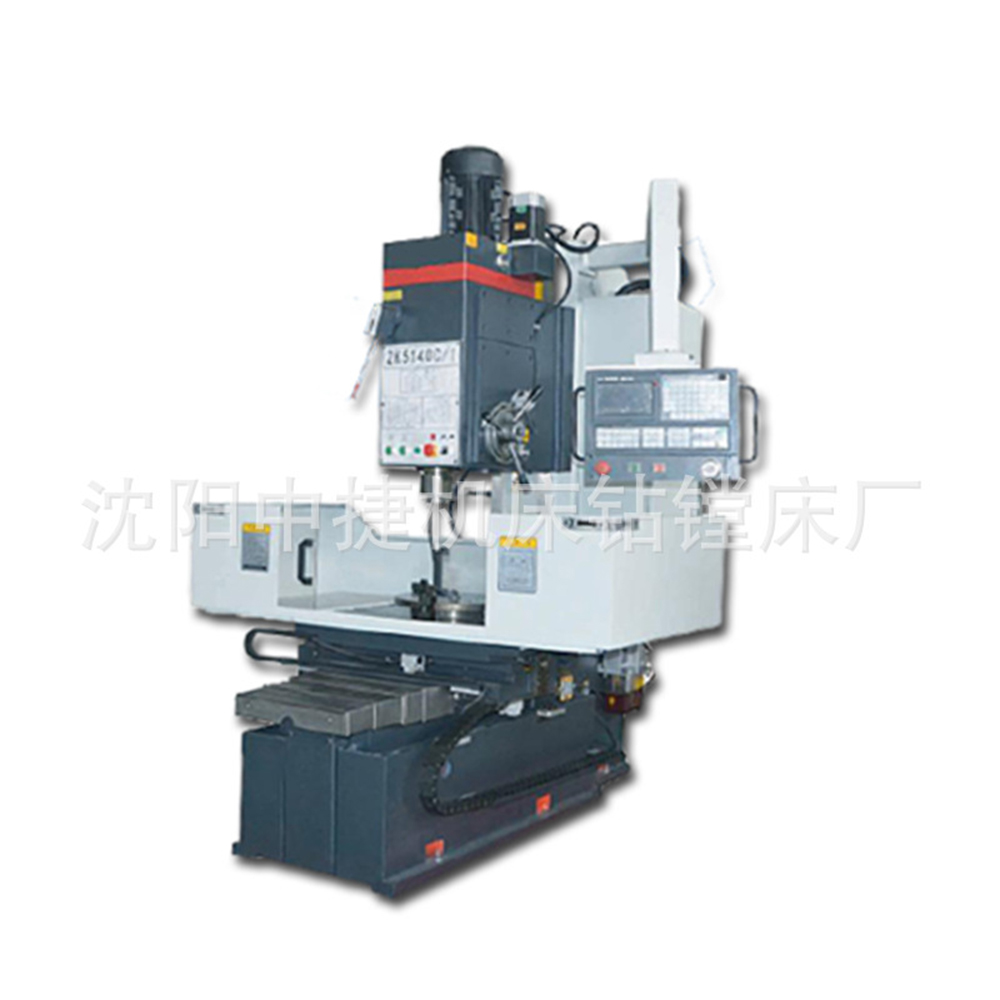

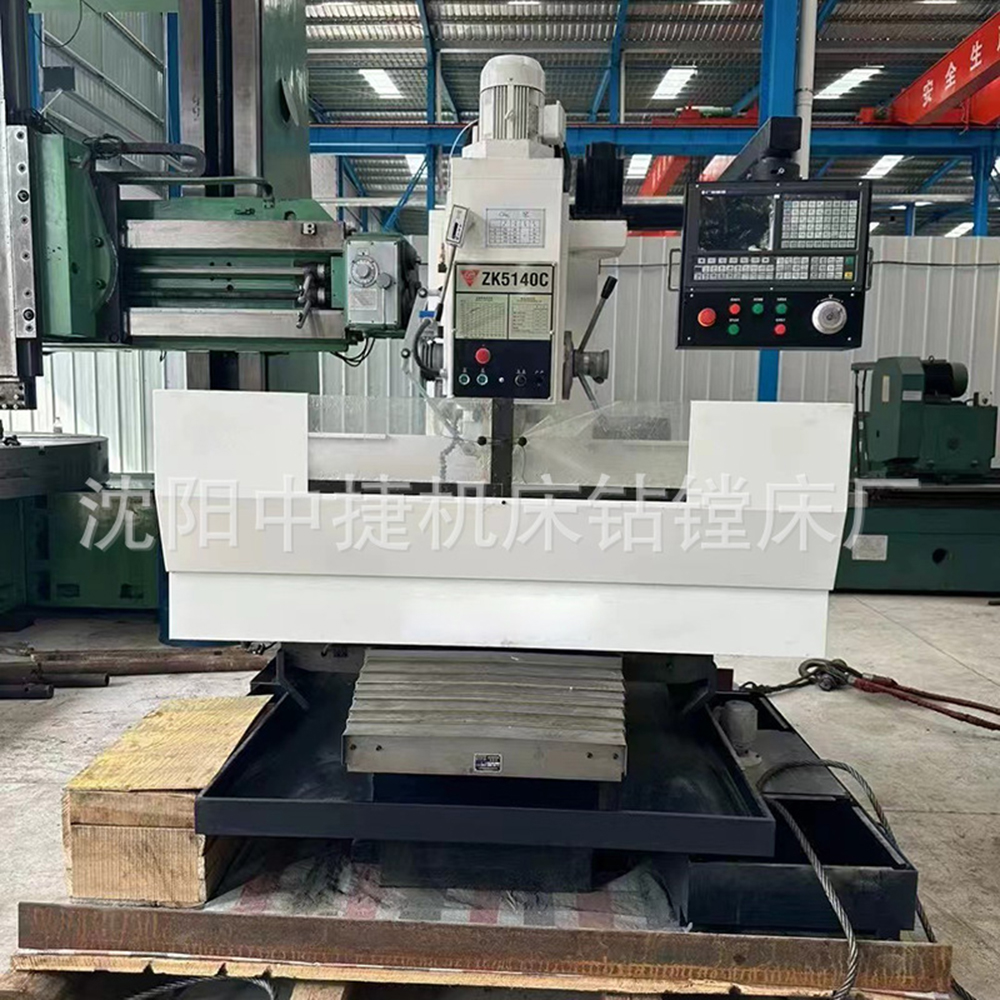

Products Pictures
