Machine Features:
1. Five-Lens Tilt Photography System
Equipped with five APS-C sensors totaling 126MP, enabling multi-angle imaging ideal for 3D modeling and urban topographic reconstruction.
2. Mechanical Global Shutter for Accurate Mapping
A 1/2000s global shutter prevents distortion and motion blur during fast flights, ensuring true-to-scale, high-accuracy mapping results.
3. Adjustable Tilt Structure (8°–24°)
Automatically adapts the camera pitch angle according to flight speed to maintain optimal imaging geometry and consistent ground coverage.
4. Ultra-Large 640GB Internal Storage
Supports high-speed data transfer up to 300MB/s when used with compatible copying tools, minimizing field downtime and accelerating post-processing.
5. Real-Time Image Transmission
Allows survey teams to monitor live images through a ground station, enabling instant inspection and mission adjustments.
6. Industrial-Grade Durability
Aerospace-grade aluminum alloy shell ensures excellent heat dissipation, stability, and durability in harsh operating environments.
Products Specification:
| Item | Details |
| Dimensions | 107 × 107 × 125 mm |
| Weight | 648 g |
| Shell Material | Aerospace-grade aluminum alloy |
| Color | Cool gray |
| Pixel Count | 126 MP total (25.2 MP × 5 cameras) |
| Number of Cameras | 5 (oblique + downward) |
| Sensor Size | APS-C (23.1 × 15.4 mm) |
| Sensor Pixel Size | 3.76 μm |
| Storage Capacity | 640 GB built-in |
| Photo Format | JPG |
| Minimum Photo Resolution | 6144 × 4096 |
| Shutter Type | Mechanical global shutter |
| Shutter Speed | 1/2000 s |
| Aperture | F5.6 |
| Focal Length | Downward: 28 mm / Tilt: 40 mm |
| Pitch Angle Range | Adjustable 8°–24° |
| ISO Range | 50–3200 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Image Transmission | Supports real-time image monitoring via compatible link module |

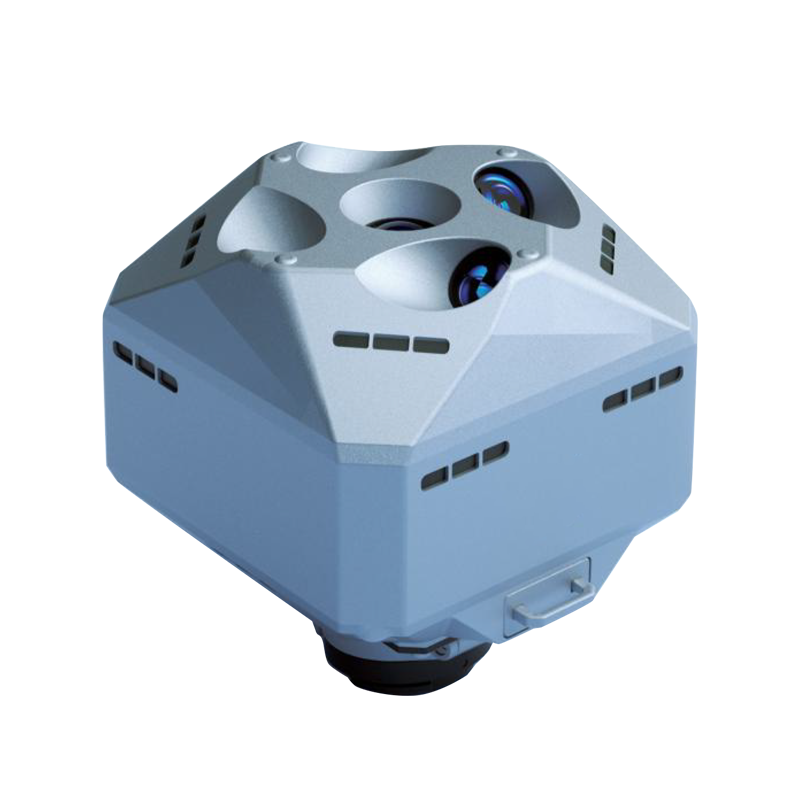

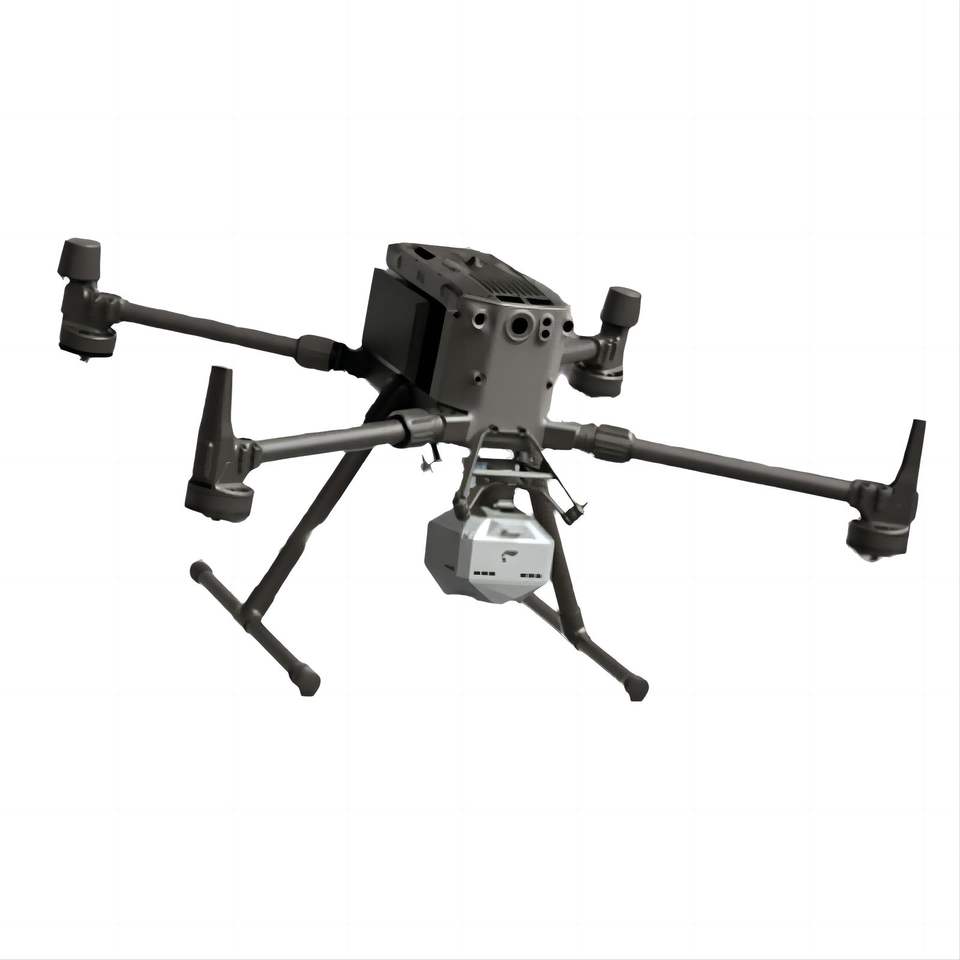

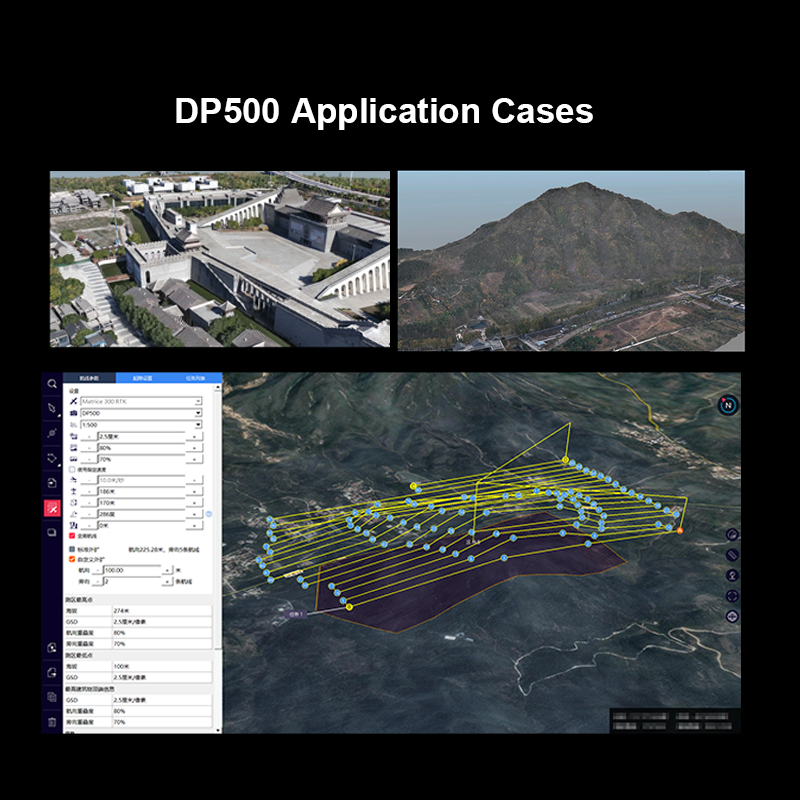

Products Pictures:
