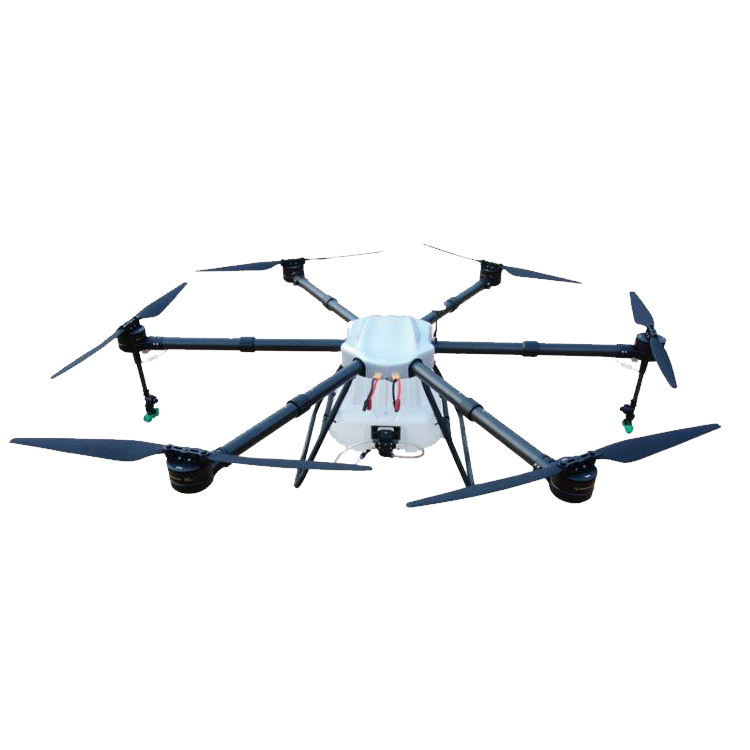

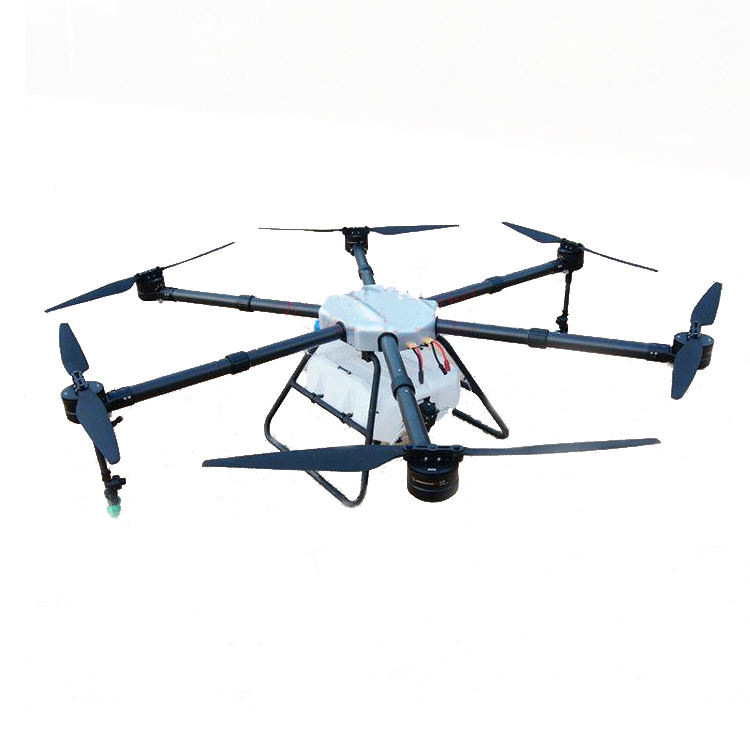

Machine Features:
Cross-Folded Structure:
The boom adopts a cross-staggered folding design, minimizing folded size and ensuring easy transport and deployment.
Durable Integrated Fuselage:
The one-piece injection-molded body with internal multi-chain frame structure enhances strength, stability, and longevity under heavy load.
IP65 Dustproof & Waterproof Protection:
Full-body sealing of upper and lower covers effectively prevents dust and water ingress, ensuring reliability in complex environments.
New Medicine Box Design:
Modular chemical tank design supports both single and dual pump installation, compatible with radar systems for precise spraying layout.
High Payload & Efficient Operation:
The large-capacity tank (up to 16 L) allows efficient spraying across wide agricultural fields, improving operational productivity.
Products Specification:
| Item | Details |
| Product Type | Large-Scale Agricultural Sprayer Drone |
| Usage | Crop protection, disinfection, and sterilization |
| Material | High-strength plastic composite |
| Payload Capacity | 15 L – 16 L (maximum load 16 kg) |
| Power Source | Li-po / Lithium battery |
| Battery Capacity | 22,000 mAh 6S 22.2 V |
| Wheelbase | 1.62 m |
| Number of Rotors | 6 rotors |

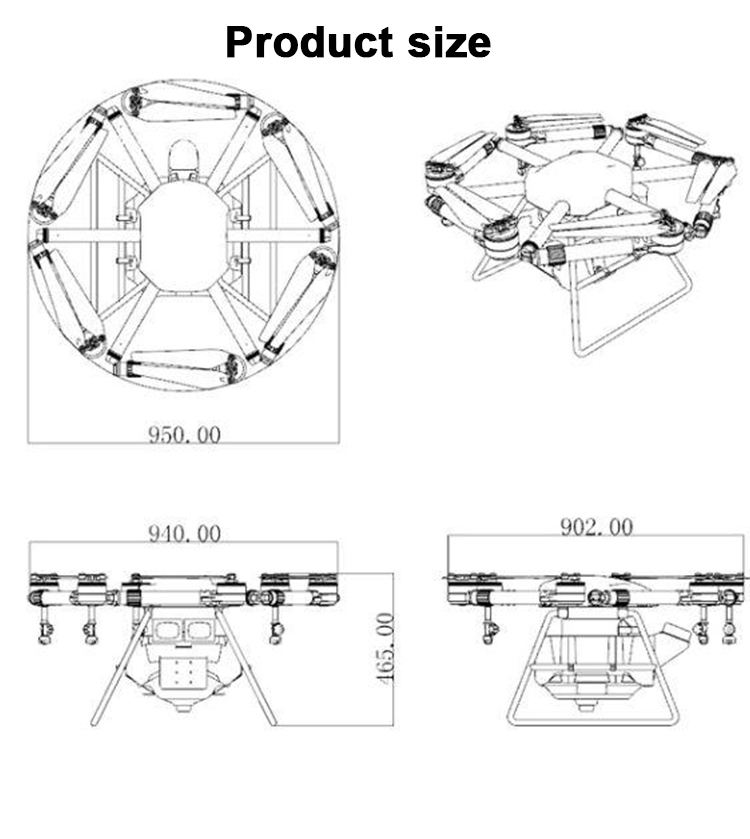

| Expanded Size | 1720 × 1720 × 625 mm |
| Empty Weight | 14.6 kg (without batteries) |
| No-Load Flight Time | 24 minutes |
| Full-Load Flight Time | 11 minutes |
| Spraying Duration | 8 minutes per operation |
| Operating Speed | 2 – 8 m/s |
| Spraying System | Dual pump support, compatible with multiple radar configurations |
| Protection Level | IP65 dustproof and waterproof |
| Structure Design | Cross-folding arms for compact storage and easy transportation |
Products Pictures:
