Machine Features:
High Payload Capacity:
40L standard tank (expandable to 50L) covers large farmland in fewer flights, reducing turnaround time.
Dual Atomized Spraying System:
Uniform droplet size (50–500 μm) ensures precise application and effective crop protection.
RTK Precision & Terrain Following:
Achieves centimeter-level accuracy with RTK & GNSS positioning, ensuring stable and efficient flight even in complex terrain.
Foldable Carbon Fiber Frame:
Lightweight yet durable, easy to fold and transport, reducing setup time.
High-Efficiency Battery System:
Supports 9–12 minute quick charging, allowing continuous large-scale operation cycles.
Products Specification:
| Products Specification: | Description |
| Product Name | Integrated Agricultural Drone for Plant Protection |
| Drone Type | Commercial agricultural UAV |
| Control Type | Remote Control |
| Flight Time | 10–20 minutes per charge |
| Transmission Distance | Up to 1000 meters (real-time image transmission) |
| Structure Material | Carbon fiber + engineering plastic |
| Motor Type | Brushless motor |
| Payload Capacity | 40L standard tank (optional 50L tank) |
| Spraying System | Dual atomized spraying system (50–500 μm droplet size) |
| Positioning System | RTK & GNSS centimeter-level accuracy |
| Propulsion System | 8 rotors × 4000W high-efficiency power |
| Battery Type | Intelligent quick-charge lithium battery (9–12 min fast charging) |
| Arms Design | Foldable carbon fiber arms for easy transport |
| Obstacle Avoidance | Radar + binocular vision terrain following system |
| Application Fields | Crop spraying, fertilization, pest control, precision agriculture |
| Operator Skill Level | Beginner–Intermediate |

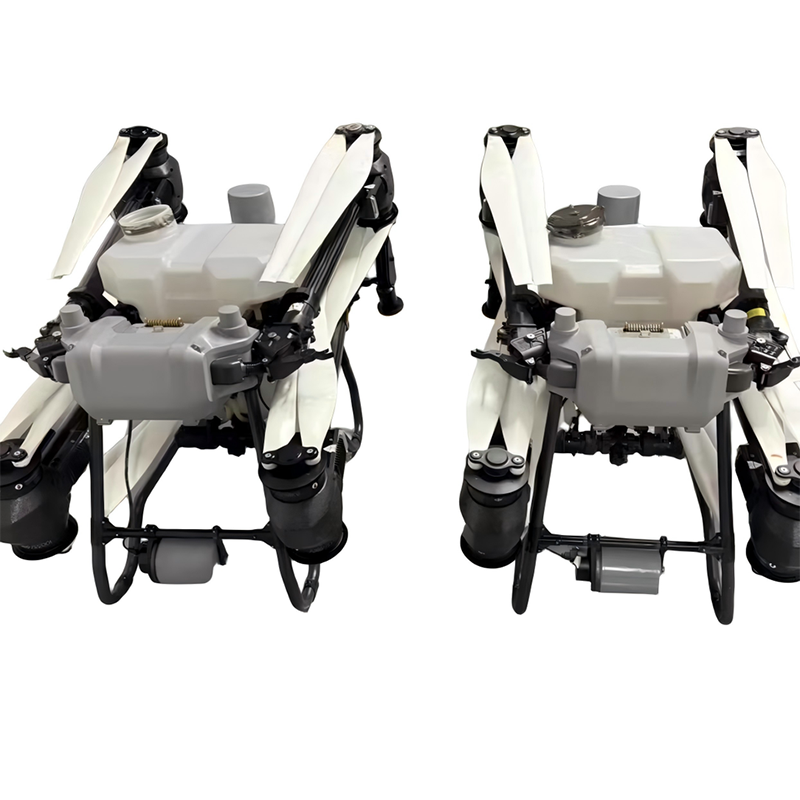

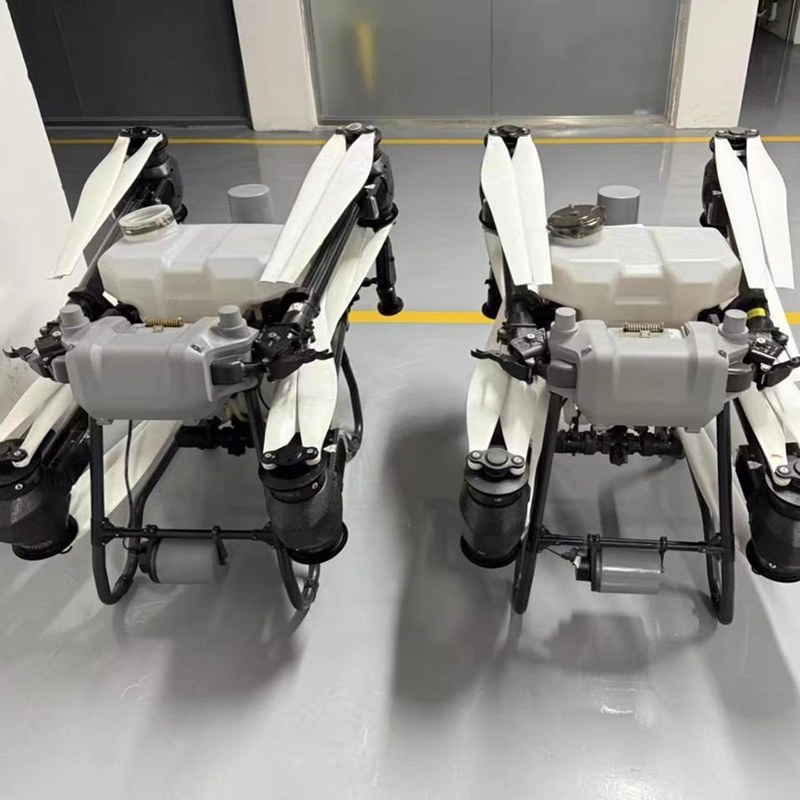

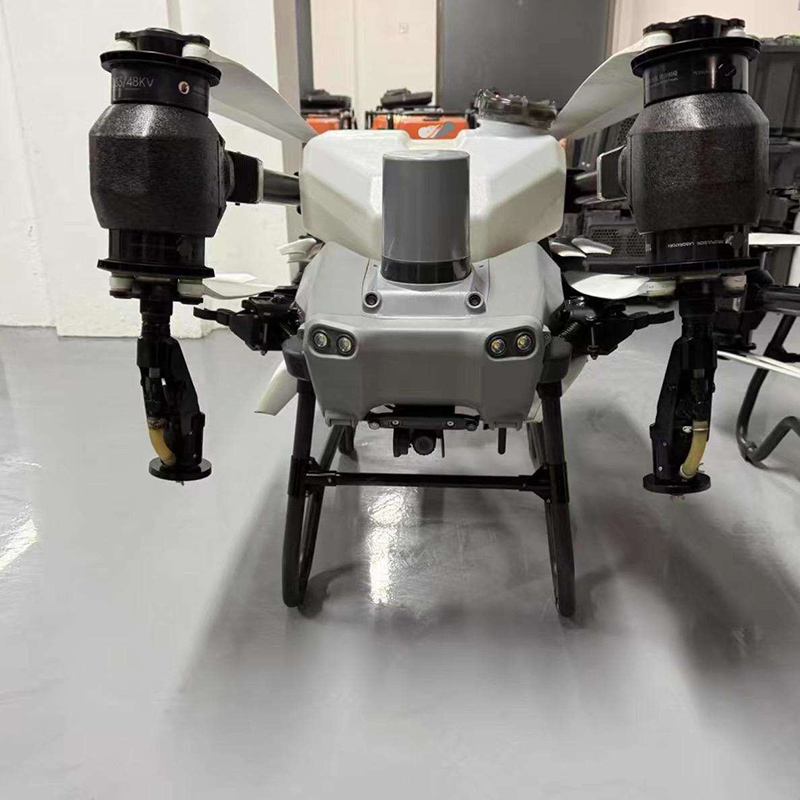

Products Pictures:
