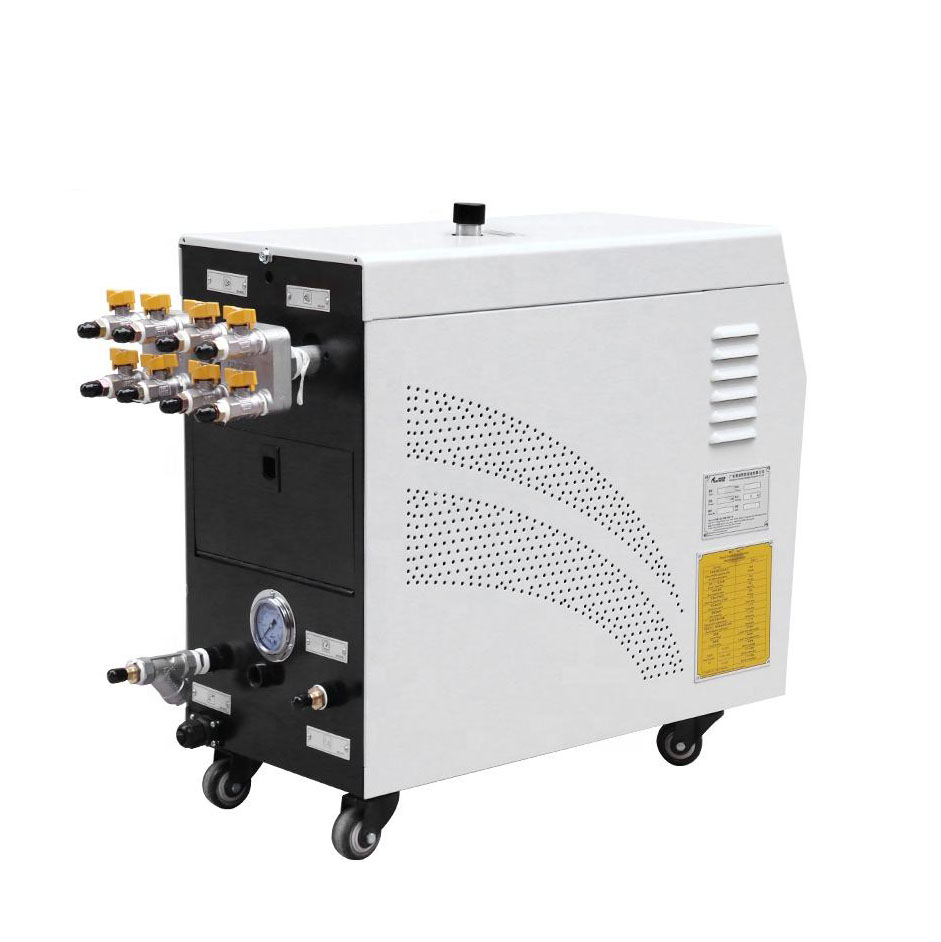

Industrial oil type temperature control unit for injection molding

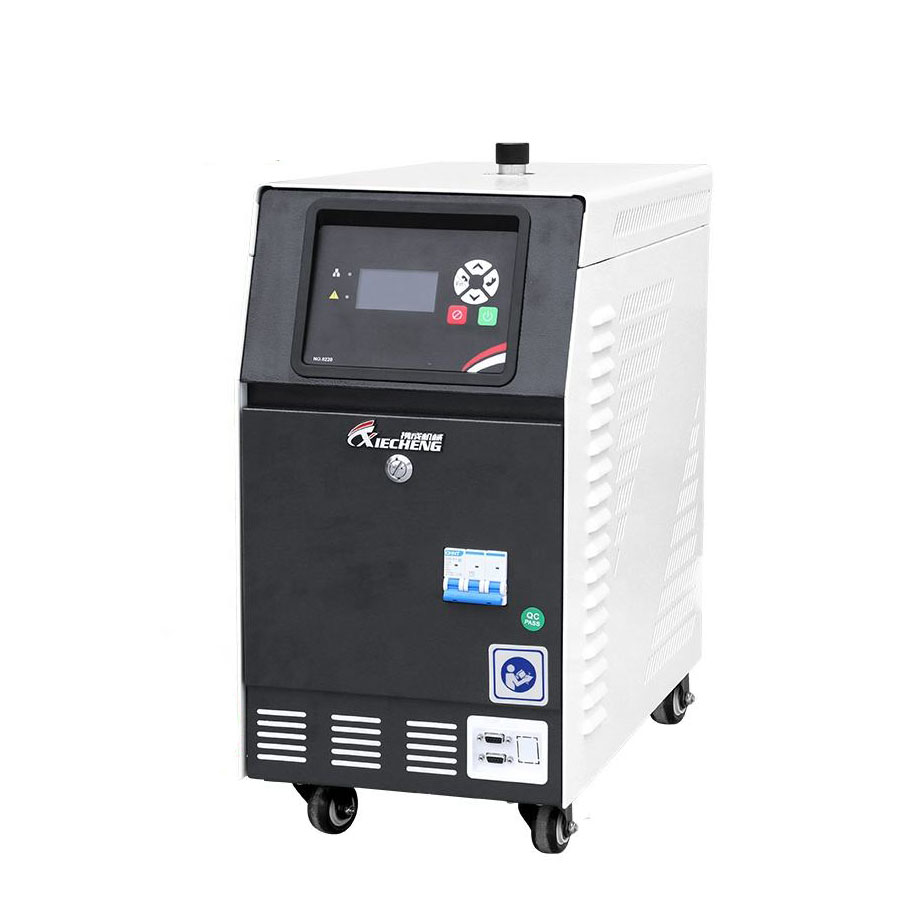

200 degree oil mold heating machine for plastic molding

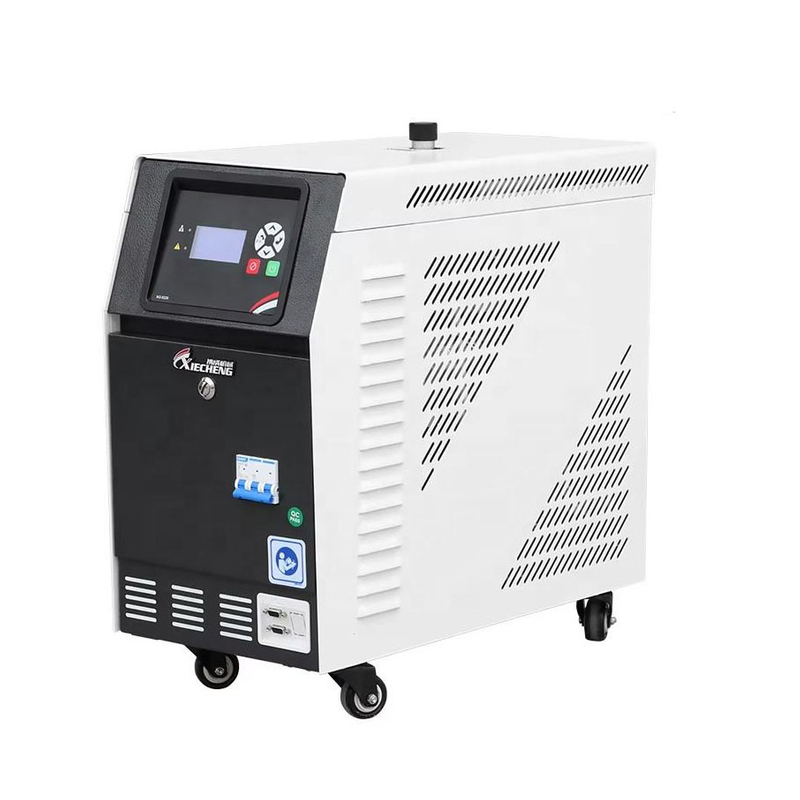

18kW Oil Type Mold Temperature Controller 200°C Industrial Temperature Control Unit

The 18kW oil type mold temperature controller is designed for precise and stable temperature regulation in injection molding, blowing, and industrial heating applications. It circulates high-temperature heat transfer oil through a closed-loop system to ensure uniform mold heating and consistent production quality.

With a maximum temperature of 200°C and PID microcomputer control, this unit provides accurate temperature management, improves molding efficiency, reduces defects, and extends mold lifespan.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High Precision Temperature Control

• Advanced PID microcomputer LCD controller

• Temperature accuracy ±0.1°C

• Displays both actual and set temperature

18kW Powerful Heating System

• Rapid heating performance

• Stable continuous industrial operation

• Maximum temperature up to 200°C

Closed Loop Oil Circulation System

• High-temperature oil circulation for uniform heating

• Indirect cooling system for stable operation

• Reduces mold temperature fluctuation

Industrial-Grade Components

• High-efficiency circulation pump

• Stainless steel heating tube and piping

• Durable heating barrel with corrosion resistance

Intelligent Operation

• 24-hour weekly digital timing

• Automatic start/stop control

• Easy-to-operate LCD interface

Multiple Safety Protections

• Overheat protection

• Pump overload protection

• Multi-level safety protection system

Wide Application

• Plastic injection molding

• Blow molding industry

• Die casting temperature control

• Industrial mold heating

Products Specification:

Item	Specification
Type	Oil Type Mold Temperature Controller
Heating Power	18 kW
Temperature Range	Up to 200°C
Temperature Accuracy	±0.1°C
Controller	PID Microcomputer LCD
Pump Power	1.5 kW
Pump Flow	1110 L/min
Internal Piping Size	1" × 1"
Voltage Options	110V / 220V / 380V / 415V
Power Consumption	750W / 1560W
Cooling System	Indirect Cooling
Loading Distance	60 m
Safety Protection	6-Level Protection System
Suitable Industry	Injection / Blow Molding
Dimensions	830 × 370 × 694 mm
Weight	80 kg
Operation Mode	Automatic & Continuous
