Machine Features:
• High Conveying Capacity
Designed for up to 300kg/h material transfer, suitable for medium-scale injection molding production lines.
• Long Distance Suction System
Suction distance up to 4–12 meters, enabling flexible installation layout.

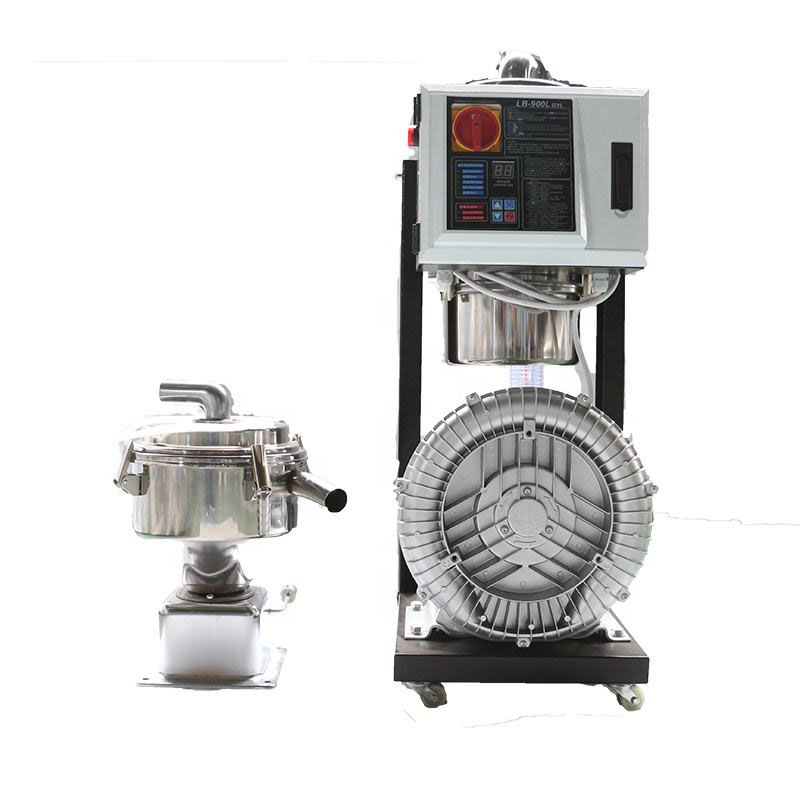

• Separate Main Unit & Hopper Design
Improves safety, reduces vibration impact, and simplifies maintenance.

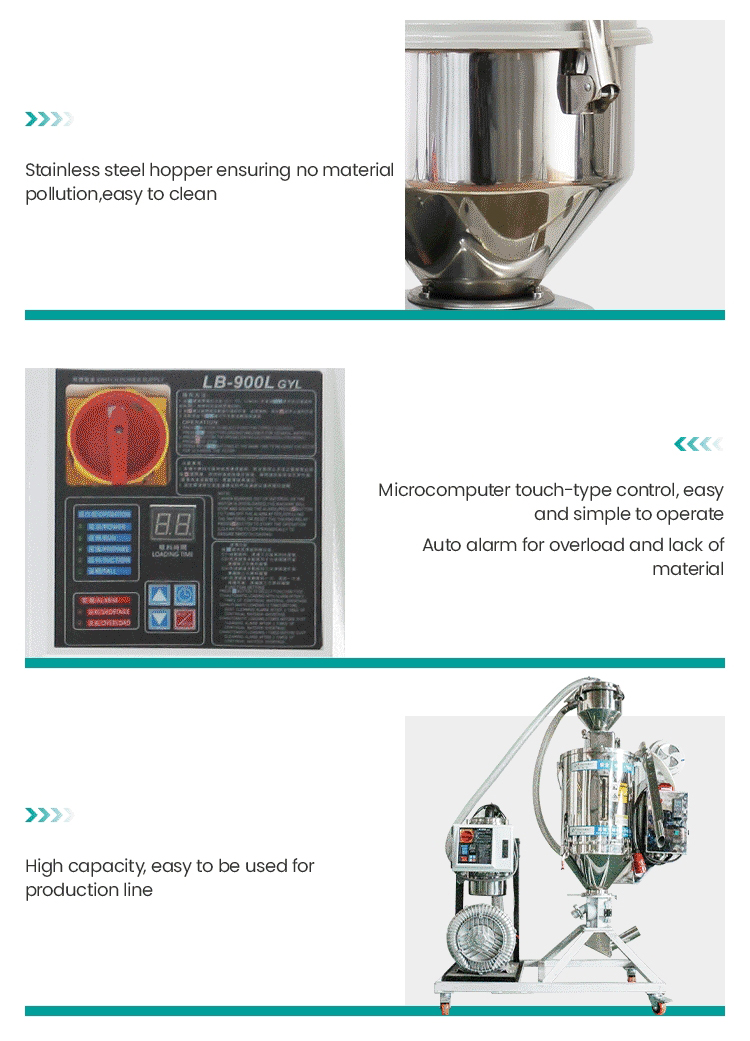

• Stainless Steel Hopper
Prevents material contamination and allows easy cleaning.
• Microcomputer Control Panel
User-friendly interface for stable and automatic operation.
• Overload & Material Shortage Alarm
Built-in protection system ensures motor safety and stable production.
• High-Power Blower System
Strong suction performance for pellets, granules, and flake materials.
• Multiple Hopper Capacity Options
Compatible with 7.5L–25L suction hopper configurations.
• Suitable for Injection Molding Machines
Ideal for automated material feeding in plastic processing lines.
Products Specification:
| Parameter | Specification |
| Conveying Capacity | 300 kg/h |
| Power | 2.2 kW |
| Blower Power | 1200 W |
| Voltage | 220V / 380V |
| Hopper Capacity | 7.5L – 25L |
| Pipe Diameter | 38 mm |
| Suction Distance | 4 – 12 m |
| Dimensions | 610 × 410 × 720 mm |
| Weight | 60 kg |
| Application | Injection molding machine |
| Material Type | Plastic pellets, granules, flakes |
| Control System | Microcomputer control |
| Protection | Overload alarm, material shortage alarm |
Products Pictures:
