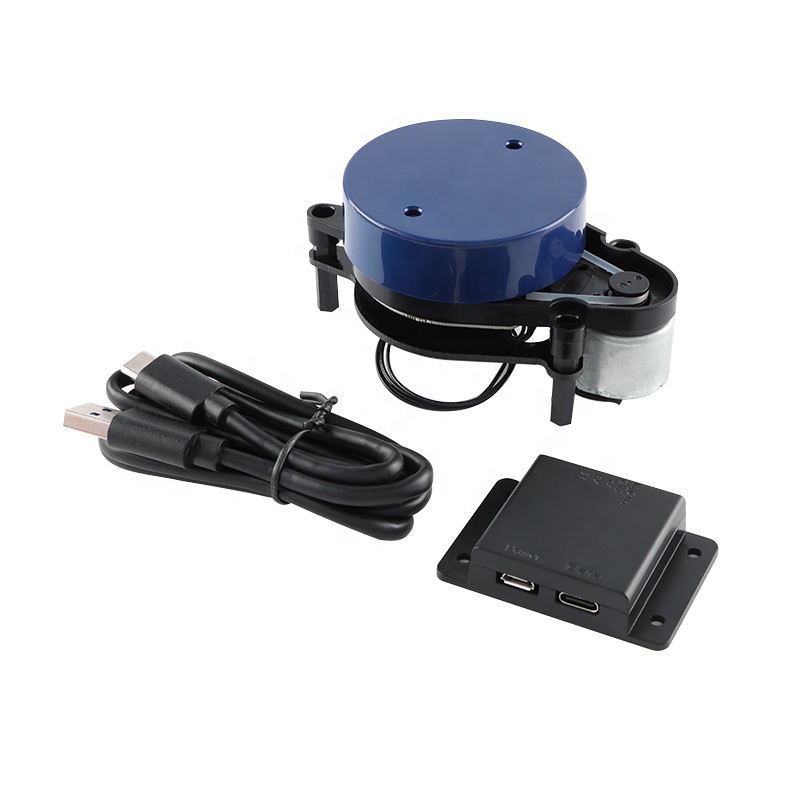

360-degree laser radar scanner module with real-time point cloud output for robotics navigation

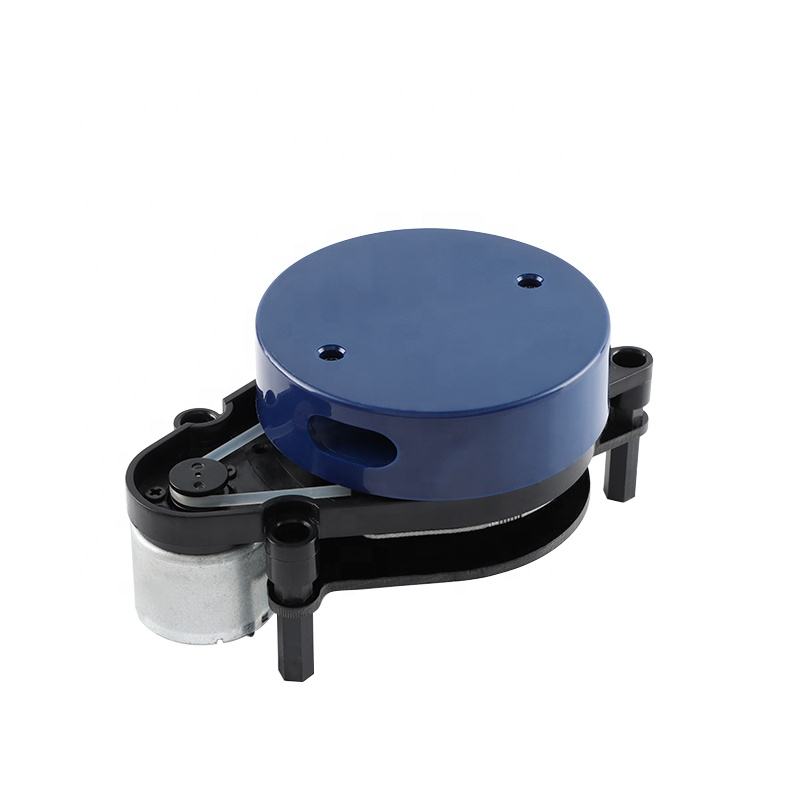

High-frequency 3000Hz laser ranging sensor with 8m detection range and stable triangulation accuracy

360 Degree Scanning Laser Radar Scanner Ranging Sensor Module

This 360-degree scanning laser radar module uses a triangulation-based measurement system combined with precision optics and algorithms to deliver high-frequency, high-accuracy ranging performance. The mechanical structure enables continuous rotation to provide real-time angle information and point-cloud data for surrounding environments. With strong ambient-light resistance, low power consumption, and compact size, it is ideal for robotics navigation, mapping, ROS research, and commercial automation applications.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

Full 360° scanning: continuous mechanical rotation captures complete environmental point-cloud data.

High measurement frequency: 3000Hz ranging speed ensures rapid, real-time perception.

Triangulation accuracy: optimized optical and algorithm design delivers stable and precise performance.

Strong ambient-light resistance: reliable operation under complex lighting conditions.

Low power consumption: suitable for battery-powered or compact robotic systems.

UART interface: easy integration via 3.3V serial communication for real-time data access.

Wide application range: ideal for robot navigation, obstacle avoidance, mapping, teaching, and security monitoring.

Products Specification:

Parameter	Specification
Product Type	360° Scanning Laser Radar Sensor Module
Ranging Frequency	3000 Hz
Motor Frequency	7 Hz
Scanning Range	8 meters
Supply Voltage	4.8–5.2V
Working Current	200–380 mA
Distance Measurement Principle	Triangulation
Scanning Type	360-degree mechanical rotation
Output Data	Point cloud data + angle information
Communication Interface	3.3V UART serial port
Performance Features	High accuracy, low distance error, stable performance
Ambient Light Resistance	Strong resistance to interference
Power Consumption	Low power consumption
Size	Compact, lightweight design
Service Life	Long lifespan
Application Areas	Robot navigation, obstacle avoidance, ROS teaching, mapping, regional security, commercial robots, vacuum robots
Condition	New
