Machine Features:
Ultra-Compact Size:
Designed with a 21×15×7.87mm LGA package, the module is ideal for integration into small devices such as drones, robots, smart terminals, and IoT products.
Lightweight for Extended Operation:
With a weight of only 1.35g, it significantly reduces load on mobile platforms and helps extend battery life—especially beneficial for drones and compact robots.
High-Accuracy Ranging:
Offers ±6cm accuracy from 0.2–6m and 1% accuracy above 6m, ensuring stable measurement across different surfaces including low-reflectivity materials.
Long-Distance Measurement:
Supports a maximum ranging distance of up to 20 meters, suitable for both indoor mapping and outdoor detection environments.
Strong Ambient-Light Resistance:
Resistant to environmental light up to 100Klux, maintaining stable performance under intense sunlight.
High-Speed Output:
Frame rate supports 0/20/50/100 (default)/250Hz, delivering fast response for real-time applications like navigation and obstacle avoidance.
Low Power Consumption:
Average power consumption ≤0.35W and peak current of 115mA@3.3V
, making it suitable for battery-powered or energy-sensitive systems.
Eye-Safe VCSEL Light Source:
Uses a Class 1 eye-safe 905nm VCSEL laser, compliant with EN60825, safe for consumer and industrial use.
Products Specification:
| Performance parameter | |
| Measuring Range | 0.2- 20m @90%Reflectivity@0Klux，0.2-15m @90%Reflectivity@100Klux |
| 0.2- 12m @10%Reflectivity@0Klux，0.2-9m @10%Reflectivity@100Klux | |
| Accuracy | ±6cm(0.2~6cm),1%(≥6m) |
| Range Accuracy | 2cm(0.2~6m)@1σ |
| Frame rate | 0/20/50/100(default)/250Hz |
| Ability to resist environmental light | 100Klux |
| Optical performance | |
| Light source | VCSEL |
| Center wavelength | 905nm |
| Field of view angle | <2° |
| Laser safety level | Class 1 Eye-safe (EN60825) |
| Mechanical and electrical parameters | |
| Average power consumption | ≤0.35W |
| Peak Current | 115mA@3.3V |
| Supply Voltage | DC 3.3±9%V |
| Communication level | LVTTL (3.3V) |
| Operation temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+85℃ |
| Size | 21x15x7.87mm3 |
| Weight | ~1.35g |
| Hardware interface | 0.8mm-6P (Model: WF08006-01207) |
| Protection grade | Not have |

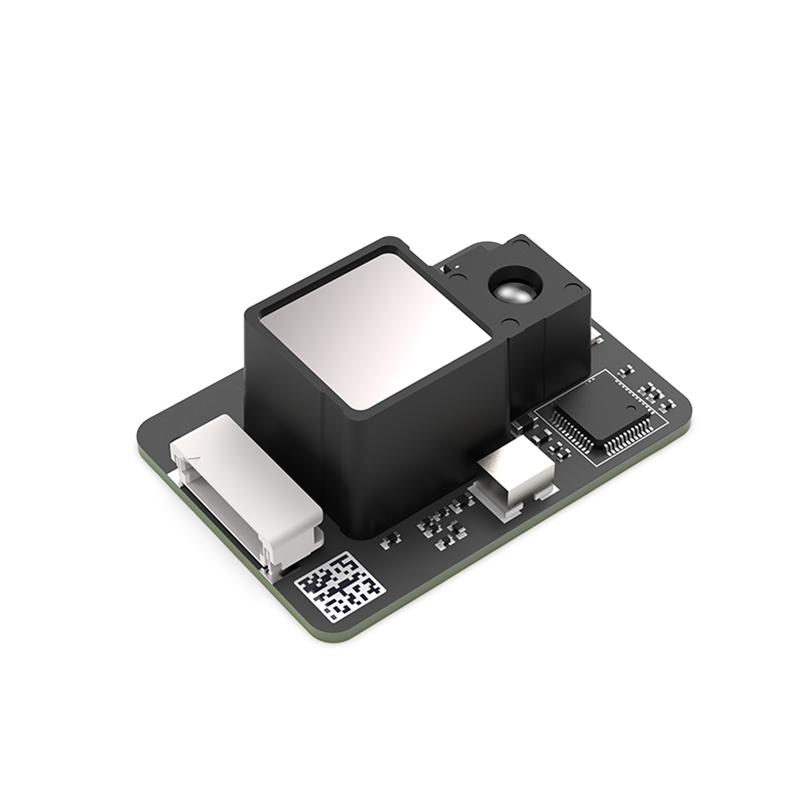

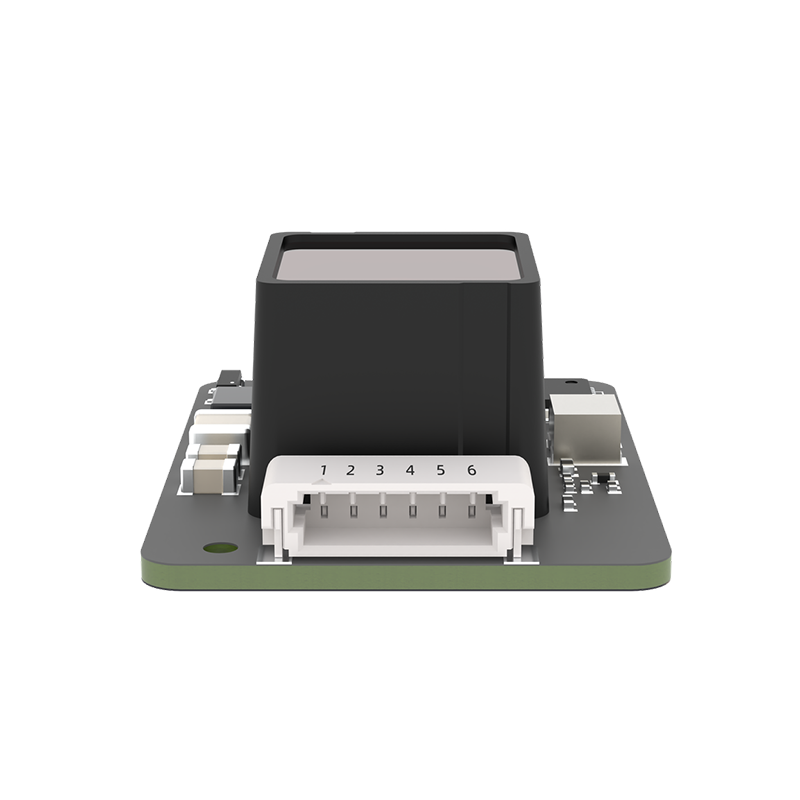

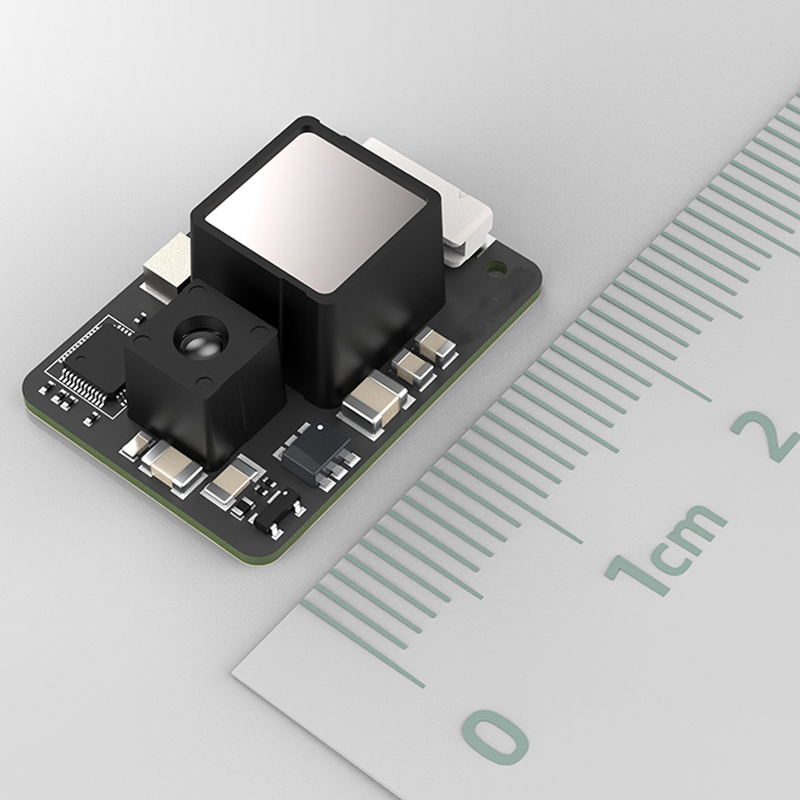

Products Pictures:
