Machine Features:
Suspension & Terrain Adaptability:
Equipped with a Matilda-style suspension system that absorbs impact and adapts to uneven surfaces, ensuring smooth and stable movement.
High Structural Strength:
Welded steel body with anti-rust coating ensures durability and long service life in harsh environments.
Underwater Reliability:
All transmission components are oil-filled and pressure-sealed, allowing stable operation at water depths up to 30 meters.
Lightweight & High Performance:
Uses high-molecular polymer pulleys for reduced chassis weight while maintaining strength and corrosion resistance.
Flexible Control Options:
Supports both standard remote control mode and visual control mode with multiple video and PWM channels for expansion.
Easy Maintenance & Modular Design:
Designed for quick upgrades and convenient replacement of components, ideal for R&D and professional applications.
Products Specification:
| Item | Description |
| Product Name | Amphibious Track Crawler Platform Waterproof Crawler ROV Underwater Robot |
| Application | Underwater dredging, inspection, cleaning, and amphibious robotic operations |
| Drive Type | Dual-motor crawler drive system |
| Dimension | 1220 × 890 × 520 mm |
| Weight | 120 kg |
| Load Capacity | 100–300 kg |
| Speed | 2.5–4 km/h |
| Climbing Ability | ≤30° (can climb stairs) |
| Obstacle Crossing Height | 130 mm |
| Maximum Underwater Depth | 30 m |
| Waterproof Level | IP68 |
| Track Width | 130 mm |
| Rated Torque | 100–500 Nm |
| Gear Ratio | 1:10–1:40 |
| Motor Power | 0.75–1.5 kW × 2 |
| Motor Rated Speed | 1500 r/min |
| Motor Voltage | 380V AC (customizable) |
| Reducer Efficiency | 65–85% |
| Maximum Track Span | 620 mm |
| Cable Control Distance | Standard 50 m (optional up to 150 m) |
| Power Supply | Generator or 380V external power |
| Structure Material | Rust-proof welded steel frame, industrial rubber tracks |
| Control Mode Options | Handheld remote control / Visual control box with 4-channel video feed |

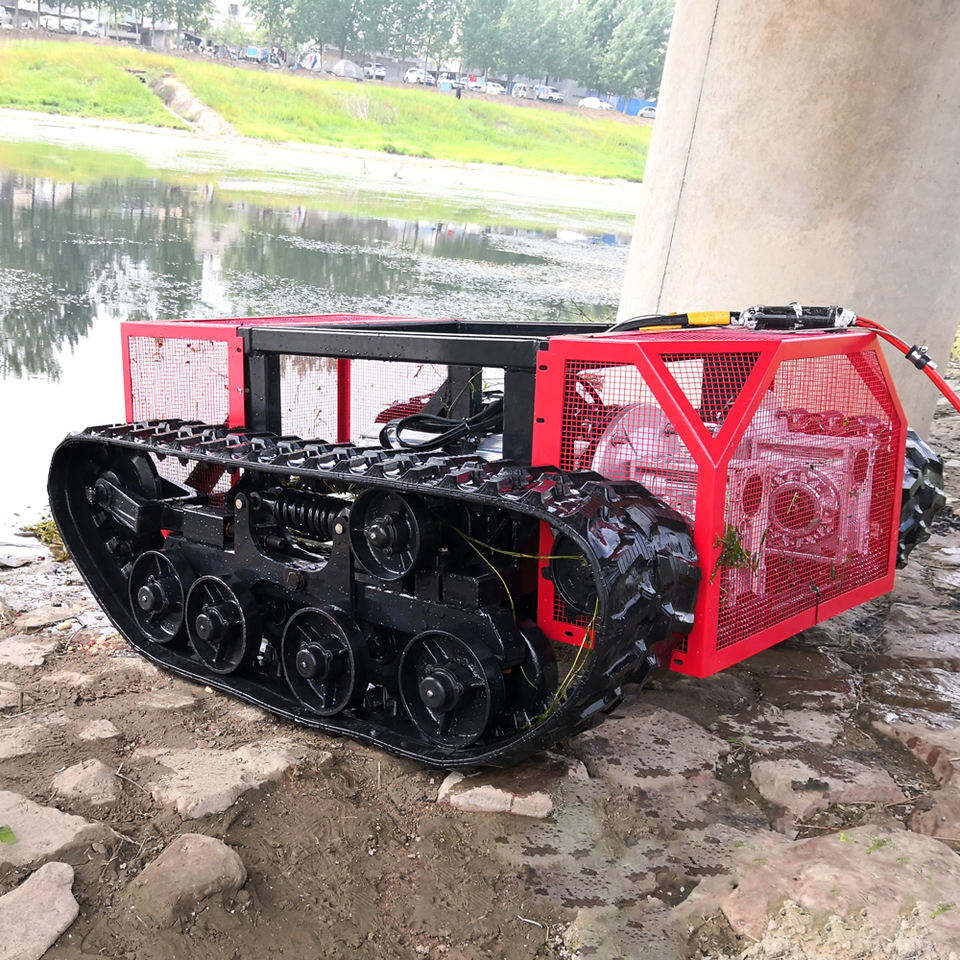

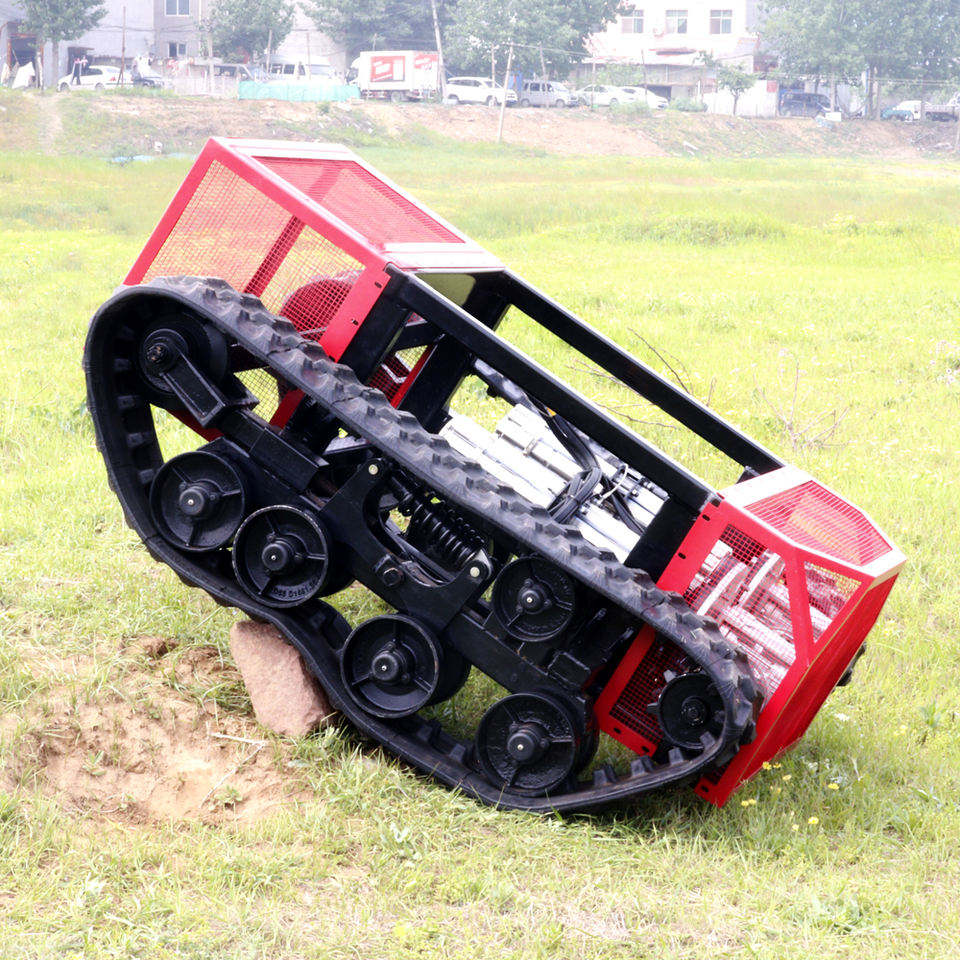

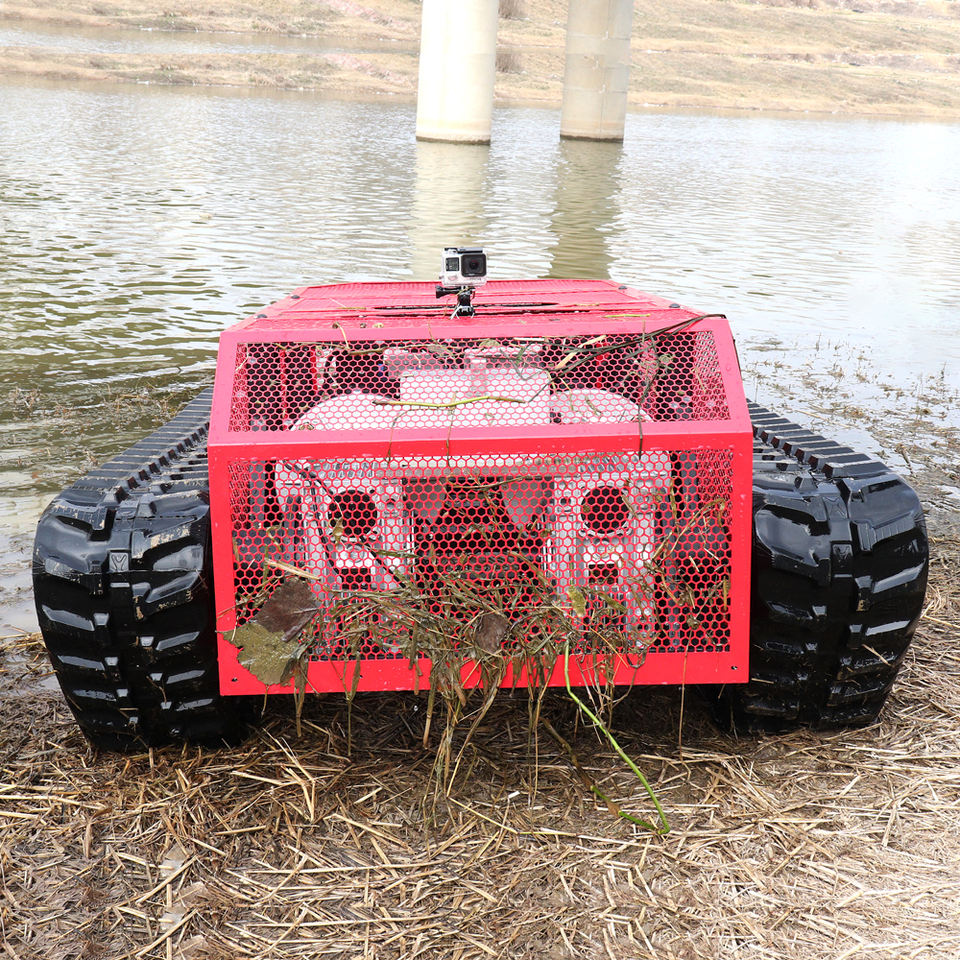

Products Pictures:
