| Specification | unit | B6066 | B6066J | |
| Worktable area (W×L) | mm | 660×450 | ||
| Worktable T-slots | Number of slots | 3 | ||
| Slot width | mm | 18 | ||
| Slot distance | mm | 125 | ||
| Maximum stroke of Worktable | Horizontal | mm | 600 | |
| Vertical | mm | 300 | ||
| Maximum planing length | mm | 660 | ||
| Maximum distance from the Worktable surface to the bottom of the ram | mm | 370 | ||
| Angle of rotation of the tool rest (without backing into the bed) | ±60° | |||
| Stroke of tool holder | mm | 125 | ||
| Maximum size of planer shank (width × thickness) | mm | 20×30 | ||
| Range of ram reciprocations per minute | times/min | 12.5~73 | ||
| Worktable feed range (horizontal) | mm | 0.33~3.33 | ||
| Worktable rapid traverse speeds | Horizontal | mm/min | 1.4(B6066J) | |
| Vertical | mm/min | 0.5(B6066J) | ||
| Prime mover power | kw | 3 | ||
| Rapid traverse motor power | kw | 0.37 | ||
| Machine volume (L×W×H) | mm | 2280x1520x1750 | ||
| Net weight of machine | kg | 1980 | 1990 | |
Products Features
1:High-Precision Machining: Capable of efficiently and precisely shaping flat surfaces, T-slots, dovetail slots, and other complex shapes, ensuring machining accuracy.
2:Compact and Easy to Operate: The machine features a compact design, takes up minimal space, and is easy to operate, making it suitable for various working environments.
3:Wide Application Range: Suitable for machining a variety of metal materials, meeting the diverse needs of the machinery manufacturing and repair industries.
4:Strong Stability and Durability: Made from high-strength materials, the machine offers excellent stability and durability, ensuring continuous operation over long periods.
5:Variety of Options: This series offers a full range of specifications, providing different models to meet customer needs.
Applications
The B6066 Bullhead Planer Machine is widely used in the machinery manufacturing and repair industries, particularly in situations requiring high-precision machining. Whether for producing new parts or repairing existing equipment, this machine provides an efficient and reliable machining solution. Typical applications include planing machine components, flat and slot machining in mold manufacturing, and precision repair of various metal parts.

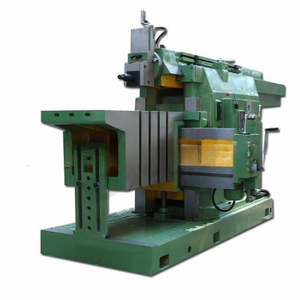

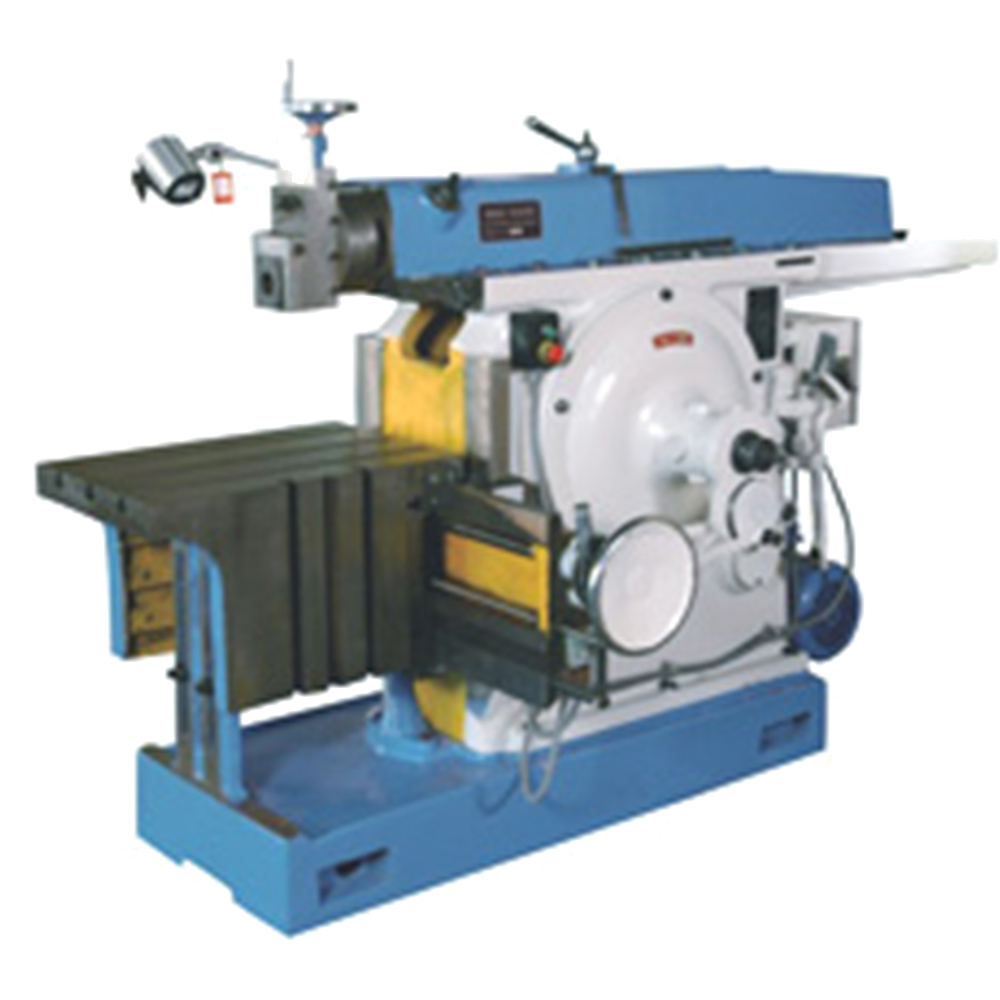

Products Pictures
| Specification | unit | B6066 | B6066J | |
| Worktable area (W×L) | mm | 660×450 | ||
| Worktable T-slots | Number of slots | 3 | ||
| Slot width | mm | 18 | ||
| Slot distance | mm | 125 | ||
| Maximum stroke of Worktable | Horizontal | mm | 600 | |
| Vertical | mm | 300 | ||
| Maximum planing length | mm | 660 | ||
| Maximum distance from the Worktable surface to the bottom of the ram | mm | 370 | ||
| Angle of rotation of the tool rest (without backing into the bed) | ±60° | |||
| Stroke of tool holder | mm | 125 | ||
| Maximum size of planer shank (width × thickness) | mm | 20×30 | ||
| Range of ram reciprocations per minute | times/min | 12.5~73 | ||
| Worktable feed range (horizontal) | mm | 0.33~3.33 | ||
| Worktable rapid traverse speeds | Horizontal | mm/min | 1.4(B6066J) | |
| Vertical | mm/min | 0.5(B6066J) | ||
| Prime mover power | kw | 3 | ||
| Rapid traverse motor power | kw | 0.37 | ||
| Machine volume (L×W×H) | mm | 2280x1520x1750 | ||
| Net weight of machine | kg | 1980 | 1990 | |
Products Features
1:High-Precision Machining: Capable of efficiently and precisely shaping flat surfaces, T-slots, dovetail slots, and other complex shapes, ensuring machining accuracy.
2:Compact and Easy to Operate: The machine features a compact design, takes up minimal space, and is easy to operate, making it suitable for various working environments.
3:Wide Application Range: Suitable for machining a variety of metal materials, meeting the diverse needs of the machinery manufacturing and repair industries.
4:Strong Stability and Durability: Made from high-strength materials, the machine offers excellent stability and durability, ensuring continuous operation over long periods.
5:Variety of Options: This series offers a full range of specifications, providing different models to meet customer needs.
Applications
The B6066 Bullhead Planer Machine is widely used in the machinery manufacturing and repair industries, particularly in situations requiring high-precision machining. Whether for producing new parts or repairing existing equipment, this machine provides an efficient and reliable machining solution. Typical applications include planing machine components, flat and slot machining in mold manufacturing, and precision repair of various metal parts.

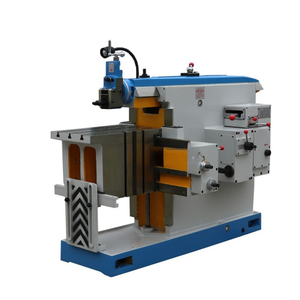

Products Pictures
