| Specification | Unit | Figures |
| Maximum planing length | mm | 1000 |
| Minimum planing length | mm | 150 |
| Maximum horizontal stroke of the worktable | mm | 800 |
| Maximum vertical stroke of the worktable | mm | 320 |
| Plane dimensions of the worktable (length × width) | mm | 1000*500 |
| Maximum distance from the bottom of the ram to the worktable | mm | 400 |
| Maximum working stroke of the tool holder | mm | 160 |
| Maximum rotation angle of the tool holder | mm | ±60° |
| Maximum planing length at the tool holder rotation angle | mm | 850 |
| Ram working speed | m/min | 3~38 |
| Maximum cutting force of the ram | KN | 28 |
| Central T-slot width of the upper worktable | mm | 22 |
| Center distance of the T-slot on the upper worktable | mm | 120 |
| Maximum load-bearing mass of the worktable | kg | 320 |
| Maximum size of the planer | mm | 30*45 |
| Main motor | kw | 7.5 |
| Motor for rapid movement of the worktable | kw | 0.75 |
| Flow rate of SYYBO₂ double vane pump | L/min | 50/100 |
| Machine tool dimensions (length × width × height) | mm | 3640×1550×1850 |
| Machine tool quality | kg | 4500 |
Products Features
1: The machine features extremely high machining precision, with a ram working speed ranging from 3 to 38 meters per minute, ensuring high-quality machining surfaces.
2: Equipped with a 7.5kW main motor and a 0.75kW rapid movement motor, it provides strong power support for efficient machining.
3: The tool holder rotation angle reaches ±60°, allowing flexible handling of various complex machining needs, suitable for processing a wide range of workpiece shapes and sizes.
4: With overall dimensions of 3640x1550x1850mm and a weight of 4500kg, the machine ensures stability and durability, suitable for long-term high-intensity operations.

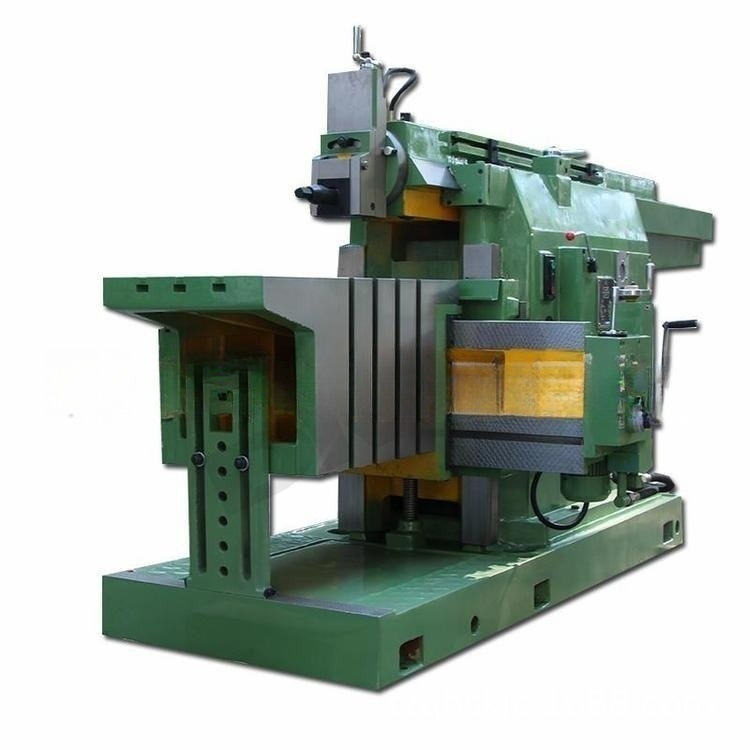

Products Pictures
| Specification | Unit | Figures |
| Maximum planing length | mm | 1000 |
| Minimum planing length | mm | 150 |
| Maximum horizontal stroke of the worktable | mm | 800 |
| Maximum vertical stroke of the worktable | mm | 320 |
| Plane dimensions of the worktable (length × width) | mm | 1000*500 |
| Maximum distance from the bottom of the ram to the worktable | mm | 400 |
| Maximum working stroke of the tool holder | mm | 160 |
| Maximum rotation angle of the tool holder | mm | ±60° |
| Maximum planing length at the tool holder rotation angle | mm | 850 |
| Ram working speed | m/min | 3~38 |
| Maximum cutting force of the ram | KN | 28 |
| Central T-slot width of the upper worktable | mm | 22 |
| Center distance of the T-slot on the upper worktable | mm | 120 |
| Maximum load-bearing mass of the worktable | kg | 320 |
| Maximum size of the planer | mm | 30*45 |
| Main motor | kw | 7.5 |
| Motor for rapid movement of the worktable | kw | 0.75 |
| Flow rate of SYYBO₂ double vane pump | L/min | 50/100 |
| Machine tool dimensions (length × width × height) | mm | 3640×1550×1850 |
| Machine tool quality | kg | 4500 |
Products Features
1: The machine features extremely high machining precision, with a ram working speed ranging from 3 to 38 meters per minute, ensuring high-quality machining surfaces.
2: Equipped with a 7.5kW main motor and a 0.75kW rapid movement motor, it provides strong power support for efficient machining.
3: The tool holder rotation angle reaches ±60°, allowing flexible handling of various complex machining needs, suitable for processing a wide range of workpiece shapes and sizes.
4: With overall dimensions of 3640x1550x1850mm and a weight of 4500kg, the machine ensures stability and durability, suitable for long-term high-intensity operations.

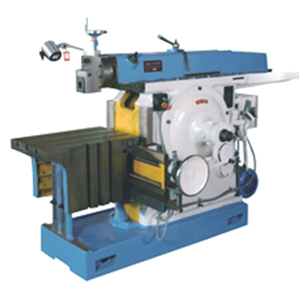

Products Pictures
