| Specification | Figures |
| Maximum planing length | B6080:800mm;B6085:850mm |
| Maximum horizontal movement distance of the worktable | 710mm |
| Maximum distance from the bottom of the slide to the worktable surface | 400mm |
| Maximum vertical movement distance of the worktable | 360mm |
| Working surface size on the worktable (length × width) | 800mm×450mm |
| Tool holder travel | 160mm |
| Tool holder rotation angle | ±60° |
| Maximum size of the planer that can be installed (width × thickness) | 25mm×40mm |
| Number of reciprocating movements of the slide per minute | 17、24、35、50、70、100 |
| Horizontal feed 12 levels | 0.25mm～3mm |
| Vertical feed 12 levels | 0.12~1.5mm |
| Horizontal movement | 1.2m/min |
| Vertical movement | 0.58m/min |
| Central T-slot size of the worktable | 22mm |
| Main motor power | 5.5kW |
| Worktable fast movement motor power | 1.1kw |
| Overall dimensions (length × width × height) | 2950mm×1325mm×1693mm |
| Weight | 3050kg |
Products Features
1: The B6080/B6085 Bullhead Planer Machine features exceptional machining precision, with a ram reciprocating frequency of 17 to 100 times per minute, ensuring high-quality machining surfaces.
2: The tool holder rotation angle can reach up to ±60°, providing greater machining flexibility without retracting the tool holder turntable into the horizontal guide rail of the bed.
3: Equipped with a 12-level horizontal and vertical feed adjustment system, with horizontal feed ranges from 0.25mm to 3mm and vertical feed ranges from 0.12mm to 1.5mm, meeting various machining requirements.
4: The main motor power is 5.5kW, and the table rapid movement motor power is 1.1kW, providing strong power support for efficient machining.

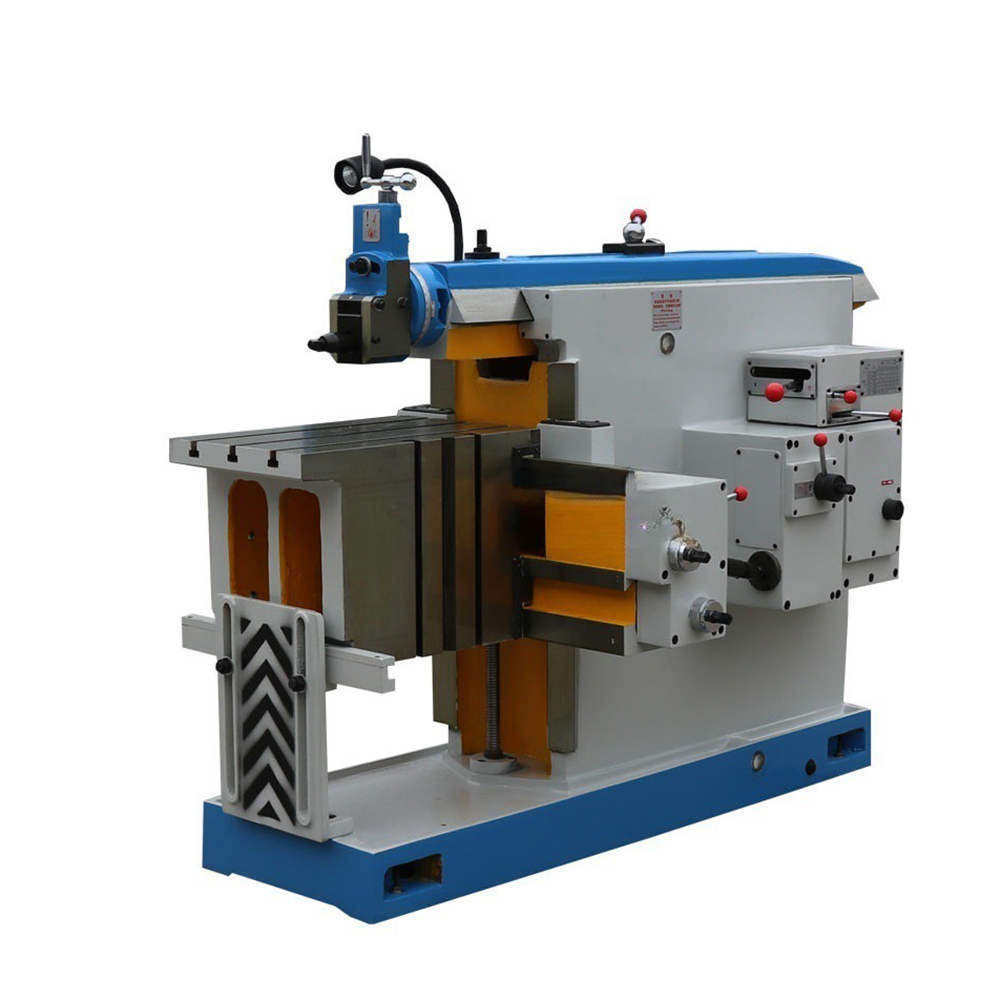

Products Pictures
