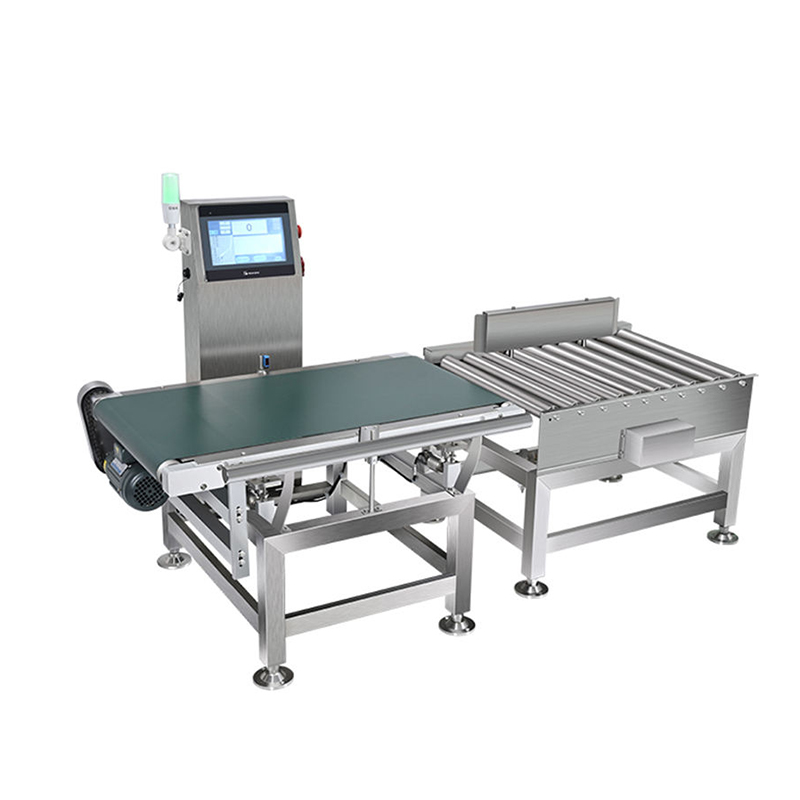

Industrial checkweigher machine for food production lines

Conveyor weighing system for automatic weight inspection

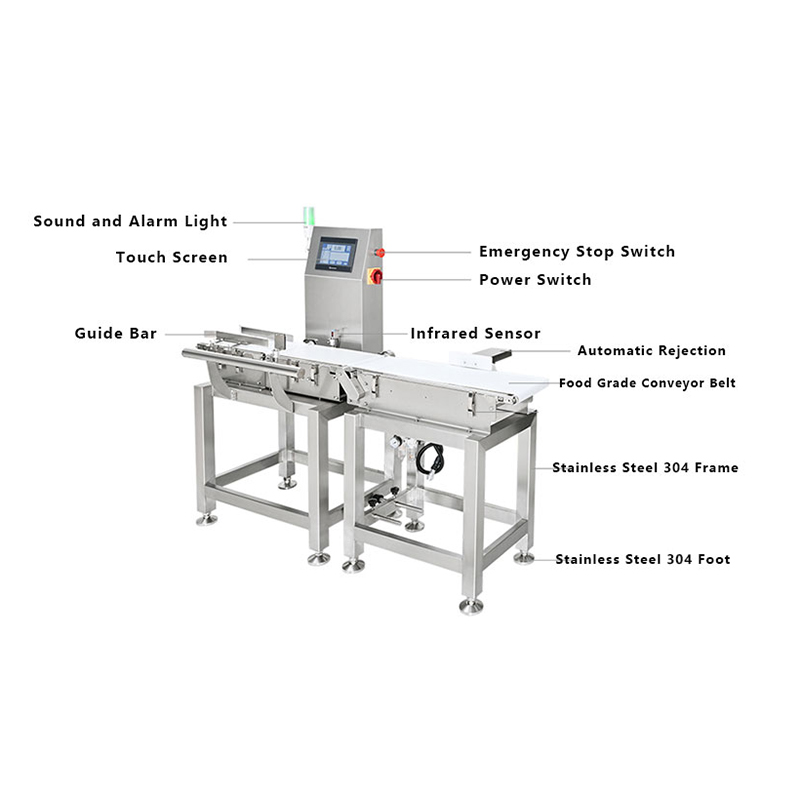

High-precision checkweigher with stainless steel frame

Industrial Conveyor Belt Weight Scale Machine Check Weigher for Food

This industrial conveyor checkweigher is designed for high-precision online weight inspection in automated production lines. It continuously detects overweight, underweight, and missing-content products and automatically rejects unqualified items.
Built with SUS304 stainless steel, a sensitive load cell, and a user-friendly touch screen, it ensures fast detection, high accuracy, and seamless integration with food, chemical, beverage, and pharmaceutical production lines.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High-Accuracy Load Cell:

Ensures reliable weighing from 1–3g precision.

Touch Screen Interface:

Intuitive operation with multi-level password protection.

Automatic Rejecting System:

Efficiently removes unqualified products in real time.

Zero Calibration:

Supports manual/automatic zero tracking for stable accuracy.

Fast Data Processing:

Equipped with high-speed processors for quick response.

Easy Cleaning & Maintenance:

Detachable conveyor belt design.

Flexible Integration:

Adjustable height and modular structure for multiple production lines.

Data Export Capability:

USB export, Excel reports, and up to one-year data storage.

Self-Learning Function:

Automatically optimizes parameters for up to 2000 product types.

Products Specification:

Model	CW150	CW200	CW300	CW400	CW500	CW600
Weight Range	≤200g	≤1000g	≤3000g	≤20Kg	≤40Kg	≤40Kg
Minimum Scale	0.01g	0.1g	0.1g	0.1g	0.1g	0.1g
Accuracy	±0.2-0.5g	±0.3-1g	±0.5-3g	±1-5g	±5-20g	±5-20g
Speed	0-70m/m	0-70m/m	0-70m/m	0-60m/m	0-50m/m	0-50m/m
Product's Length	150mm	300mm	300mm	500mm	650mm	650mm
Product's Width	120mm	180mm	270mm	350mm	440mm	530mm
Power	0.1KW	0.15KW	0.4KW	0.4KW	0.4KW	0.4KW
Power Supply	AC220V/110V ± 10% 50/60Hz
Rejection	Air Blowing/Pusher/Swing Arm/Flap/Sinking Conveyor Rejection
Operation Panel	Touch Screen
Compressed Air	0.6-1Mpa
Material	SUS304
