Machine Features:
High Precision C3 Accuracy:
Ensures stable and repeatable weighing performance for industrial applications.
Wide Capacity Range:
Supports multiple load ratings from 5 kg up to 500 kg for flexible system design.
IP68 Fully Sealed:
Provides dustproof and waterproof protection for outdoor and harsh environments.
Low Non-Linearity & Creep:
Offers accurate measurement over long operating periods.
High Overload Protection:
150% safe overload and 200% destructive load for durable field usage.
Robust Construction:
Built with alloy steel or stainless steel for strong mechanical strength.
Compatible with Belt Scales:
Ideal for continuous weighing on conveyors and automated production lines.
Products Specification:
| Item | Details |
| Type | Belt Bending Beam Load Cell / Weight Sensor |
| Rated Capacity | 5 / 10 / 20 / 30 / 40 / 50 / 75 / 100 / 150 / 200 / 250 / 300 / 500 kg |
| Accuracy Class | C3 |
| Rated Output | 2.0 ± 0.002 mV/V |
| Non-linearity | ±0.02% F.S |
| Creep (30 min) | ±0.016% F.S |
| Input Impedance | 400 ± 10 Ω |
| Output Impedance | 351 ± 2 Ω |
| Operating Temperature | –10°C to +40°C |
| Safe Overload | 150% F.S |
| Destructive Load | 200% F.S |
| Recommended Excitation | 4–12 VDC (Max 15 VDC) |
| Cable | 4-wire shielded, 0.5–3 m (Red: Exc+, Black: Exc–, Green: Sig+, White: Sig–) |
| Material | Alloy steel or stainless steel |
| Protection Level | IP68 |
| Applications | Belt scales, hopper scales, floor scales, blending systems, weighing mounts, custom weighing solutions |

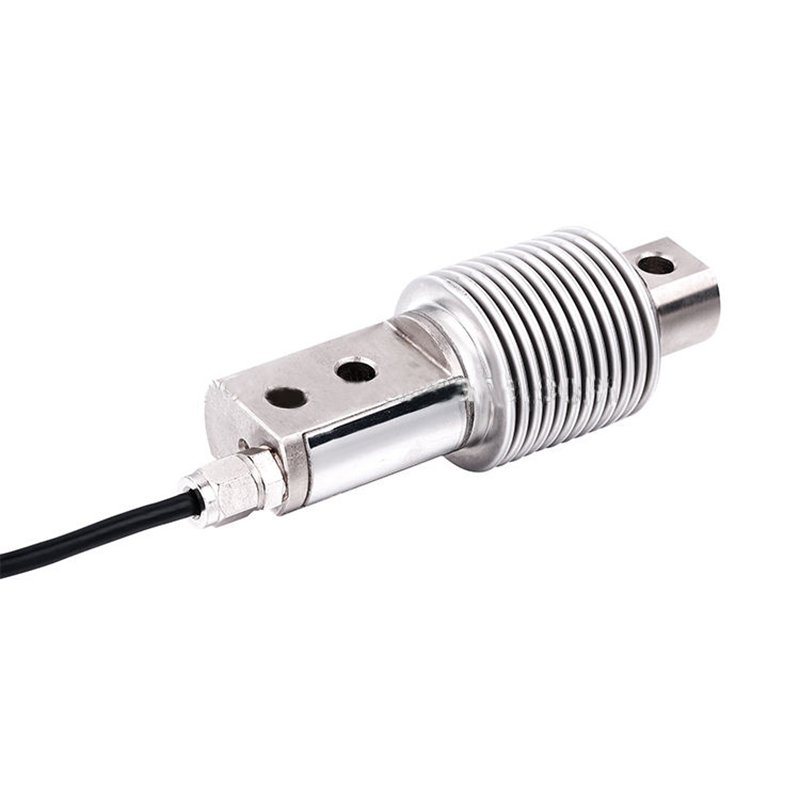

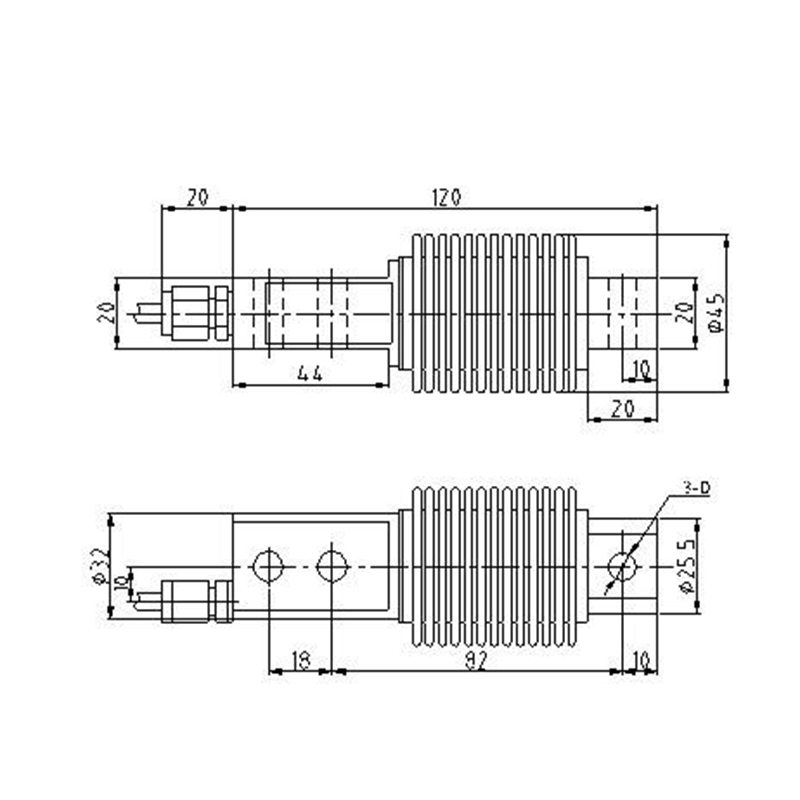

Products Pictures:
