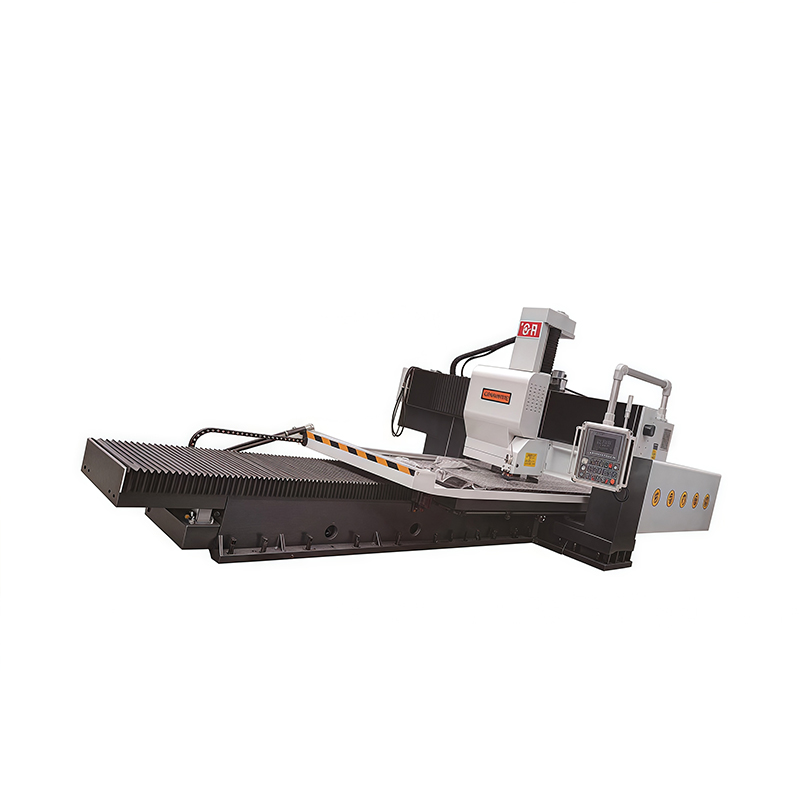

1230NC2 CNC surface grinding machine front view with gantry structure for heavy-duty precision surface machining
1230NC2 CNC surface grinding machine front view with gantry structure for heavy-duty precision surface machining 1230NC2 CNC surface grinding machine front view with gantry structure for heavy-duty precision surface machining

loading

Mking 1230NC2 CNC Gantry Grinding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The 1230NC2 is a heavy-duty two-axis CNC gantry surface grinder featuring long travel range, high rigidity, and excellent machining stability. It utilizes hydraulic-driven X-axis and servo-controlled Y/Z axes, ideal for large molds, heavy-duty machinery parts, and high-precision surface grinding.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Large-scale machining range: Max. travel of 1200×3200mm to accommodate large workpieces

2: Stable and efficient drive system: Hydraulic left-right axis with servo front-back and vertical axes for smooth and precise movement

3: CNC control with fine adjustments: Supports electronic handwheel, rapid feed, and automatic step feeding for user-friendly operation


Technical Parameter


Specifications/ModelMachine Model1230NC2
CapacityMaximum stroke (width x length)1200x3200
Distance from worktable to spindle centerAbout 600mm
Maximum height from worktable to grinding wheel400mm
Grinding area1200x3000
Distance through the inner side of the gantry1450mm
Left and right feedTable T-slot2-25m/min
Horizontal axis feedFeed amount per time0.1~10mm
Rapid moving speed1 50mm/min
Electronic handwheel one grid0.01/0.1/1mm
Electronic handwheel one circle0.1/1/10mm
Up and down feedFeed amount per time0.001~0.08mm
Rapid moving speed150mm/min
Electronic handwheel one grid0.001/0.01/0.1mm
Electronic handwheel one circle0.01/0.1/1mm
Grinding wheelDimensions (outer diameter x width x inner diameter)510x(50-80)x203mm
Speed960r.p.m
MotorHorizontal axis spindle motor15KW
Vertical axis spindle motor15KW
Oil tank motor18.5KW
DimensionsMachine height (mm)3000
Length x width x height (mm)9000x3000
Gross weight (Kg)20000
