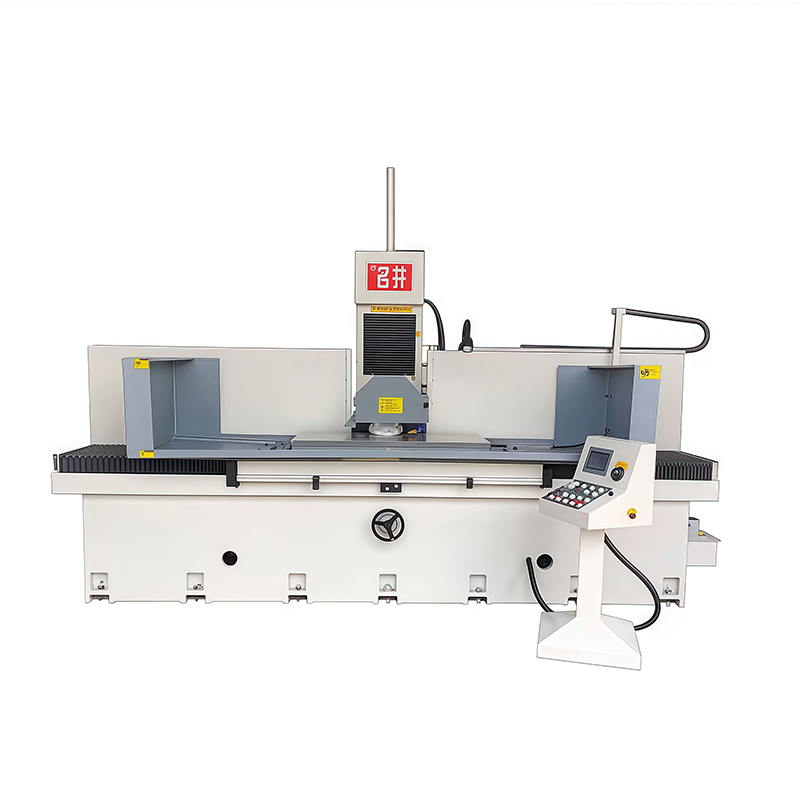

616AHD precision vertical surface grinding machine front view with servo vertical system for automated high-accuracy machining

Mking 616AHD Moving Column Precision Surface Grinding Machine

The 616AHD is a column-moving precision surface grinder with fully automatic longitudinal and crossfeed, and servo-driven vertical axis. It is ideal for high-precision machining in mold manufacturing, precision hardware, and machinery industries, offering superior stability and automation.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: High-rigidity column-moving design: Ensures stability during heavy-duty grinding

2: Servo vertical system: Enables precise depth control and fine vertical positioning

3: Automated feed system: Supports multi-level feeding for improved efficiency and reduced labor

Technical Parameter

Specifications/Model	Machine Model	Unit	616AHD
Capacity	Table working area	mm	1600*600
	Maximum left and right movement	mm	1800
	Maximum front and back movement	mm	640
	Table surface to spindle center	mm	700
	Maximum weight of table	Kg	1000
Workbench	Table T-slot	mmxN	3-16
	Table speed	m/min	7-23
	Table track	/	Double V
Front and rear structure	Front and rear mechanical	mm	0.02
	Handwheel feed	mm	5
	Front and rear electronic	mm	/
	Handwheel feed	mm	/
	Front and rear automatic feed	mm	0.5-20
	Front and rear maximum rapid movement	mm/min	900
Grinding wheel	Grinding wheel size	MM	40040127
Grinding wheel	Spindle speed	R.p.m	1450
Upper and lower structure	Up and down electronic	mm	0.001/0.01/0.1
	Handwheel feed	mm	0.01/0.1/1
	Automatic feed	mm	0.001-0.04
	Maximum up and down rapid movement	mm/min	175
Motor	Spindle motor	kW	7.5
	Up and down motor	kW	1
	Hydraulic motor	KW	3.75
	Flush motor	kW	0.1
	Front and rear drive motor	kW	0.37
Dimensions	Machine height	mm	2400
	Occupancy area	mm	2350*6300
	Gross weight	kg	7500
