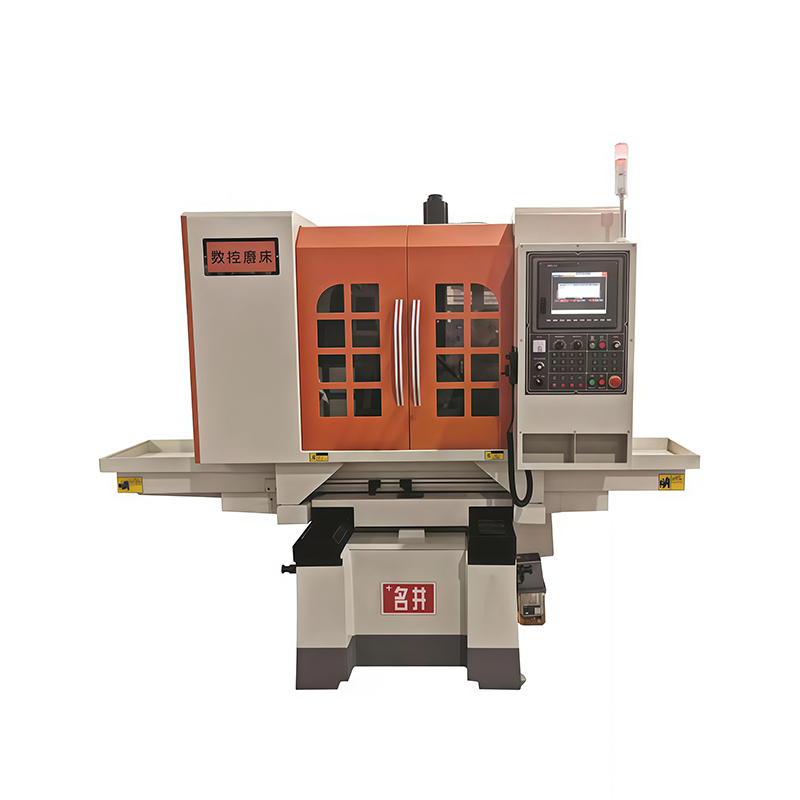

MG-307NC2 precision CNC grinding machine front view with dual-axis control for efficient surface processing
MG-307NC2 precision CNC grinding machine front view with dual-axis control for efficient surface processing MG-307NC2 precision CNC grinding machine front view with dual-axis control for efficient surface processing

loading

Mking 307NC2 CNC Precision Surface Grinding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
MG-307NC2 is a high-precision CNC surface grinder featuring dual-axis control and hydraulic-driven left-right motion. It is ideal for efficient machining of precision parts. With a robust structure and stable operation, it is widely used in mold, hardware, automotive, and other surface processing industries.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Dual-axis CNC system ensures automated, efficient machining with improved consistency and precision.

2: Equipped with a large 355×40×127 mm grinding wheel for handling bigger workpieces, enhancing efficiency.

3：Supports manual and automatic feed in both vertical and horizontal directions for flexible operations.


Technical Parameter

ItemUnitValue
Table Working Areamm300×700
Max. Longitudinal Travelmm700
Distance Table to Spindlemm475
Max. Table LoadKg200
T-slot (size × number)mm×N14×1
Table Speedm/min5–23
Table Guideway/Double-V
Handfeed (Cross)mm0.001–0.1
Auto Feed (Cross)mm0.01–10
Rapid Feed (Cross)mm820-960
Wheel Sizemm355×40×127
Spindle Speed 1R.p.m1480
Spindle Speed 2R.p.m1780
Handfeed (Vertical)mm0.001–0.01
Auto Feed (Vertical)mm0.001–0.01
Rapid Feed (Vertical)mm/min100
Spindle MotorHp×P7.5×4
Hydraulic MotorW1000
Coolant MotorHp×P3×4
Cross Feed MotorW80
Vertical Feed MotorW80
Machine Heightmm2200
Floor Spacemm2600×2100
Net Weightkg3800


Previous:
Next:
grinding machine cnc grinding machine precision grinder
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

616AHD precision vertical surface grinding machine front view with servo vertical system for automated high-accuracy machining
Mking 616AHD Moving Column Precision Surface Grinding Machine
510CNC column-moving CNC surface grinder front view with servo control system for precision industrial grinding
Mking 510CNC Moving Column Three-Axis Grinding Machine
1230NC2 CNC surface grinding machine front view with gantry structure for heavy-duty precision surface machining

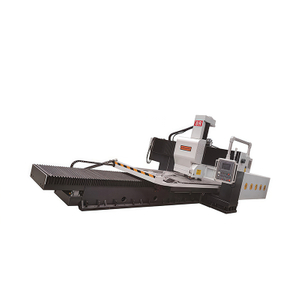

Mking 1230NC2 CNC Gantry Grinding Machine
