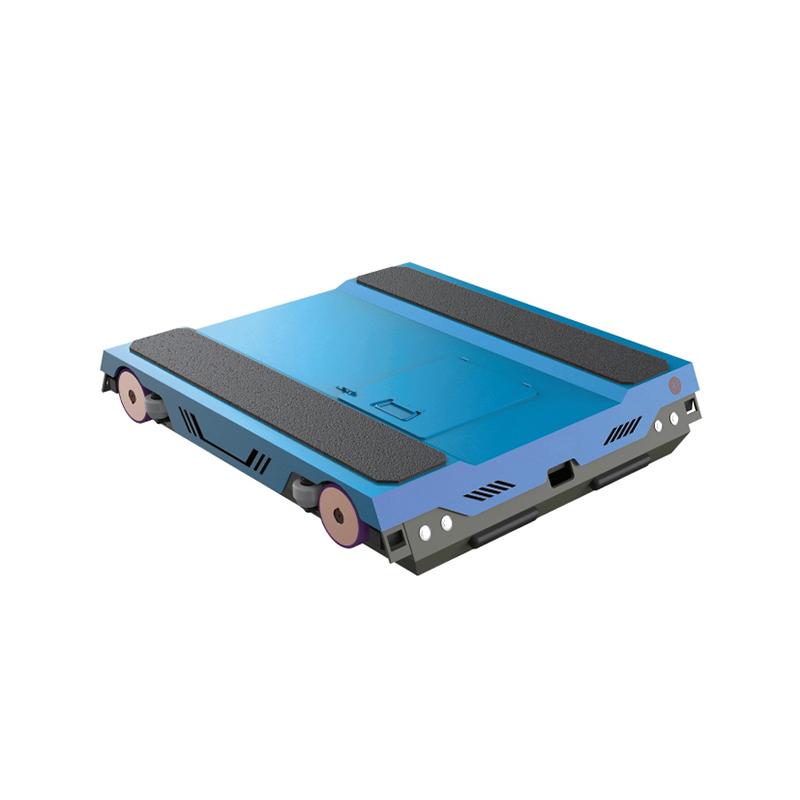

XBY-D-01 two-way pallet shuttle for automated warehouse storage

XBY-D-01 Two Way Pallet Shuttle

The pallet two-way shuttle robot uses pallets as the cargo transport unit. It cooperates with forklifts, stackers, and shuttle mother carts to achieve automated access in a three-dimensional warehouse system. It supports both First In, First Out (FIFO) and First In, Last Out (FILO) operation modes. Shuttle robots can also be transported via forklifts, stackers, or mother carts to access different cargo lanes flexibly.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Precise Positioning

The front and rear of the shuttle body are equipped with positioning sensors, allowing accurate location and retrieval of goods.

2: Flexible Automation Modes

Supports both fully automated and semi-automated warehousing operations to meet different application needs.

3: Dual Operation Modes

Compatible with FIFO and FILO inventory strategies, enabling adaptable warehouse logistics planning.

4: High Integration & Efficiency

Features high integration level, high operating speed, excellent positioning accuracy, and high space utilization.

5: Cost-Effective

Efficient design lowers operational and infrastructure costs, making it ideal for high-density storage environments.

Products Parameters：

Pallet width	1000-1600mm
Tray depth	800-1200mm
Rated load capacity	1500kg
Body weight	250kg
Traveling speed (unloaded)	≤120m/min
Walking acceleration (unloaded)	1m/s²
Walking speed(full load)	≤80m/min
Walking acceleration (full load)	0.4m/s²
Walking positioning accuracy	±2mm
Lifting stroke	30mm
Communication method	WIFI
Power supply type	Lithium iron phosphate battery
Charging method	Automatic charging
Charging ambient temperature	-25℃~0℃ (low temperature) /0℃~40℃ (normal))
Operating ambient temperature	-25℃~0℃ (low temperature) /0℃~40℃ (normal))
Operating noise value	≤70dB(A)
