XBY-B-16 Live Pallet Rack
XBY-B-16 Live Pallet Rack XBY-B-16 Live Pallet Rack
XBY-B-16 Live Pallet Rack XBY-B-16 Live Pallet Rack

loading

XBY-B-16 Live Pallet Rack

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Gravity shelves, also known as roller racks, belong to the pallet-type storage shelves in warehouse systems. Gravity shelves are one of the derivatives of crossbeam shelves. The shelf structure is similar to crossbeam shelves, except for the installation of roller tracks on the crossbeam, which tilt at 3–5°. The pallet goods are transported by forklift to the inlet of the shelf, and using their own weight, the pallet automatically slides from the inlet to the pick-up port at the other end. Gravity shelves belong to the First-In, First-Out (FIFO) storage method.
SKU:
Availability:
Quantity:

Product Features:

1. The goods are stored from the high end, slide to the low end, and are taken out from the low end. During the sliding process of goods, dampers are installed on the slide to control the sliding speed of the goods within a safe range. A separator is installed at one end of the shipping chute, and the handling machinery can smoothly remove the goods at the first board position.


2. The goods follow the order of first in, first out. The shelves have high storage density and flexible coordination function.


3. Suitable for storage operations using pallets as carriers. The goods are neatly stacked, providing a good solution for the storage of large and heavy items. The utilization rate of storage space is over 75%, and only one entry and exit channel is required.


4. Gravity shelves are very environmentally friendly, all in a non-powered form, with no energy consumption, low noise, safety and reliability, and can operate at full load.

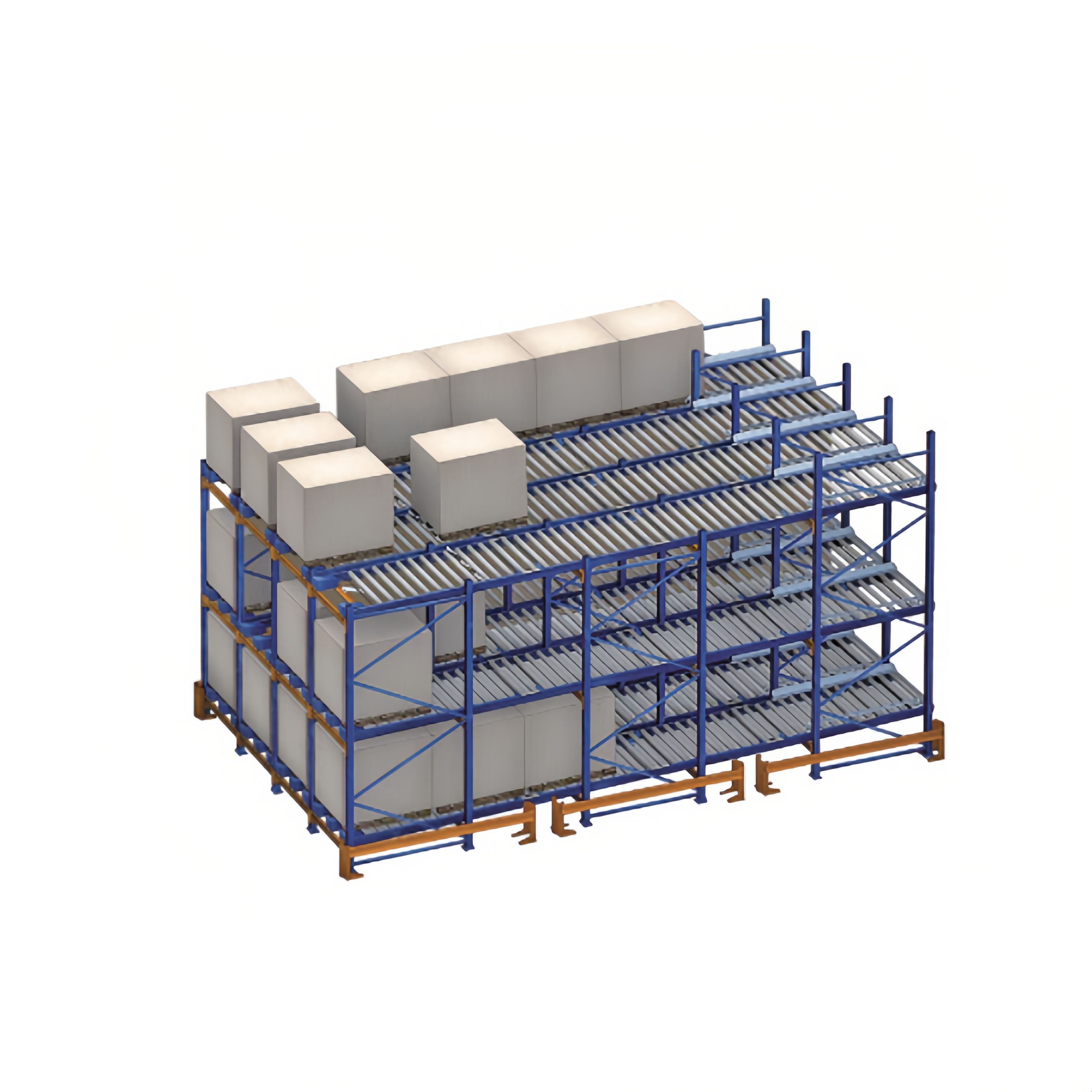

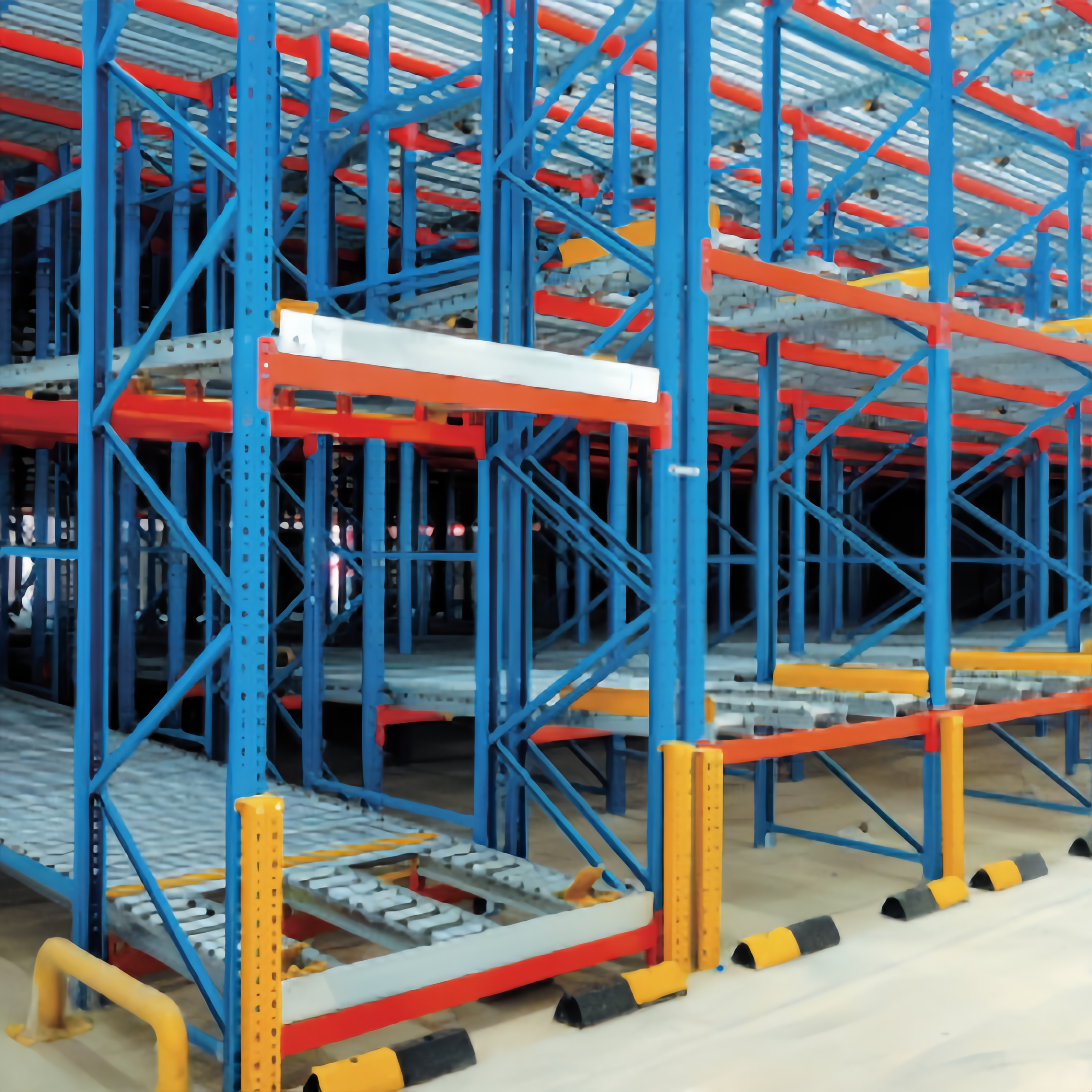

Products Pictures:

主图
