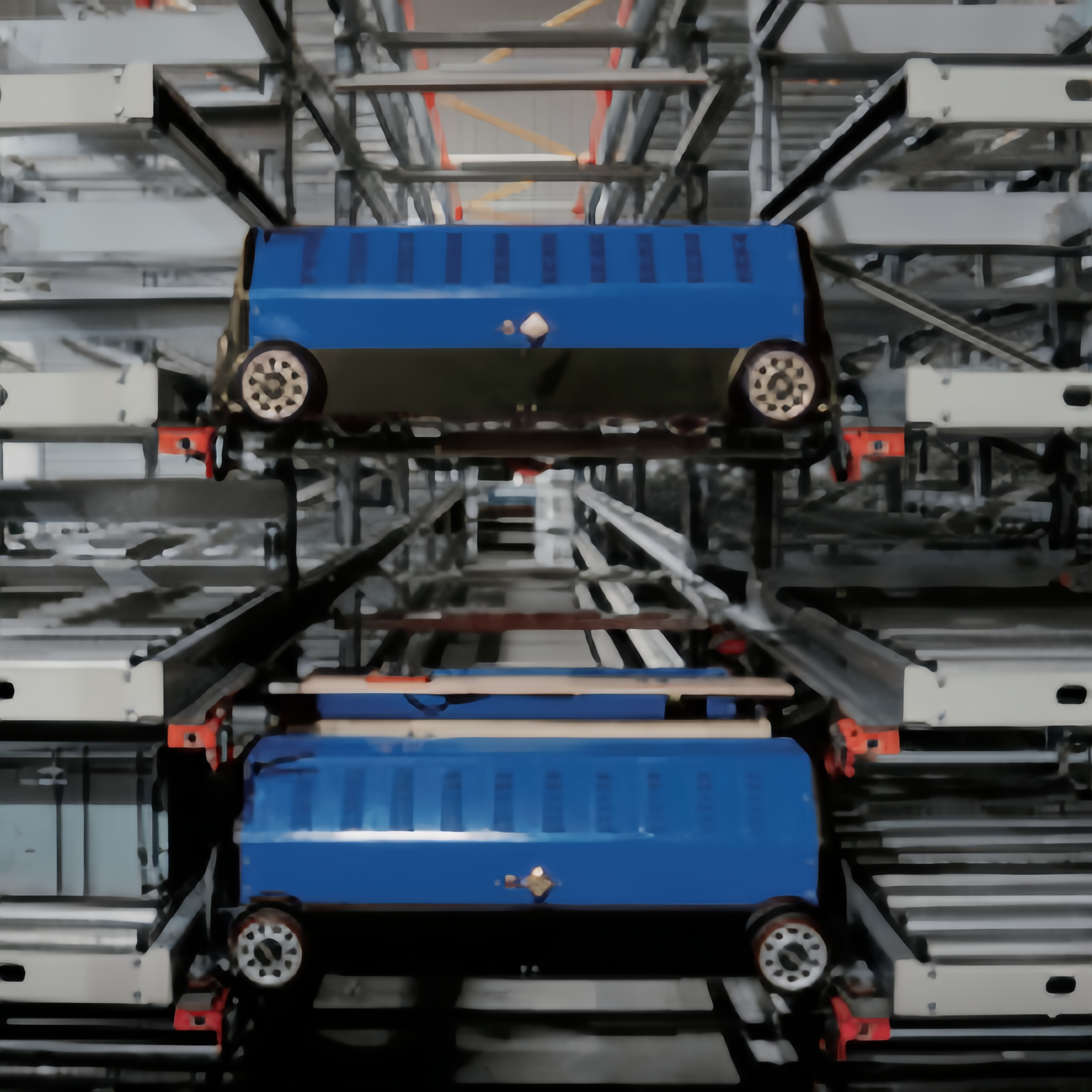

Intelligent bin shuttle robot operating in automated warehouse system

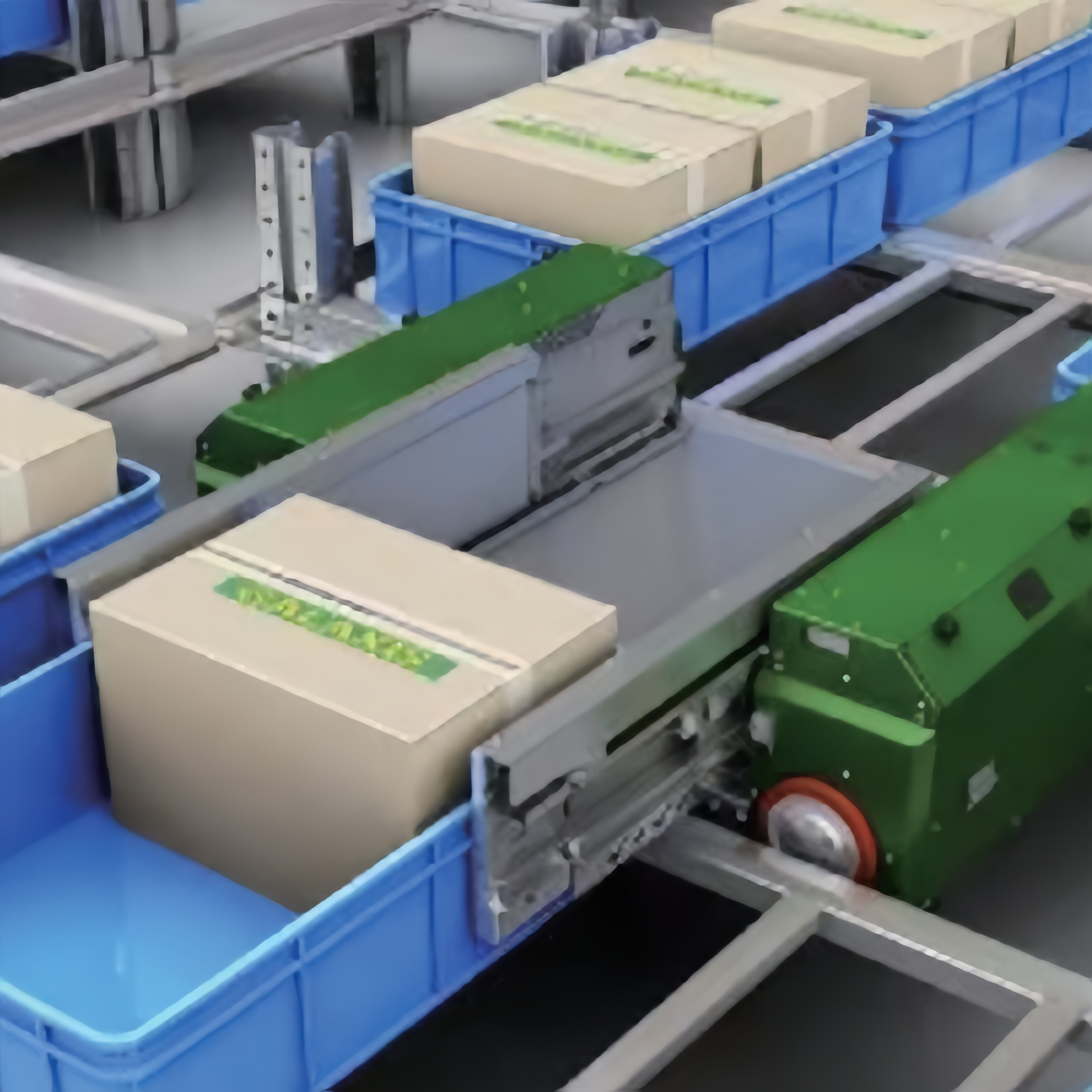

Four-way material box shuttle for high-density goods-to-person systems

XBY-D-04 Four Way Material Box Shuttle Car

The four-way shuttle robot for material boxes is designed for the storage and retrieval of material boxes, cardboard boxes, and standardized unit goods. It supports a variety of transfer methods and integrates high flexibility, strong adaptability, and dynamic maneuverability. This type of robot is widely used in goods-to-person picking systems.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Stronger Flexibility

Suitable for different sizes of cardboard boxes, material boxes, and standardized modular goods.

2: Multi-Layer Operation

Capable of operating flexibly in three-dimensional space by changing layers via an elevator system.

3: High Warehouse Efficiency

Effectively improves the speed, storage density, accuracy, and throughput of warehouses, factories, or distribution centers.

Products Parameters：

Vehicle Model	Two way single extension	Four way double extension
Overall dimensions	L1056W780H305mm	L1056W1020H305mm
Operating weight	100kg	110kg
maximum payload	50kg	50kg
X-axis maximum speed	5m/s	5m/s
X-axis maximum acceleration	2m/s²	2m/s²
Y-axis maximum speed	2m/s	2m/s
Y-axis maximum acceleration	1m/s²	1m/s²
maximum cargo size	L640*W420mm	L600*W420mm
Minimum cargo size	L300*W300mm	L300*W300mm
Minimum bin height	50mm	50mm
Communication method	WIFI	WIFI
Walking positioning accuracy	±2mm	±2mm
Travel control mode	closed loop servo-control system	closed loop servo-control system
Power supply method	Battery/supercapacitor	Battery/supercapacitor
Supply Voltage	48V	48V
Charging and discharging times	＞500 thousand	＞500 thousand
Operation mode	Automatic mode/Manual mode	Automatic mode/Manual mode
Charging method	Automatic online charging	Automatic online charging
Charging ambient temperature	-25℃~0℃ (low temperature) /0℃~50℃ (normal))	-25℃~0℃ (low temperature) /0℃~50℃ (normal))
Operating ambient temperature	-25℃~0℃ (low temperature) /0℃~50℃ (normal))	-25℃~0℃ (low temperature) /0℃~50℃ (normal))
Storage environment humidity	20%-90%	20%-90%
