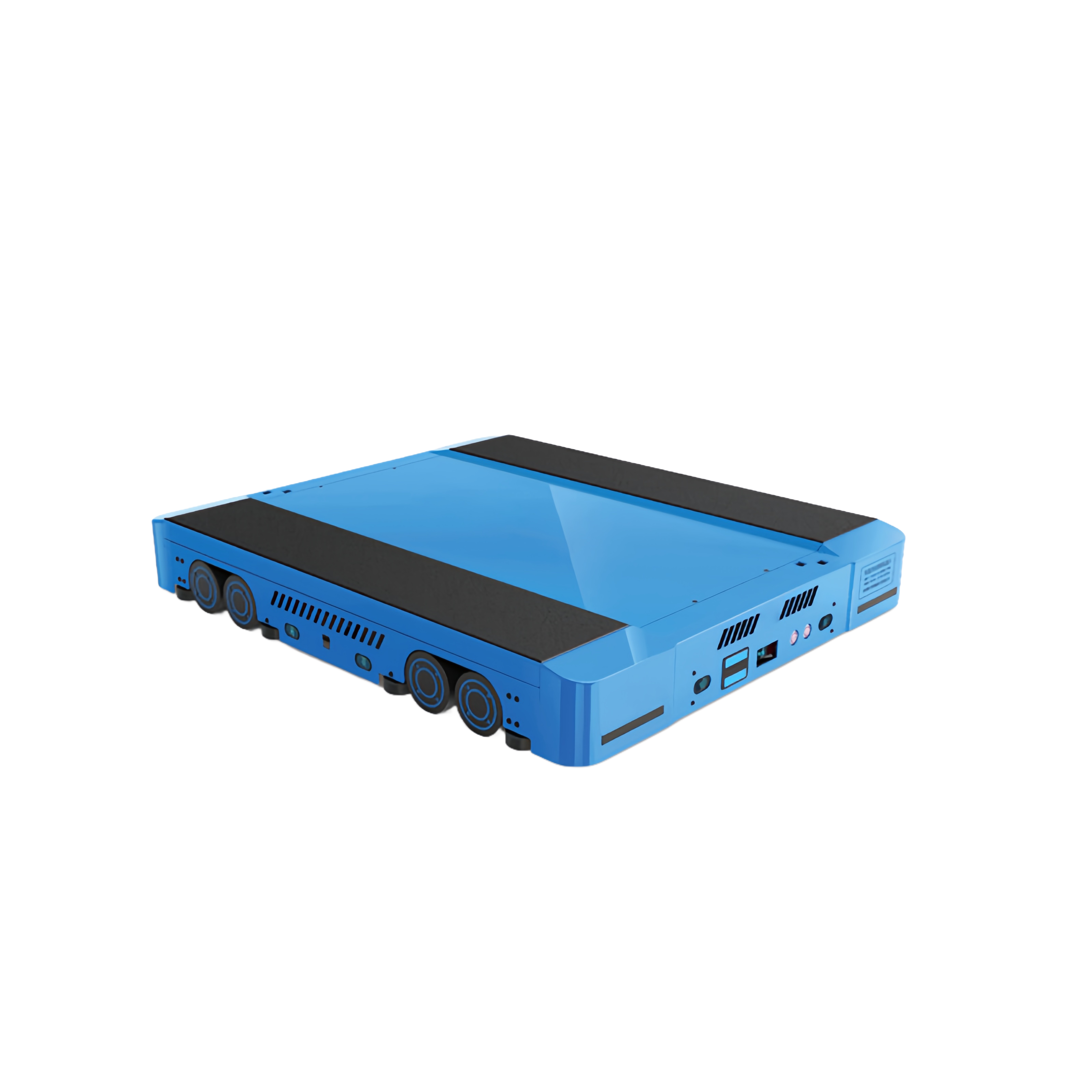

XBY-D-02 four-way pallet shuttle for automated warehouse handling

XBY-D-02 Four Way Pallet Shuttle

The pallet four-way shuttle robot uses the pallet as the cargo transport unit and integrates multiple functions including four-way travel, on-the-spot track switching, automatic handling, intelligent control, and dynamic management. This ultra-thin model saves more space and reduces racking costs. It features faster traveling speed and higher handling efficiency. With its wide temperature band design, it can operate stably between -25°C and +40°C.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Four-Way Travel

Capable of both longitudinal and transverse movement. In combination with a layer-changing elevator, it can perform cross-aisle and cross-level operations.

2: Convenient Positioning

Utilizes a simplified positioning method that removes the need for installing positioning markers in the aisles.

3: Intelligent Operation

Equipped with an onboard control system that provides real-time feedback on travel paths and dynamically adjusts them. The robot autonomously optimizes and updates routes to enable point-to-point transport and storage.

4: Multi-Vehicle Collaboration

Under the coordination of a dynamic monitoring and scheduling management system, multiple shuttle robots can work in collaboration efficiently.

Products Parameters：

Pallet width	1000-1600mm
Tray depth	800-1200mm
Rated load capacity	1500kg
Trolley self weight	300kg
Main channel walking speed (unloaded)	≤120m/min
Sub channel travel speed (unloaded)	≤120m/min
Walking acceleration (unloaded)	1m/s²
Main channel walking speed (full load)	≤80m/min
Sub channel travel speed (full load)	≤80m/min
Walking acceleration (full load)	0.4m/s²
Lifting stroke	60mm
Rise and fall time	2s
Walking positioning accuracy	±2mm
Communication method	WIFI
Battery type	Lithium iron phosphate battery
Battery life/charging time	6-8H/1-2H
Charging method	Automatic charging
Charging ambient temperature	-25℃~0℃ (low temperature) /0℃~40℃ (normal))
Operating ambient temperature	-25℃~0℃ (low temperature) /0℃~40℃ (normal))
Operating noise value	≤70dB(A)
