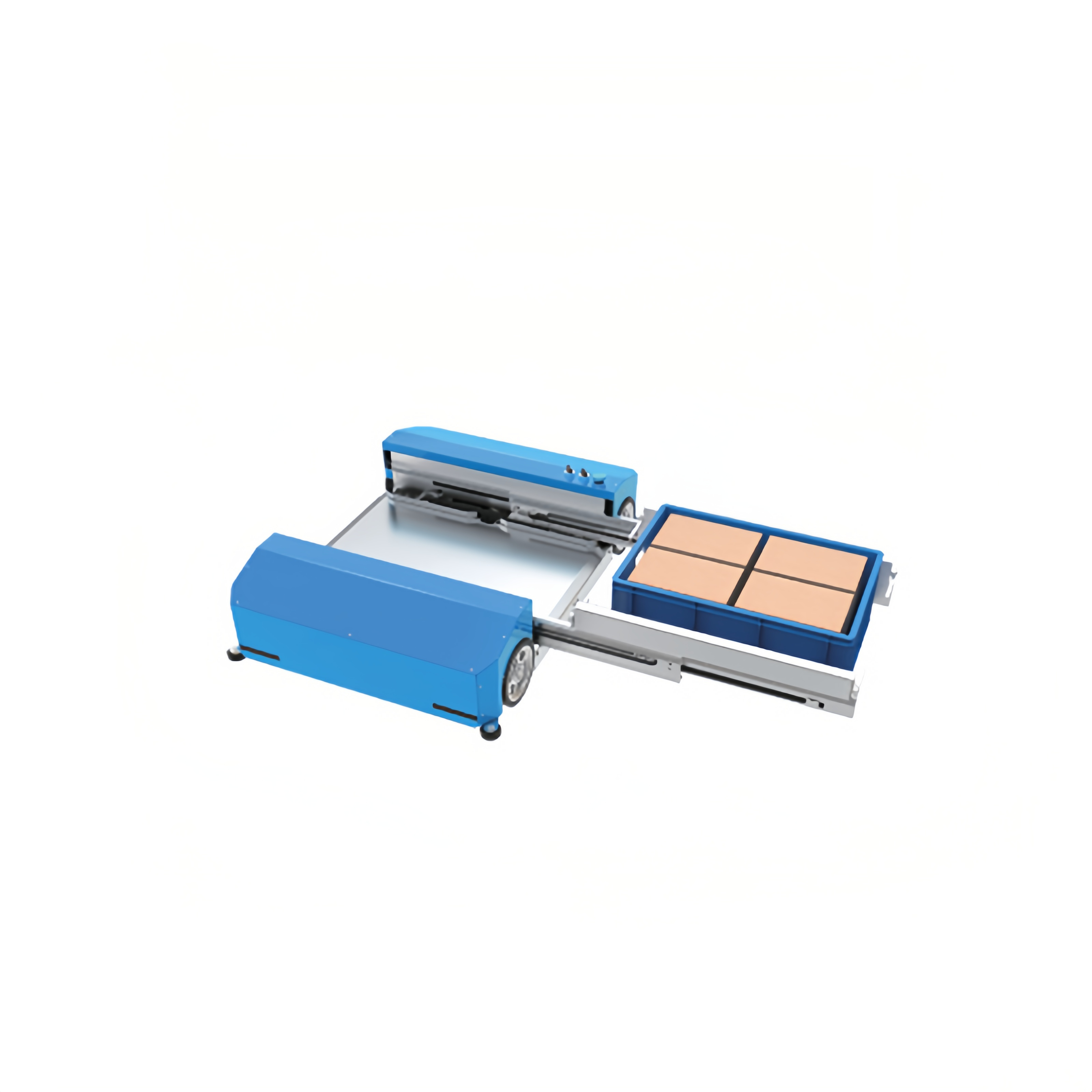

XBY-D-03 two-way tote shuttle for automated material box storage

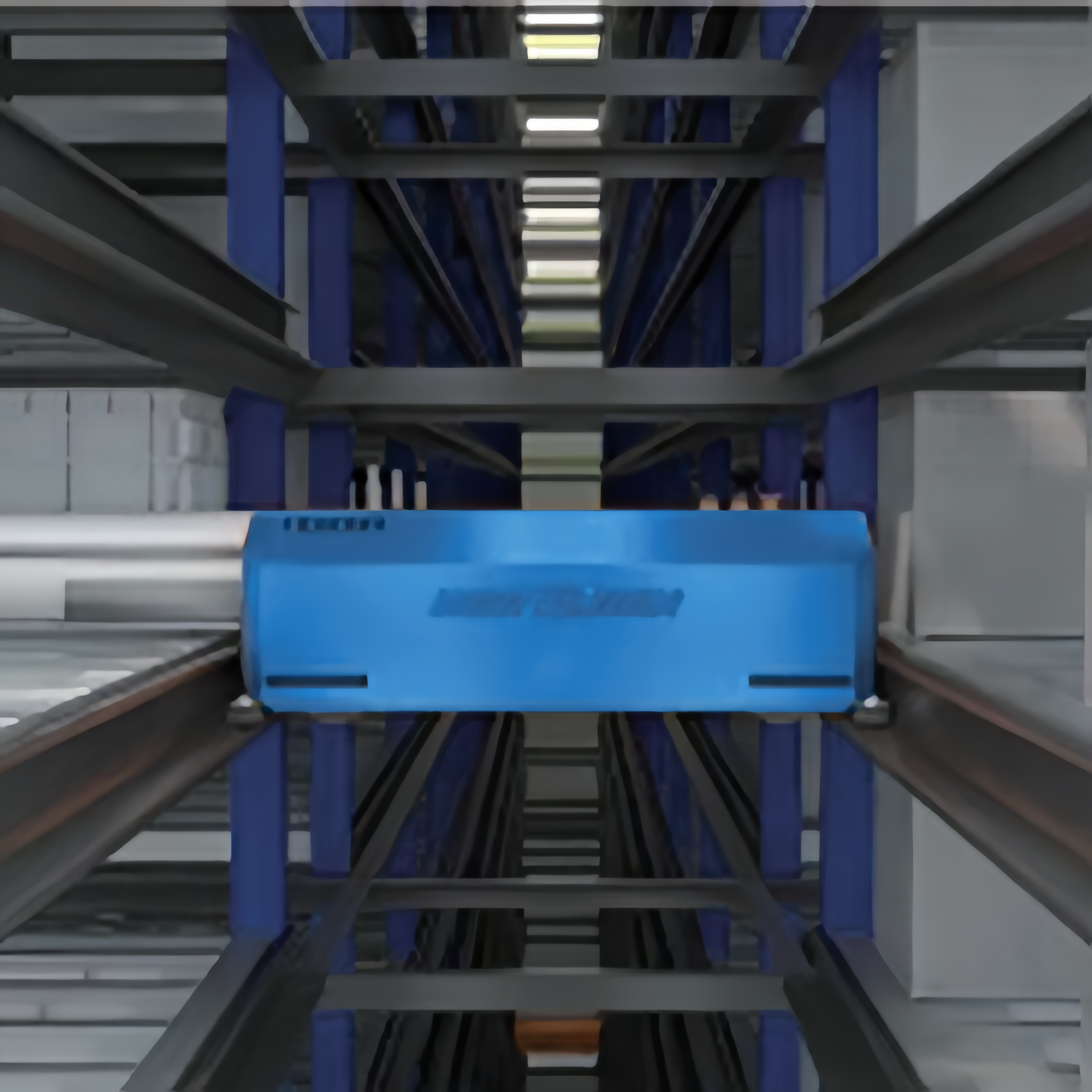

Bin shuttle system for high-density warehouse automation

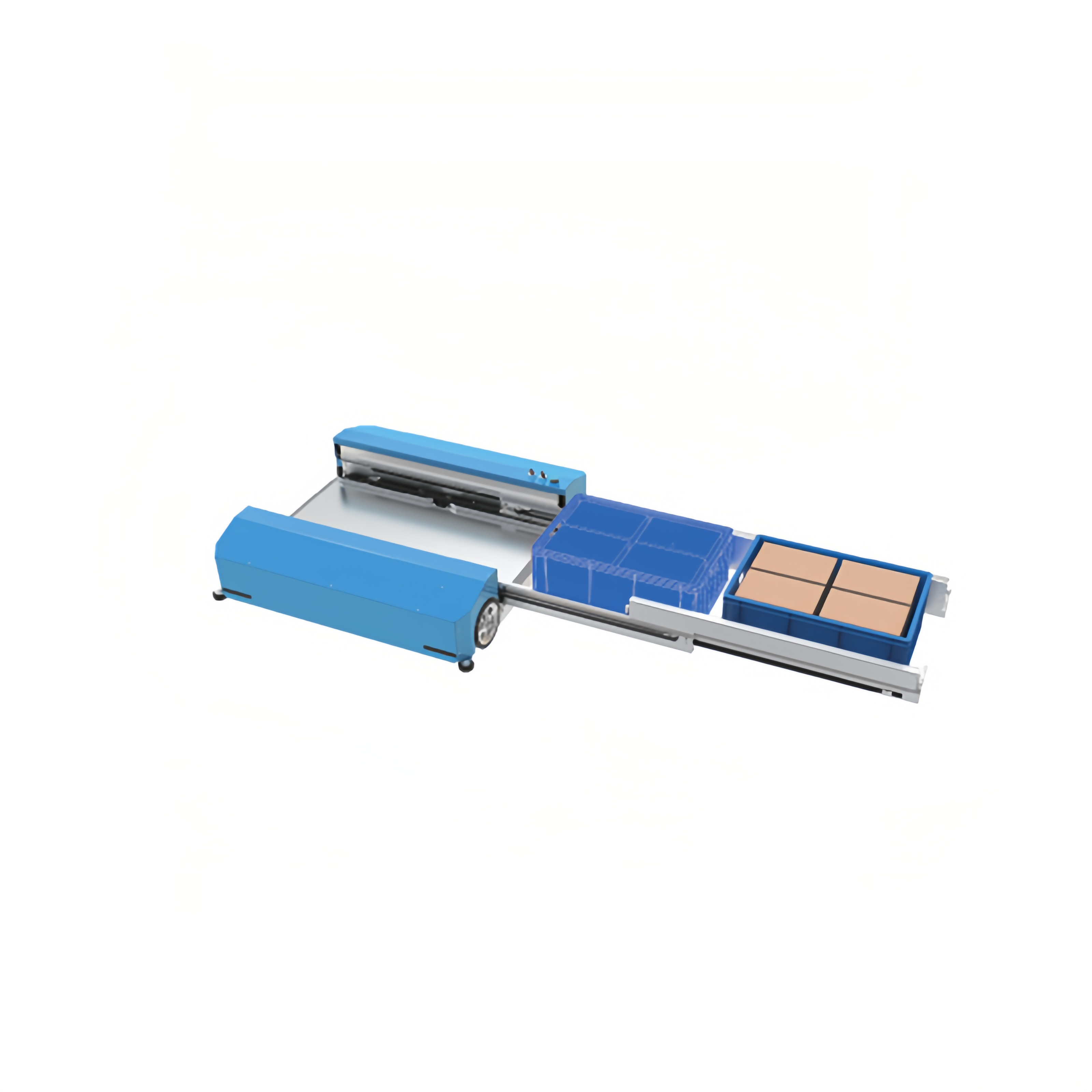

Dual-deep two-way shuttle robot for flexible box handling

XBY-D-03 Two Way Material Box Shuttle Car

The two-way shuttle robot for material boxes uses material boxes, cardboard boxes, and small packages as cargo units. It adopts double-deep forks to effectively improve storage density. With greater efficiency, flexibility, and adaptability, this robot helps enterprises enhance their warehouse efficiency.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Stronger Flexibility

Suitable for various sizes of cardboard boxes, material boxes, and standardized modular goods.

2: Multi-Layer Operation

By switching layers through an elevator, it can operate flexibly in three-dimensional space.

3: Enhanced Warehouse Performance

Effectively increases the speed, storage density, accuracy, and throughput of warehouses, factories, or distribution centers.

Products Parameters：

Vehicle Model	Two way single extension	Two way double extension
Overall dimensions	L1056W780H305mm	L1056W1020H305mm
Operating weight	70kg	75kg
maximum payload	50kg	50kg
X-axis maximum speed	5m/s	5m/s
X-axis maximum acceleration	2m/s²	2m/s²
Maximum speed of telescopic fork	1m/s	1m/s
maximum cargo size	L640*W420mm	L600*W420mm
Minimum cargo size	L300*W300mm	L300*W300mm
Minimum bin height	50mm	50mm
Communication method	WIFI	WIFI
Walking positioning accuracy	±2mm	±2mm
Travel control mode	closed loop servo-control system	closed loop servo-control system
Power supply method	Battery/supercapacitor	Battery/supercapacitor
Supply Voltage	48V	48V
Charging and discharging times	＞500 thousand	＞500 thousand
Operation mode	Automatic mode/Manual mode	Automatic mode/Manual mode
Charging method	Automatic online charging	Automatic online charging
Charging ambient temperature	-25℃~0℃ (low temperature) /0℃~50℃ (normal))	-25℃~0℃ (low temperature) /0℃~50℃ (normal))
Operating ambient temperature	-25℃~0℃ (low temperature) /0℃~50℃ (normal))	-25℃~0℃ (low temperature) /0℃~50℃ (normal))
Storage environment humidity	20%-90%	20%-90%
