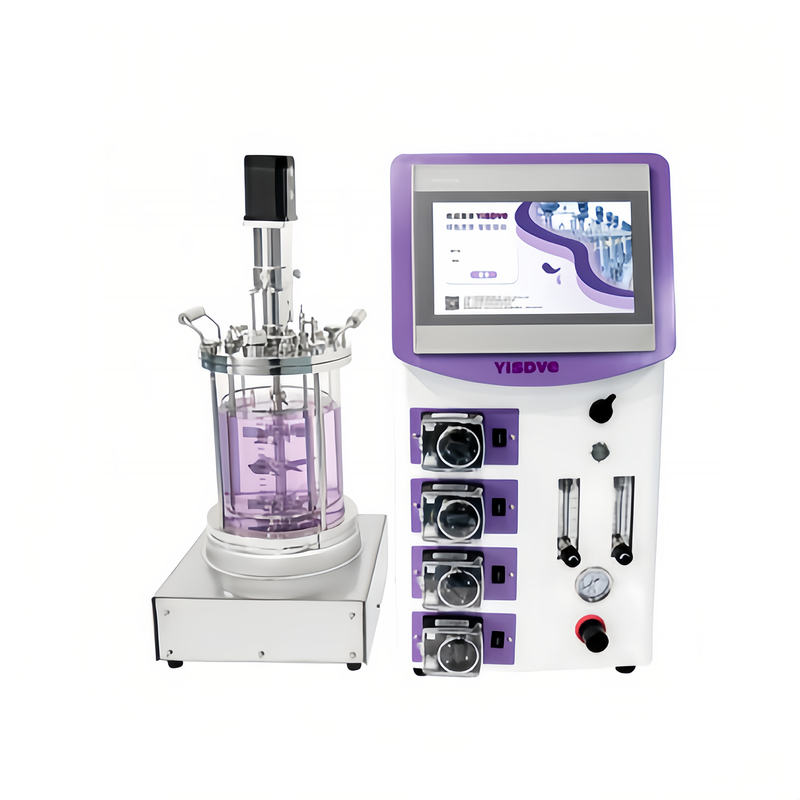

YSD-SE Series Glass Bioreactors

The YSD-SE series glass bioreactors are cost-effective, stable-performance units designed for scientific research and pilot-scale process development. Featuring intelligent high-precision control and a modular, customizable design, they offer convenient and efficient operation for various applications such as fermentation and cell culture.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Borosilicate + 316L stainless steel for excellent chemical resistance

2: High-accuracy temperature (±0.1°C), pH (±0.02), and DO (±0.1%) control

3: Flexible feeding system with multi-channel and intelligent linkage

4: Optional impellers for diverse biological processes

5: Modular air and condensate system to suit complex fermentation needs

6: Defoaming sensor supports both manual and automatic control

7: Expandable and customizable for lab-to-pilot scale applications

Scope of Application:

Biopharmaceuticals、Bacterial Fermentation、Cell Culture

Technical Parameter

Item	Specification
Tank Material	High borosilicate glass + 316L stainless steel (product-contact parts)
Cask Specifications	1L / 3L / 5L / 7L / 10L, max filling coefficient 70–75%
Sterilization Method	In-situ sterilization or autoclave
Stirring Paddle	Six flat leaves / four oblique leaves / six oblique leaves/ six arrow leaves/three oblique leaves , etc.
Stirring Method	Top mechanical agitation
Stirring Speed	0–1000 rpm, control accuracy ±1 rpm
Temperature Control	Display range 0–150°C, accuracy ±0.1°C
PH Control	Fully automatic, accuracy ±0.02
DO Control	Range 0–150%, accuracy ±0.1%
Defoaming Control	Sensitivity 100–100000, manual/intelligent control to add defoamer
Material Control	Manual replenishment, linear replenishment, intermittent replenishment,exponential replenishment, pH-related control, DO linkage control, duty cyclecontrol, sequential control, stepwise control, etc.
Mode of Ventilation	Deep sparger ventilation or surface ventilation
Ventilation Control	Rotameter manual control or intelligent flowmeter automatic control
Exhaust Condensation	Adaptation
Control Cabinets	Carbon steel lacquered or 304 stainless steel brushed housing
