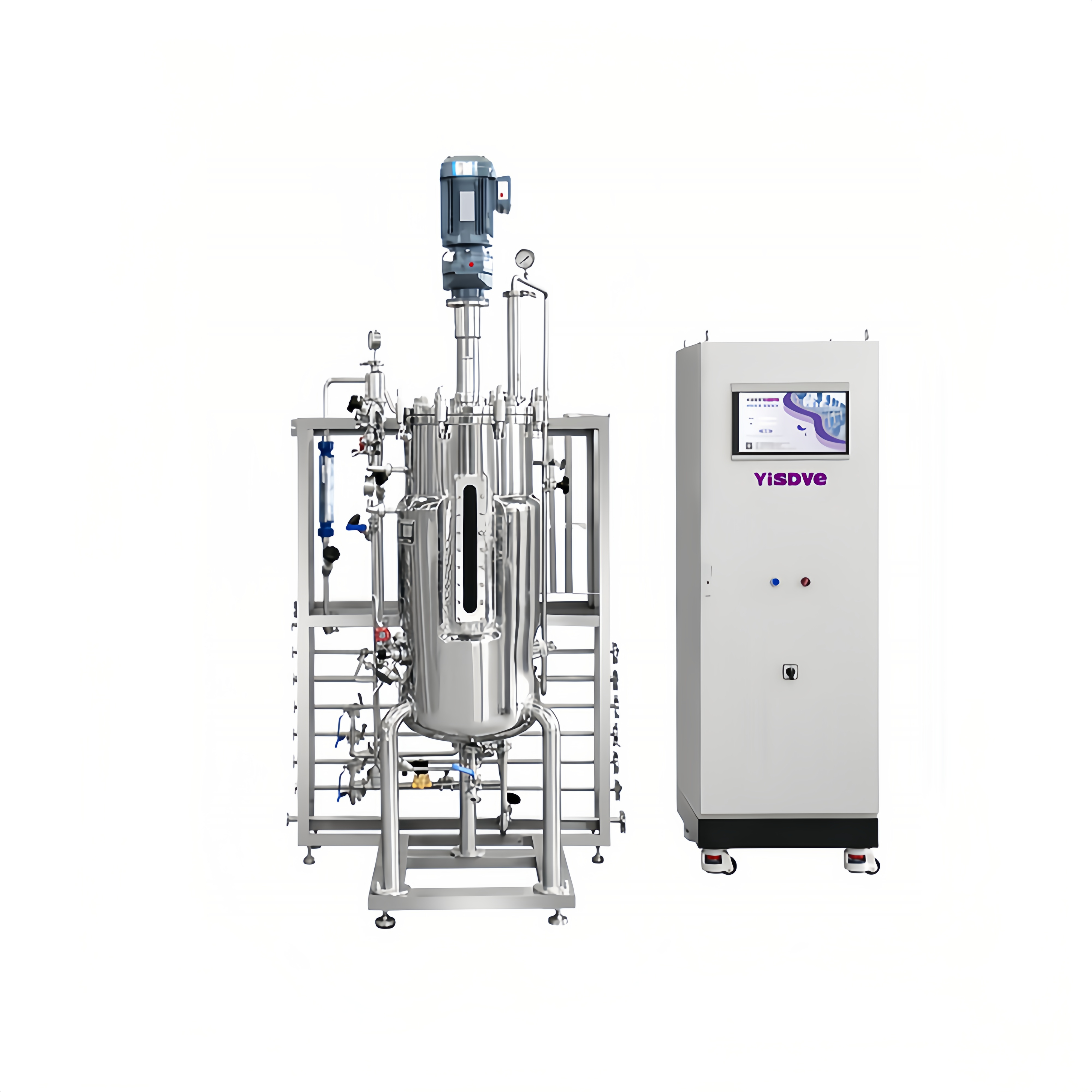

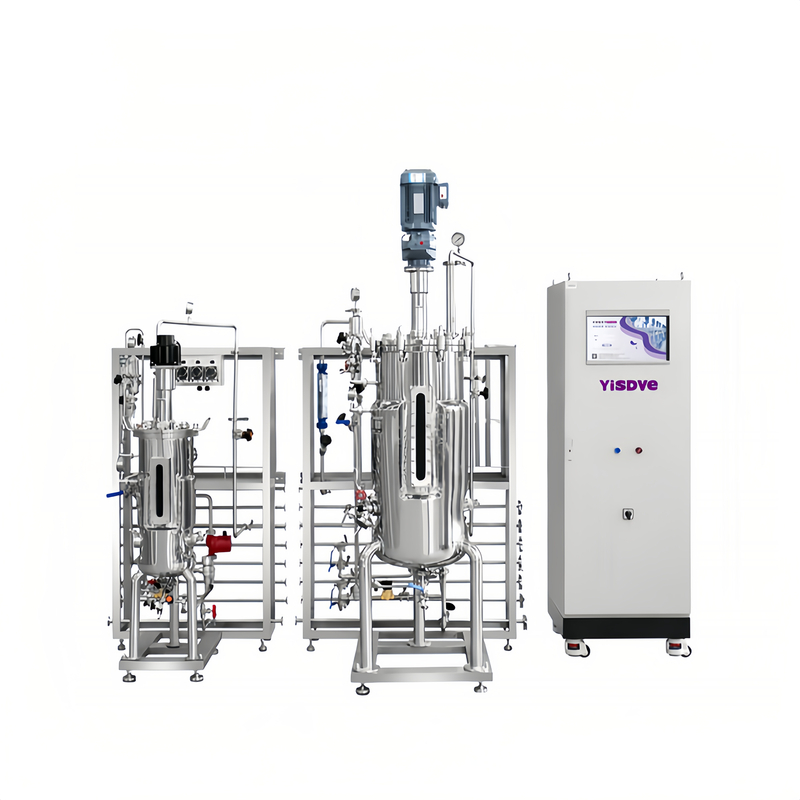

YSD-SE Series Stainless Steel Fermentation System

The YSD-SE series stainless steel fermentation tanks are designed to meet scale-up and production requirements. Tank capacities range from 10L to 50,000L. The system is equipped with automatic sterilization, tank pressure regulation, and lid lifting functions to reduce manual workload and enhance process efficiency. It is widely used in biopharmaceutical, cosmetics, and food & beverage industries.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Available in 10L–50,000L volumes for flexible production scaling

2: In-situ automatic sterilization ensures hygiene and safety

3: Automatic tank pressure and lid lifting reduce manual effort

4: Built with durable SUS316L stainless steel for sanitary compliance

5: Ideal for pilot scale and continuous production; GMP compatible

6: Modular design for easy maintenance and future expansion

7: Customizable options for jacket type, agitation, and control

8: Compatible with automation systems to enhance process efficiency

Scope of Application:

Biopharmaceuticals、Cosmetics、Food & Drinks

Technical Parameter

Item	Specification
Tank Material	The parts in direct contact with materials are made of 3l6L stainless steel, while the remaining parts are made of 304 stainless steel
Cask Specifications	5L-50000L,maximum loading coefficient 70-75%
Sterilization Method	In-line steam sterilization
Stirring Paddle	Six flat leaves /four oblique leaves /six oblique leaves / six arrow leaves/three oblique leaves, etc.
Stirring Method	Top mechanical agitation
Speed of agitator	Depending on the volume of the tank, the speed is different
Temperature Control	Display range 0–150°C, accuracy ±0.1°C
PH Control	Fully automatic, accuracy ±0.02
DO Control	Range 0–150%, accuracy ±0.1%
Defoaming Control	Sensitivity 100–100000, manual/intelligent control to add defoamer
Material Control	Manual replenishment, linear replenishment, intermittent replenishment,exponential replenishment, pH-related control, DO linkage control, duty cyclecontrol, sequential control, stepwise control, etc.
Mode of Ventilation	Deep sparger ventilation or surface ventilation
Ventilation Control	Rotameter manual control or intelligent flowmeter automatic control
Exhaust Condensation	Adaptation
Control Cabinets	Carbon steel lacquered or 304 stainless steel brushed housing
