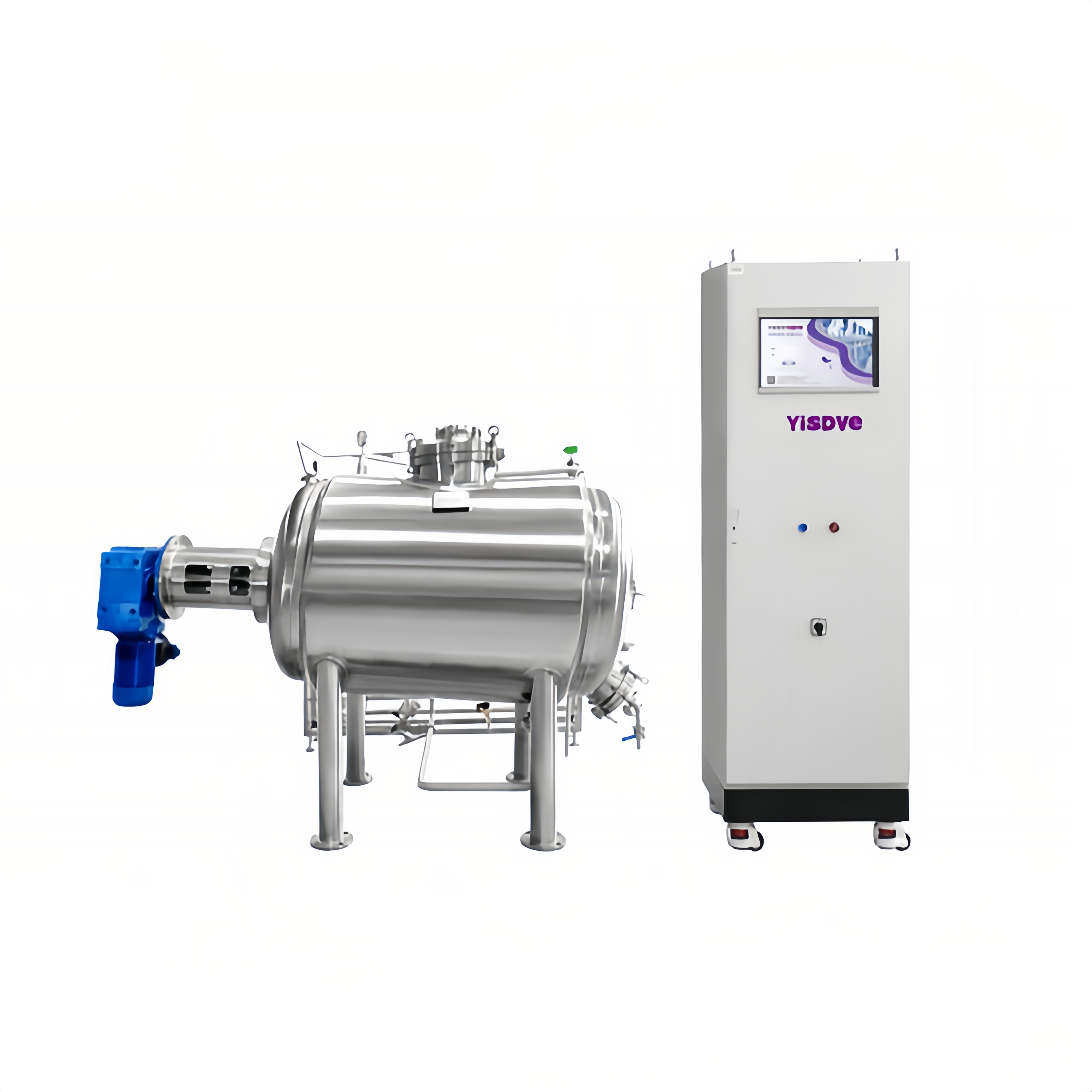

YSD-SE Series Solid Fermenters

The YSD-SE series solid fermenters are specially designed for solid and semi-solid substrate fermentation. Ideal for agricultural feed, additives production, and organic waste utilization. The system provides temperature and humidity control, robust structure, and efficient material mixing for diverse microbial needs.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Designed for solid and semi-solid substrate fermentation

2: Integrated temperature and humidity control for stable conditions

3: Equipped with strong paddle or screw mixing for even distribution

4: Supports automatic feeding and discharge for continuous operation

5: Durable tank materials (stainless steel or composite), corrosion resistant

6: Customizable volume and structure to meet different production scales

7: Supports data logging and remote monitoring for R&D and traceability

8: Applicable to agriculture, environmental protection, and bioengineering

Scope of Application:

Agricultural Feed、Additives、Waste Management

Technical Parameter

Item	Specification
Tank Material	The parts in direct contact with materials are made of 316L stainless steel, while the remaining parts are made of 304 stainless steel
Cask Specifications	5L-50000L,maximum loading coefficient 20-60%
Sterilization Method	Steam-in-place sterilization
Stirring Paddle	Propeller, serew propeller, wall scraper paddle
Stirring Method	Mechanical agitation
Stirring speed	Depending on the volume of the tank, the speed is different
Temperature Control	Display range 0–150°C, accuracy ±0.1°C
Humidity Control	0-100%
Mode of Ventilation	The bottom of the material is ventilated
Ventilation Control	Rotameter manual control or intelligent flowmeter automatic control
Exhaust Condensation	Adaptation
Control Cabinets	Carbon steel lacquered or 304 stainless steel brushed housing
